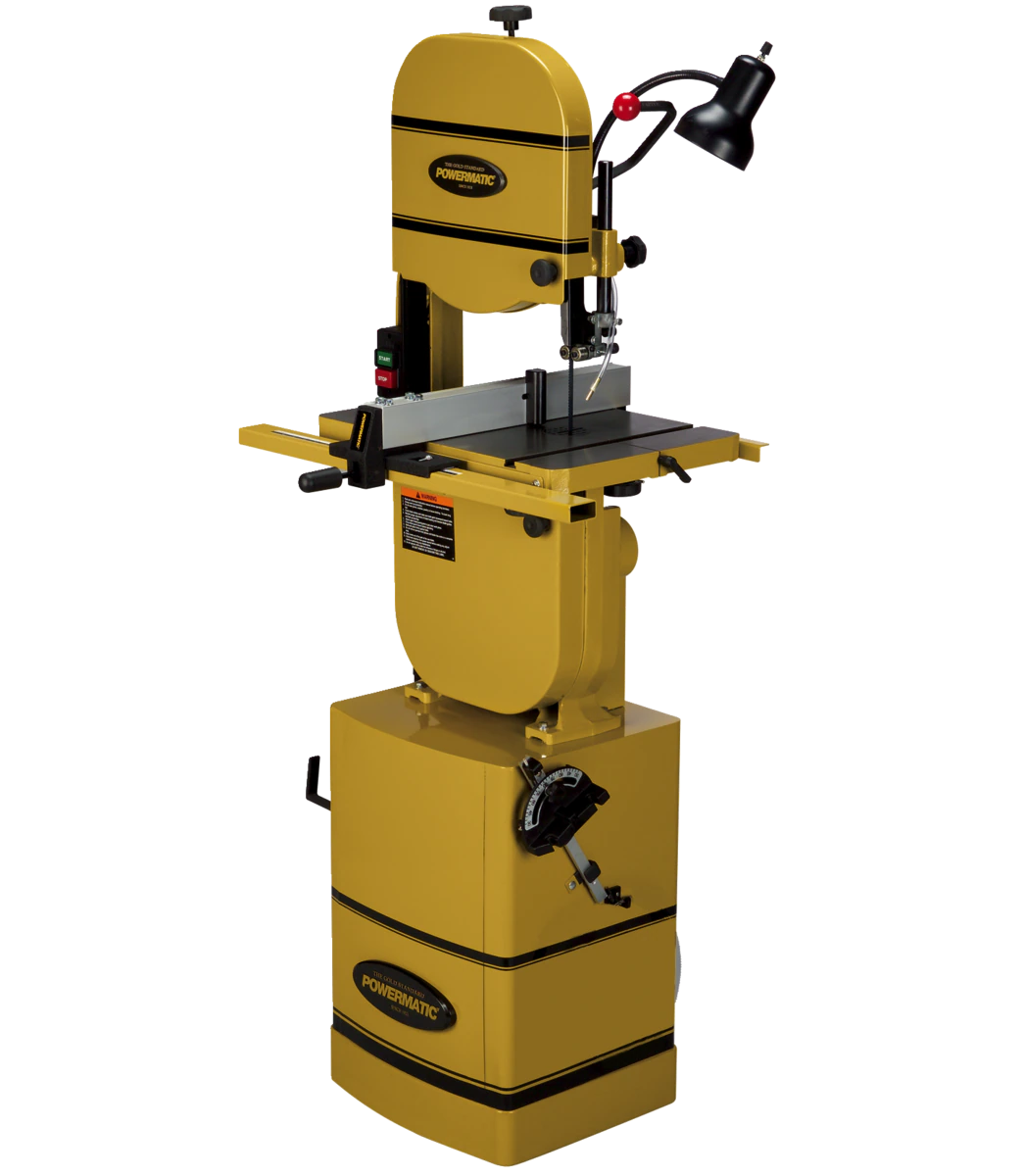

PWBS-14CS 14″ Bandsaw with Stand and Riser Block

PWBS-14CS 14" Bandsaw with Stand and Riser Block

PWBS-14CS 14″ Bandsaw with Stand and Riser Block

$1,799.99

In stock!

Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15″ x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″. A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6″ under guide capacity with 13-1/2″ frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

SKU: PM9-1791216K Categories: , , Tag:

• Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
• Upper and lower dual ball bearing guides for accurate cuts
• CARTER™ quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
• Chip blower ensures a clean, visible cut line
• Exclusively designed, quick-release precision T-square style rip fence with 4″ resaw attachment
• 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
• Easy to read tensioning gauge settings indicated in “blade width” increments
• Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
• Rigid one-piece welded stand requires no assembly
• Includes 6″ riser block

Mobile Base Sold Separately



machine specs

Band Saw Size/Wheel Diameter (in) 14
Band Saw Size/Wheel Diameter (ln.) 14
Cutting Capacity Width (ln.) 13-1/2
Cutting Capacity Height (ln.) 6 (12 w/ Riser Block)
Blade Length (in) 93-1/2
Blade Length (ln.) 93-1/2
Minimum Saw Blade Width (in) 1/8
Minimum Saw Blade Width (ln) 1/8
Maximum Saw Blade Width (in) 3/4
Maximum Saw Blade Width (ln.) 3/4
Blade Speed (SFPM) 3000
Table Size (L x W) (In.) 15 x 20-1/2
Table Height from Floor (In.) 44
Table Tilt (Deg.) 10 Left, 45 Right
Dust Port Outside Diameter (in) 4
Dust Port Outside Diameter (ln.) 4
Dust Collection Minimum CFM Required (CFM) 600
Motor Power (HP) 1.5
Motor Phase 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Stand Type Floor
