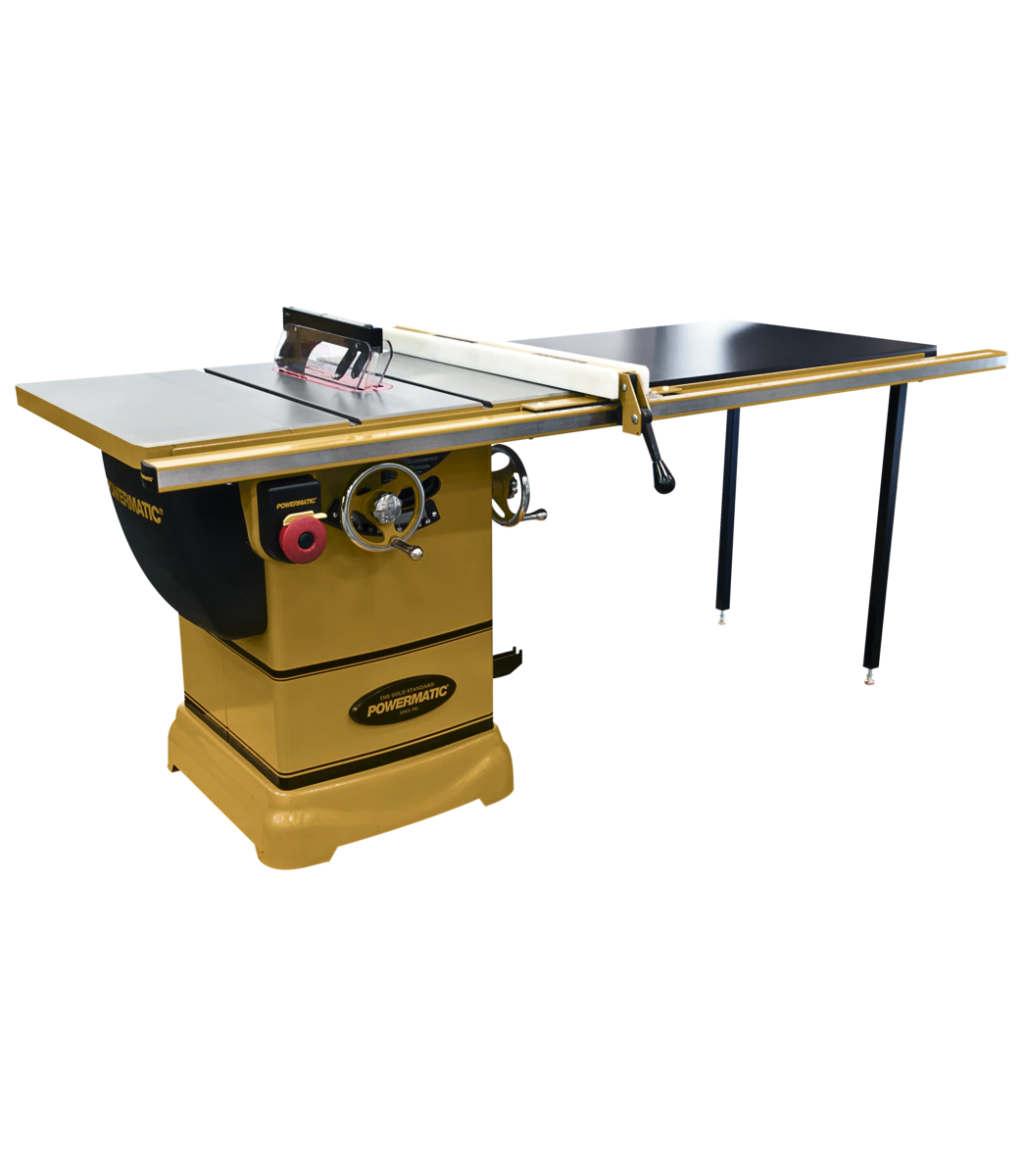

Powermatic PM1000, 1-3/4HP 1PH Table Saw, w/ 52″ Accu-Fence System

Powermatic PM1000, 1-3/4HP 1PH Table Saw, w/ 52" Accu-Fence System

Powermatic PM1000, 1-3/4HP 1PH Table Saw, w/ 52″ Accu-Fence System

$2,999.99

In stock!

Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we’re proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.

SKU: PM9-1791001K Categories: , , Tags: , , , , , , ,

• Conveniently located hands free power switch
• Precision ground cast iron work surface features a beveled edge for smoother operation
• Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
• Exclusive AccuFence provides rigidity and precision
• The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
• Requires only 115V connection for easy installation
• The poly-V belt drive system reduces vibration and maximizes efficiency
• A blade surround and collection hose provide an unobstructed path, maximizing dust collection
• Arbor lock allows for one handed blade changes with minimal tools
• Ergonomically designed 7” handwheels provide momentum – making blade height and bevel adjustments easy

machine specs

Style (Type) Cabinet
Blade Diameter (In.) 10
Arbor Diameter (In.) 5/8
Arbor Speed (RPM) 4200
Maximum Depth of Cut at 90 Degrees (In.) 3-1/8
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
Maximum Diameter of Dado (In.) 8
Maximum Width of Dado (In.) 13/16
Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
Maximum Rip Right of Blade (In.) 52
Maximum Rip Left of Blade (In.) 12
Table Type Cast Iron
Table Height from Floor (In.) 34-1/4
Table Size (In.) 20 x 27
Table Size with Extensions (In.) 40 x 27
Table Size with Full Extensions (In.) 75-3/8 x 27
Table T-Slot (In.) 3/4 x 3/8
Dust Collection Minimum CFM Required (CFM) 350
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1-3/4
Motor Phase 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Current (Amps) 15/7.5
Recommended Circuit Size (Amps.) 20
Weight (Lbs.) 393.8
