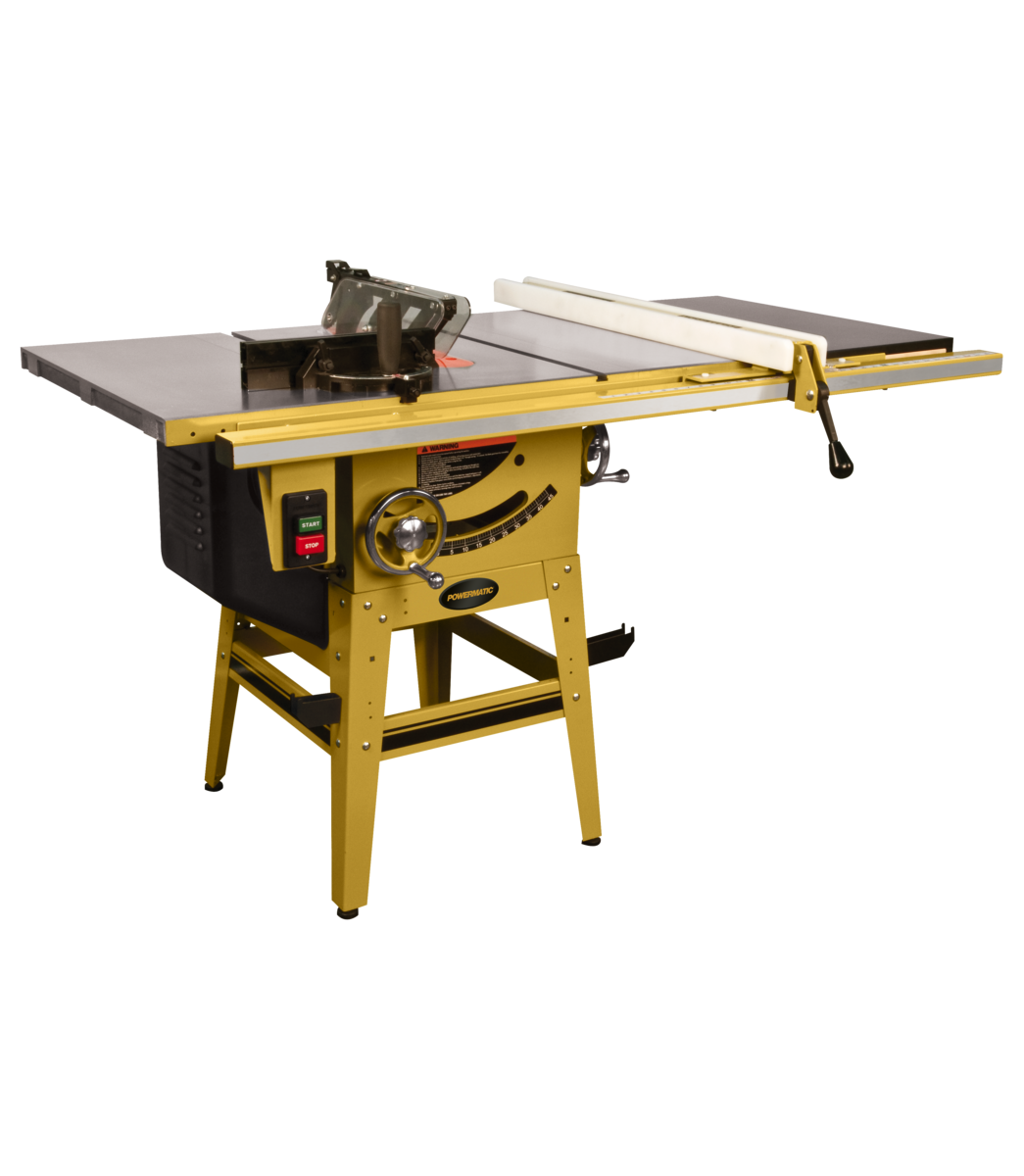

Powermatic 64B TABLE SAW, 1.75HP 115/230V, 30″ FENCE WITH RIVING KNIFE

Powermatic 64B TABLE SAW, 1.75HP 115/230V, 30″ FENCE WITH RIVING KNIFE


In stock!

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.

• Blade guard and riving knife have quick release for tool-less mounting and removal
• Accu-Fence locks to rail without play for increased safety and precision
• Riving knife maintains close blade proximity to reduce chance of kickback
• Cast iron trunnion ensures smooth blade positioning
• Micro-adjust miter gauge with extension plate offers wider crosscut support
• Precision ground cast iron work surface features a beveled edge for smoother operation
• Built-in dust port increases dust collection efficiency
• Chrome trimmed handwheels are ergonomically designedChrome trimmed handwheels are ergonomically designed

machine specs

Style (Type) Contractor
Blade Diameter (In.) 10
Arbor Diameter (In.) 5/8
Arbor Speed (RPM) 3,800
Maximum Depth of Cut at 90 Degrees (In.) 3-1/8
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
Maximum Diameter of Dado (In.) 8
Maximum Width of Dado (In.) 13/16
Table in Front of Saw Blade at Maximum Depth of Cut (In.) 11-1/2
Maximum Rip Right of Blade (In.) 30
Maximum Rip Left of Blade (In.) 12
Table Type cast iron
Table Height from Floor (In.) 36
Table Size (In.) 20-1/8 x 27
Table Size with Extensions (In.) 44-1/4 x 27
Table Size with Full Extensions (In.) 71-1/4 x 27
Table T-Slot (In.) 3/4 x 3/8
Dust Collection Minimum CFM Required (CFM) 350
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1-3/4
Motor Phase 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Current (Amps) 15/7.5
Recommended Circuit Size (Amps.) 20
