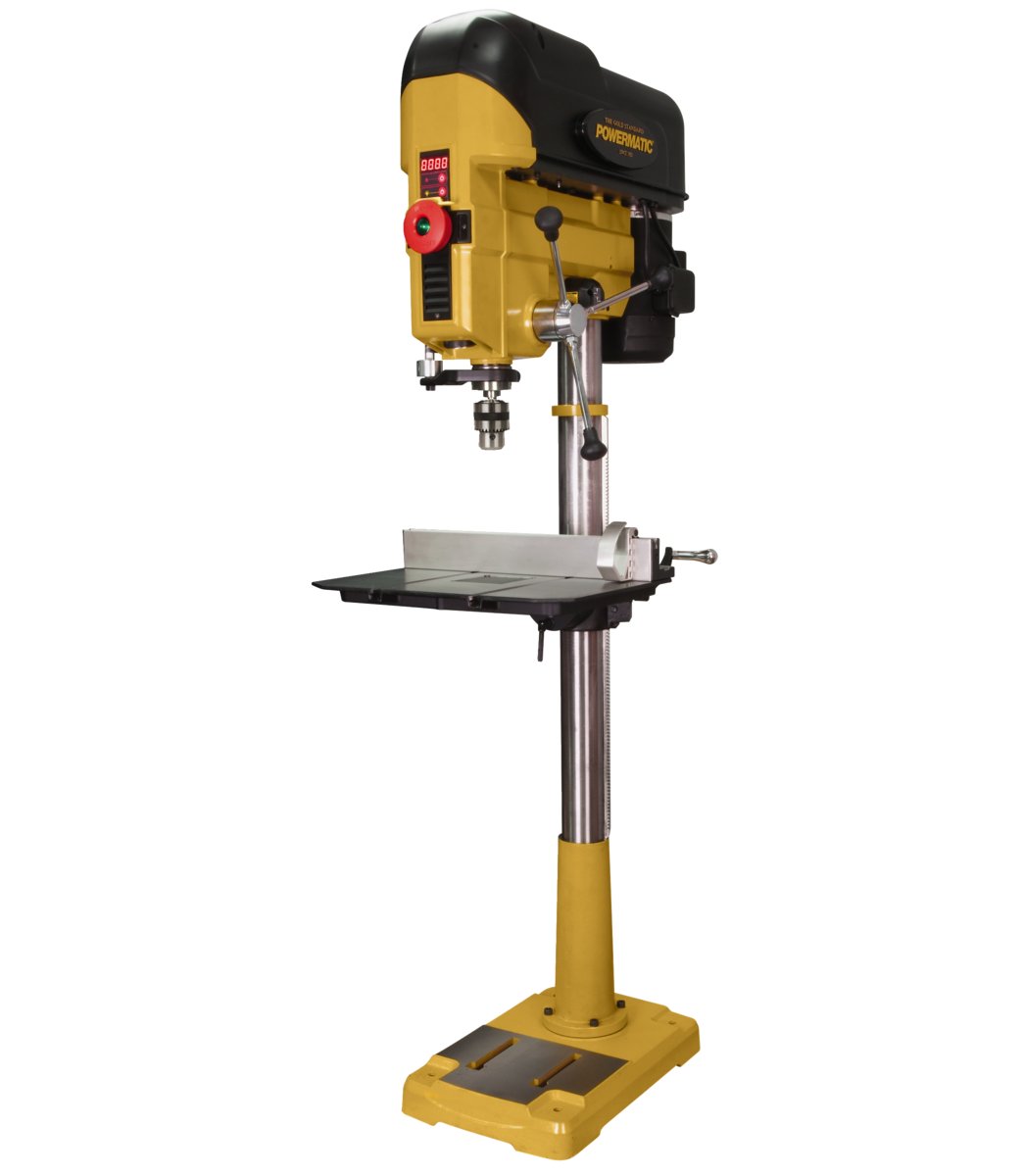

PM2800B DRILL PRESS, 1HP 1PH 115/230V

PM2800B DRILL PRESS, 1HP 1PH 115/230V


In stock!

At Powermatic, we have a woodworker’s intuition which drives our design process. We look for every opportunity to raise the workshop experience to new levels of performance and functionality. So when we set out to redefine what it means to use a Powermatic Drill Press, we wanted it to be as easy, and as intuitive as possible; to allow you to focus your creative energy on the tasks that make woodworking so rewarding. The PM2800B is the culmination of our efforts. The PM2800B brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you’ll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.

• Mechanical variable speed allows for full range of speeds with no belt changes
• 6” of quill travel with one revolution of the handle
• Fence system adjustable for a perfect 90 degree relationship to the table and for rapid alignment of stock
• A digital RPM readout allows user to optimize the spindle speed to the application
• Work table can be rotated to a full 90 degree position
• Oversize cast iron base for added stability
• Laser guides provide an accurate indication for tool point
• Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
• Two independently adjustable LED worklights eliminates shadows
• Includes 5/8″ keyed chuck

Machine Specs

Style (Type) Floor
Swing (In.) 18
Spindle Travel (In.) 6
Number of Spindle Speeds Variable
Spindle Taper MT-2/JT-3
Spindle Distance to Table (Max.) (In.) 26-5/8
Spindle Distance to Base 44-3/4
Table Size (L x W) (In.) 20-1/4 x 14
Table Tilt (Deg.) 90 Left, 90 Right
Fence Size (L x H) (In.) 20 x 2-3/4
Chuck Distance to Base (In.) 40-1/2
Chuck Distance to Table (In.) 22-3/8
Chuck Size (In.) 5/8
Column Diameter (In.) 3-1/8
Base Size (In.) 13-1/2 x 20-1/2
Motor Power (HP) 1
Motor Phase 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Current (Amps) 15/7.5
