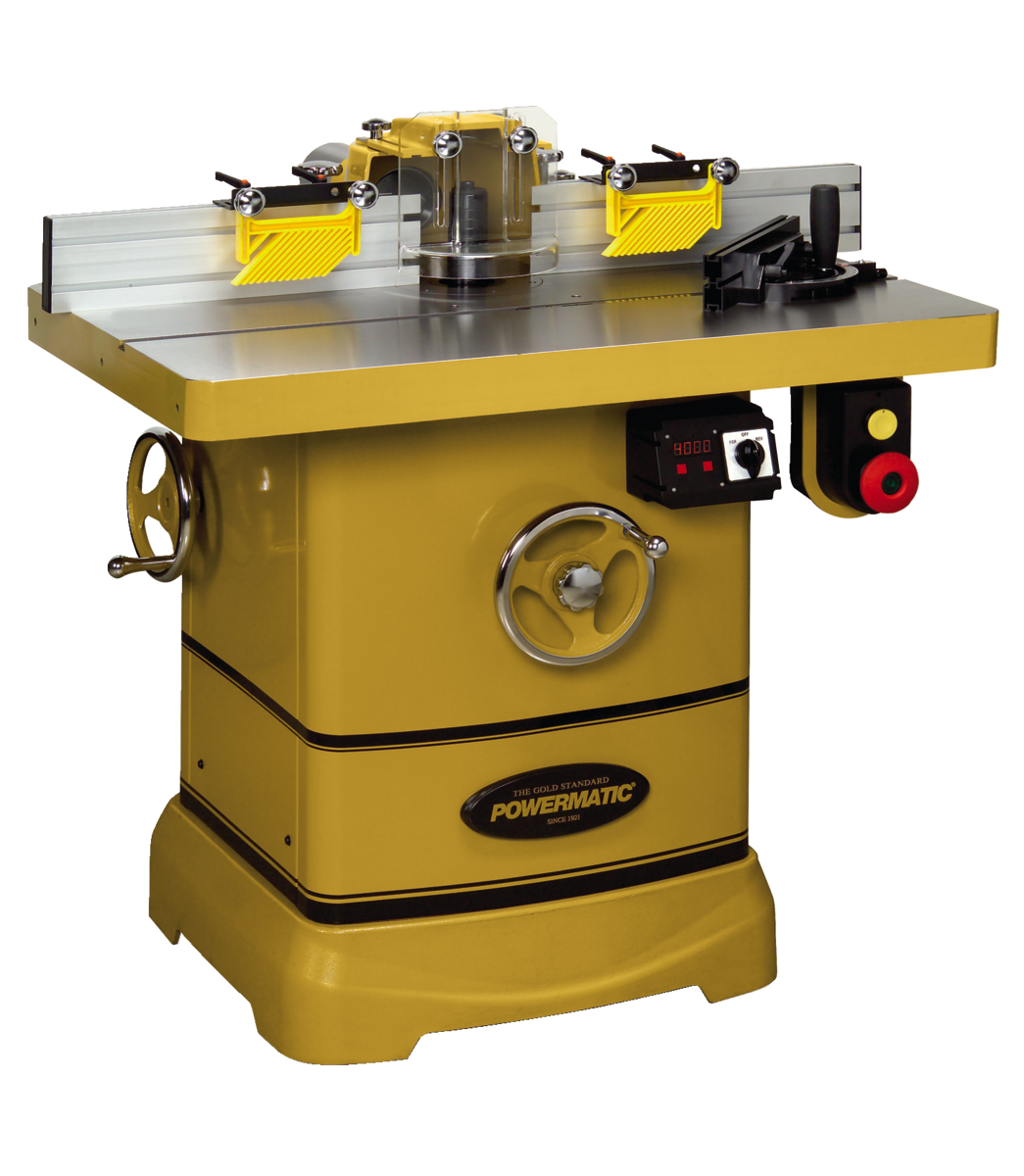

PM2700 Shaper, 5HP, 3PH with DRO and Casters

Sale!

PM2700 Shaper, 5HP, 3PH with DRO and Casters

Original price was: $4,899.99.Current price is: $4,409.99.

In stock!

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30″ x 40″ precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001″ in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

• Digital readout gives the use exact spindle height and allows for .001″ adjustments
• Micro adjust control knobs allow for precision adjustment for the fence
• Integrated casters can be raised and lowered to mobilize shaper
• Heavy duty cast iron base
• Two speed reversible spindle speeds
• Independently adjustable fence sides
• Heavy duty 30″ x 40″ precision ground tabletop for smooth stock feeding
• Superior clear cutter guard promotes safety, allows observation of the entire cut
• Table predrilled and tapped for feeder mounting in two locations
• Includes 3/4″ and 1-1/4″ spindles

machine specs

Style (Type) Shaper
Spindle Speed (RPM) 7,500, 10,000
Maximum Spindle Diameter (In.) 1-1/4
Spindle Size Under Nut (In.) 3/4″ Spindle (3-1/2), 1″ Spindle (4-7/8), 1-1/4″ Spindle
(5-1/8)
Spindle Travel (In.) 4
Reversible Yes
Table Opening Diameter (In.) 7.33
Table Inserts (In.) 2-1/2 x 4-1/8 x 5-3/4
Table Size (In.) 40 x 30
Table Height from Floor (In.) 35-1/2
Fence Size (L x H) (In.) 18-3/4 x 4-7/8
Dust Port Outside Diameter (In.) 4
Dust Collection Minimum CFM Required (CFM) 600
Digital Readouts Spindle Height
Electrical Controls Yes
Motor Power (HP) 5
Motor Phase 3
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Wiring Remarks Requires 460V Magnetic Switch
Motor Current (Amps) 13/6.5
Recommended Circuit Size (Amps.) 20/10
