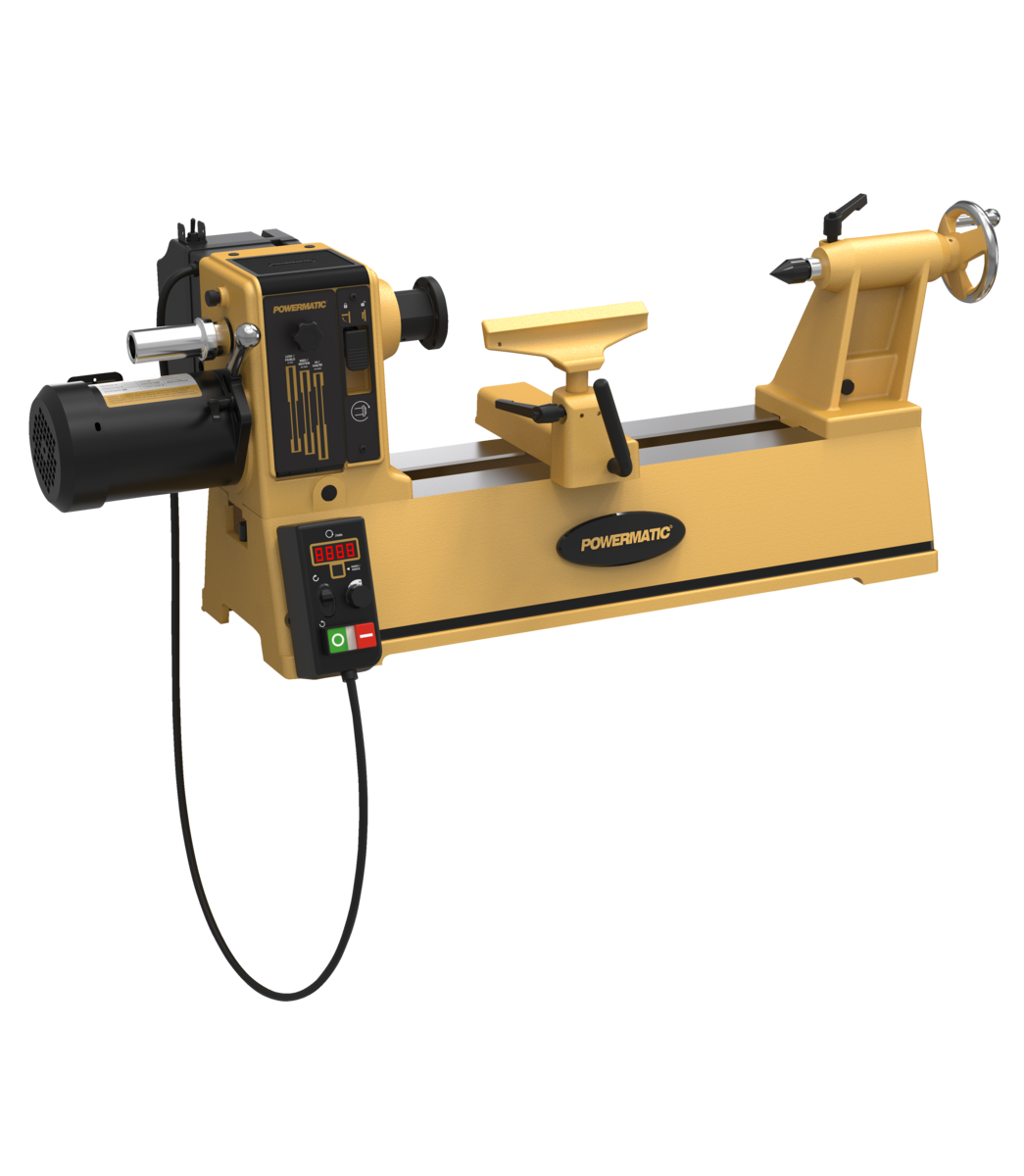

Powermatic PM2014, Powermatic 2014 Lathe

Powermatic PM2014, Powermatic 2014 Lathe

$2,399.99

In stock!

For nearly one hundred years Powermatic has been dedicated to woodworkers. As a market leader in woodturning Powermatic is proud to offer the powerful PM2014 model lathe. Only requiring a 115V single phase power source the inverter delivers 1HP, 230V, 3PH performance, giving users maximum speed with minimum input. With a capacity of 14″ swing over bed and 20″ between centers which can be increased with the optional 13″ bed extension. Premium sliding headstock feature allows greater clearance when positioned at the end of the bed for outboard turning.Robust cast iron bed reduces vibration when turning larger and rougher pieces. Digital Indexing and spindle speed readout are clearly visible on the magnetic repositionable control box. The new ergonomic stand adjusts from centerline to floor from 34 inches to 46 inches allowing the PM2014 to be accessible to users of a range of heights.

• Motor only requires a 115 volt single phase input while providing a consistent torque with 1 horse power, 230 volt, and 3 phase output using an inverter.
• Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety
• Twenty four positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process
• Sliding headstock and removable tailstock make outboard turning easy
• Cast iron bed reduces motor vibration for decreased noise and added precision
• Variable speeds from as low 15RPMs to as high as 3600RPMs
• With constant monitoring of the motor the inverter keeps torque consistent.
• Lathe easily disassembles for better portability
• Acme threads on tail stock for smoother operation and longevity
• Includes 8 inch tool rest with 1 inch post

Machine Specs

Specifications
Size : 20 x 14
Style (Type) : Benchtop
Swing Over Bed (In.) : 14-1/4
Swing Over Tool Rest Base (In.) : 10-3/4
Distance Between Centers (In.) : 19-1/4
Headstock Movement : Sliding
Quill Taper : MT2
Spindle Thread (In./TPI) : 1-1/4"/8 TPI
Speed Range : 15-3600
Spindle Taper : MT2
Number of Indexing Positions : 24
Weight (Lbs.) : 183
Outboard Turning : Yes
Motor Power (HP) : 1
Bed Construction : Cast Iron
Motor (HP) : 1
Motor Phase : 1
Motor Voltage (V.) : 230
Overall Dimensions (L x W x H) (In.) : 52 x 24 x 18
Prewired Voltage (V.) : 115
Motor Amps : 3
Shipping Dimensions (L x W x H) (In.) : 33.25 x 18.9 x 22.83
Net Weight (Lbs.) : 183
Gross Weight (Lbs) : 205.7

Brand

Powermatic

Motor

1 HP

Phase

Single Phase

Voltage

115
