PM1900TX-CK1 Dust Collector, 3HP 1PH 230V, 2-Micron Canister Kit

PM1900TX-CK1 Dust Collector, 3HP 1PH 230V, 2-Micron Canister Kit

$1,899.99

In stock!

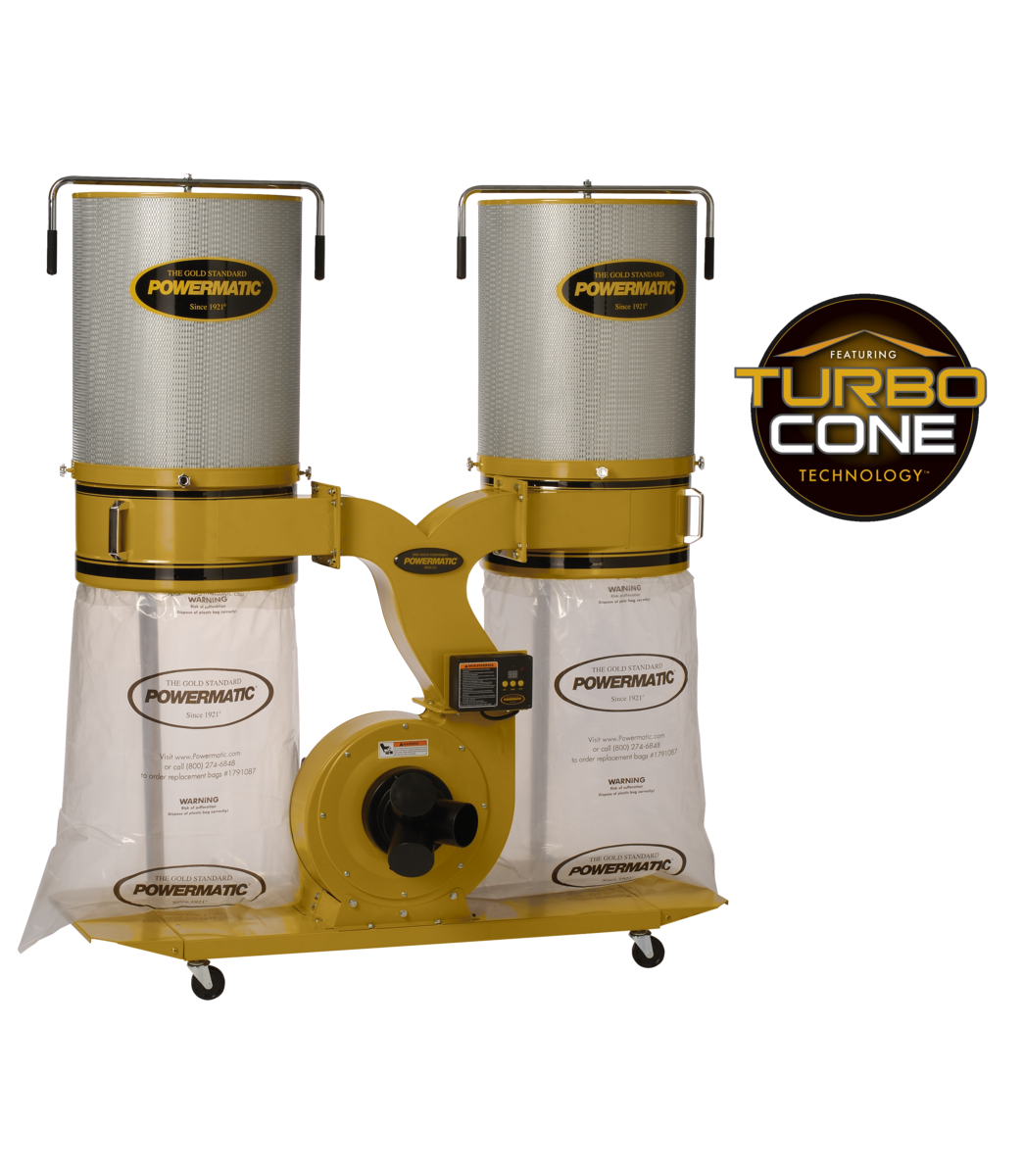

The PM1900 Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

• TurboCone™ improves chip separation and collector bag packing efficiency
• The steel impeller is powered by a 3HP motor for peak performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• The cone eliminates premature filter clogging for sustained performance
• All-metal duct construction for rigidity and improved air flow
• Triple 4” dust ports allow for several hoses to be attached at the same time
• 30-micron filter bags for improved capture of fine dust particles
• Cloth collection bags with view window use a snap ring for rapid installation/removal
• 10 cubic feet collection bag capacity reduces number of bag changes.

Machine Specs

Style (Type) TurboCone
Air Flow @ 4″ (CFM) 236
Air Flow @ 8″ (CFM) 1782
Number of Air Inlets 1(8″) or 3(4″)
Efficiency (Micron) 2
Static Pressure (WC) 12.15
Sound Rating (DB) 86 – 92
Bag Diameter (In.) 20
Collection Bag Capacity (Cu. Ft.) 10
Collection Bag Length (In.) 30
Filter Bag/Canister Length (In.) 26
Impeller Diameter (In.) 14
Impeller Fins 7
Impeller Material Steel
Velocity @ 4″ (CFM) 5200
Velocity @ 8″ (CFM) 5393.7
1-Hose Connection Diameter (In.) 8
3-Hoses Connection Diameter (In.) 4
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230 only
Prewired Voltage (V.) 230
Motor Current (Amps) 15
Recommended Circuit Size (Amps.) 30
