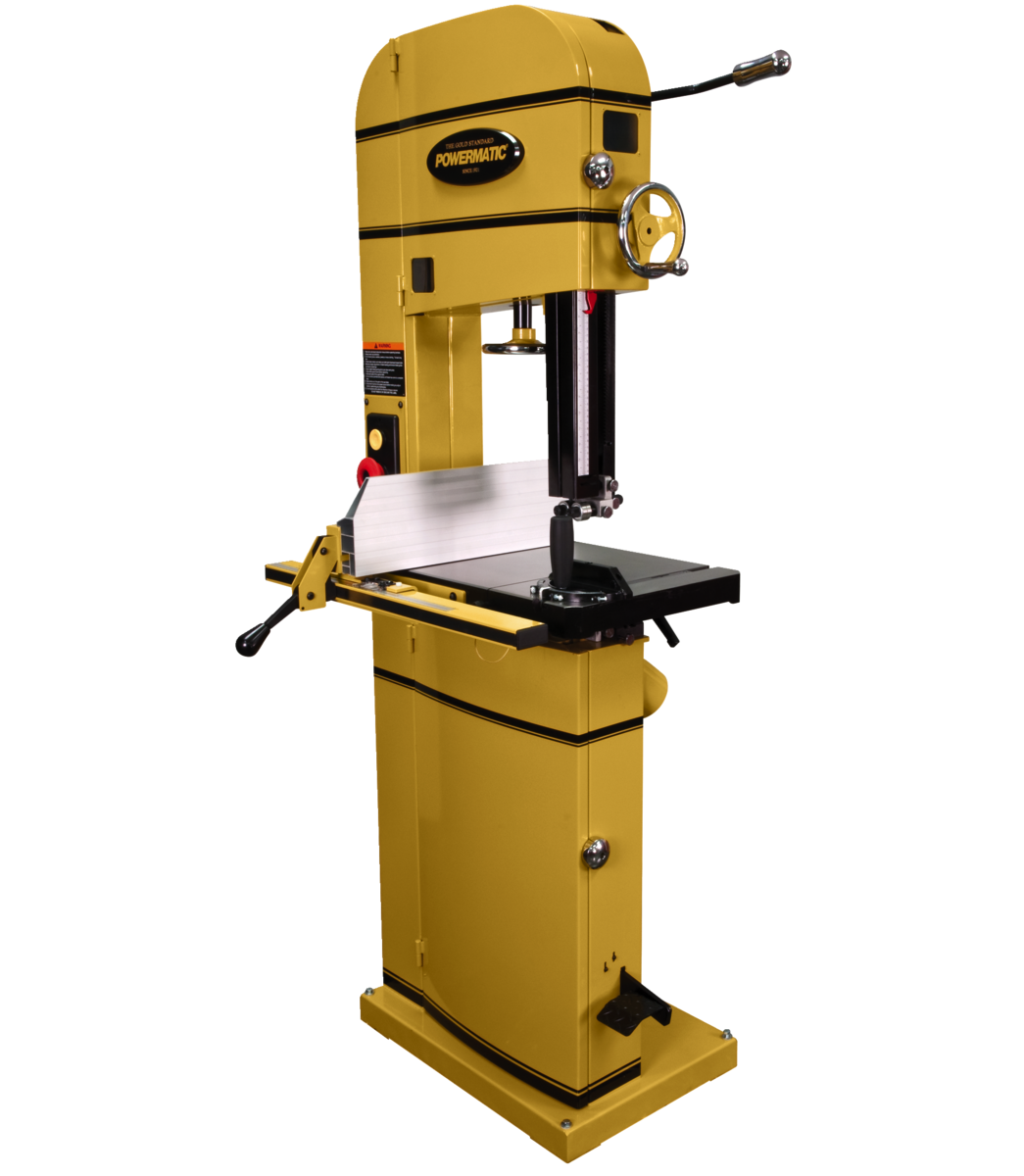

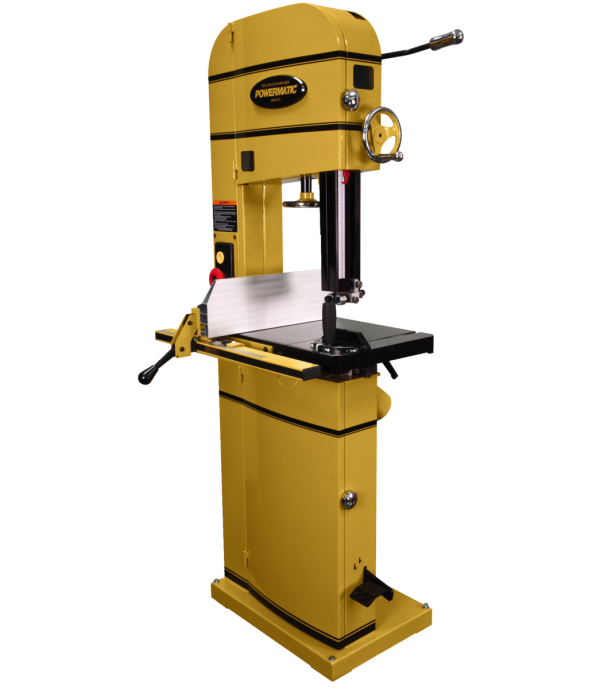

PM1500 Bandsaw, 3HP 1PH 230V

PM1500 Bandsaw, 3HP 1PH 230V


In stock!

The PM1500 packs many of the features traditionally only found on larger bandsaws, and brings them to a new, category-redefining, 15’’ size. As with every product Powermatic builds, the PM1500 pushes the limits of design, innovation, and durability. It truly is The Gold Standard.

SKU: PM9-1791500 Categories: , , Tags: ,

• Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned or released
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
• Oversized side plate can be used in the horizontal or vertical position
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for heavy work pieces
• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
• High end blade guides with tool less adjustment provide stability, increasing cut accuracy
• Foot brake with magnetic switch interrupt provides user with hands free stopping option
• Fence features positive locking cam with pressure adjustment
• Heavy duty upper wheel support and tracking mechanism for smooth operation
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table

Machine Specs

Style (Type) Floor
Band Saw Size/Wheel Diameter (in) 15
Band Saw Size/Wheel Diameter (In.) 15
Cutting Capacity Width (In.) 14-1/2
Cutting Capacity Height (In.) 14
Blade Length (in) 153
Blade Length (In.) 153
Minimum Saw Blade Width (in) 1/8
Minimum Saw Blade Width (In.) 1/8
Maximum Saw Blade Width (ln.) 1
Maximum Saw Blade Width (In.) 1
Blade Speed (SFPM) 3100
Table Size (L x W) (In.) 21-1/2 x 16
Table Height from Floor (In.) 40
Table Tilt (Deg.) 10 Left, 45 Right
Miter Gauge Positive Stops 45, 90
Dust Port Outside Diameter (in) 4
Dust Collection Minimum CFM Required (CFM) 600
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230 only
Prewired Voltage (V.) 230
Motor Current (Amps) 12
Stand Type Floor
