PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit

PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit


In stock!

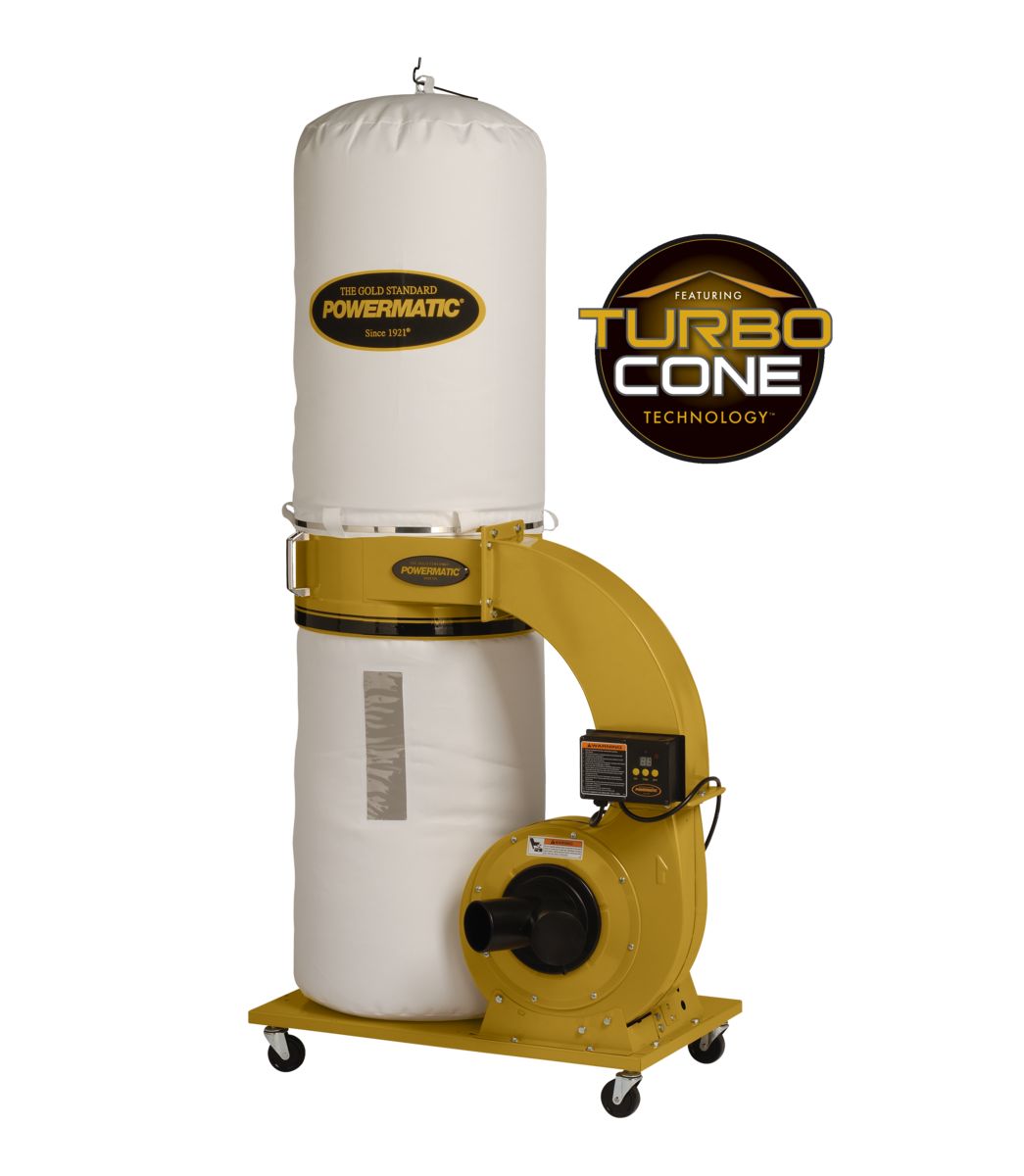

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.

• TurboCone™ improves chip separation and collector bag packing efficiency
• The large steel impeller is powered by a 1-3/4HP motor for peak performance.
• Remote-controlled digital timer can be programmed for up to 99 minutes
• The cone eliminates premature filter clogging for sustained performance
• All-metal duct construction for rigidity and improved air flow
• Dual 4″ dust ports for simultaneous collection from two machines
• Cloth collection bag with view window uses snap ring for rapid installation/removal
• 10 cubic feet capacity collection bag reduces number of bag changes.
• Four swivel casters for easy maneuverability

Machine Specs

Style (Type) TurboCone
Air Flow @ 8″ (CFM) 1300
Number of Air Inlets 1(6″) or 2(4″)
Efficiency (Micron) 30
Static Pressure (WC) 11.31
Sound Rating (DB) 75 – 90
Bag Diameter (In.) 20
Collection Bag Capacity (Cu. Ft.) 10
Collection Bag Length (In.) 30
Filter Bag/Canister Length (In.) 48
Impeller Diameter (In.) 12
Impeller Fins 6
Impeller Material Steel
Velocity @ 6″ (CFM) 5374
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Motor Power (HP) 1-3/4
Motor Phase 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Current (Amps) 15/7.5
Recommended Circuit Size (Amps.) 20/15
