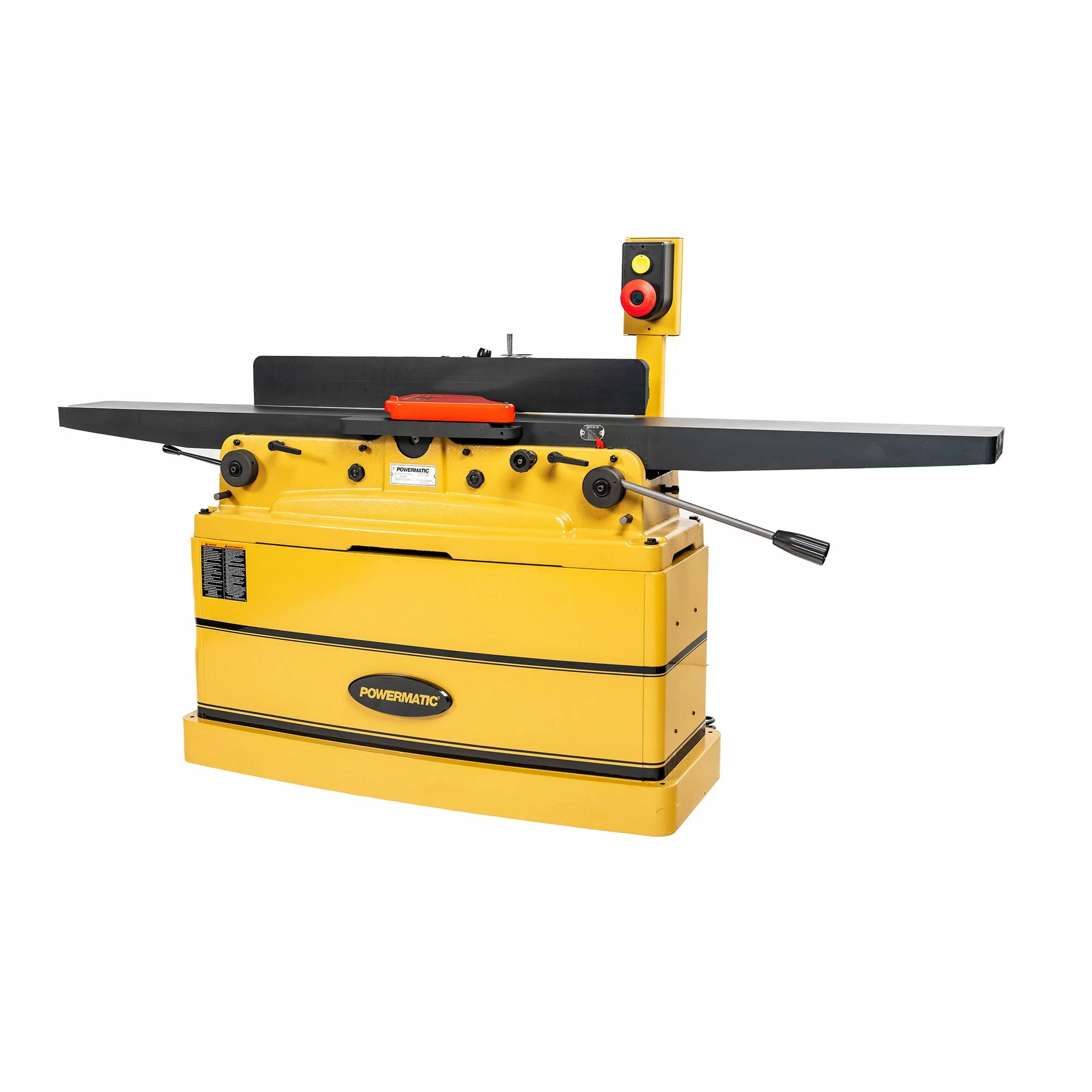

Powermatic ArmorGlide PJ882T Jointer, 2HP, 1PH, 230V Straight Knife

Powermatic ArmorGlide PJ882T Jointer, 2HP, 1PH, 230V Straight Knife


In stock!

Now featuring ArmorGlide Technology that is low friction and rust resistant, the Powermatic PJ882T 8-Inch Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra-long 82-inch bed length for better work support, and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.This design also ensures the table remains perfectly parallel, even after years of tough duty. The 1/8-inch depth limiter control knob gives you quick adjustment ability and safety. A simple twist of the knob will disable this feature. This jointer features a Powermatic controlled chip three-knife cutterhead for a safe, smooth cut every time. The powerful 2-HP motor is totally enclosed in a heavily-constructed steel stand, providing plenty of power for the most demanding jobs.

High-mount switch for operator convenience
• Large 8″ x 82″ precision ground cast iron table surface for heavy-duty work
• Parallelogram design allows for easy and accurate adjustment of tables
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Patented handwheel with worm gear system for precise fence tilting
• Straight knife cutterhead with 3 high speed steel knives create a clean cut

Machine Specs

Cuts Per Minute 21,000
Cutterhead Diameter (In.) 3-1/16
Cutterhead Speed (RPM) 7000.0000
Cutting Capacity (W x D) (In.) 8 x 1/2
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 4
Infeed Table Length (In.) 44
Model Number PJ882T
Motor Amps 9
Motor Power (HP) 2
Motor Voltage (V.) 230
Number of Knives 3
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Rabbeting Capacity (In.) 1/2
Recommended Circuit Size (Amps.) 20
Type of Cutterhead Straight Knife
