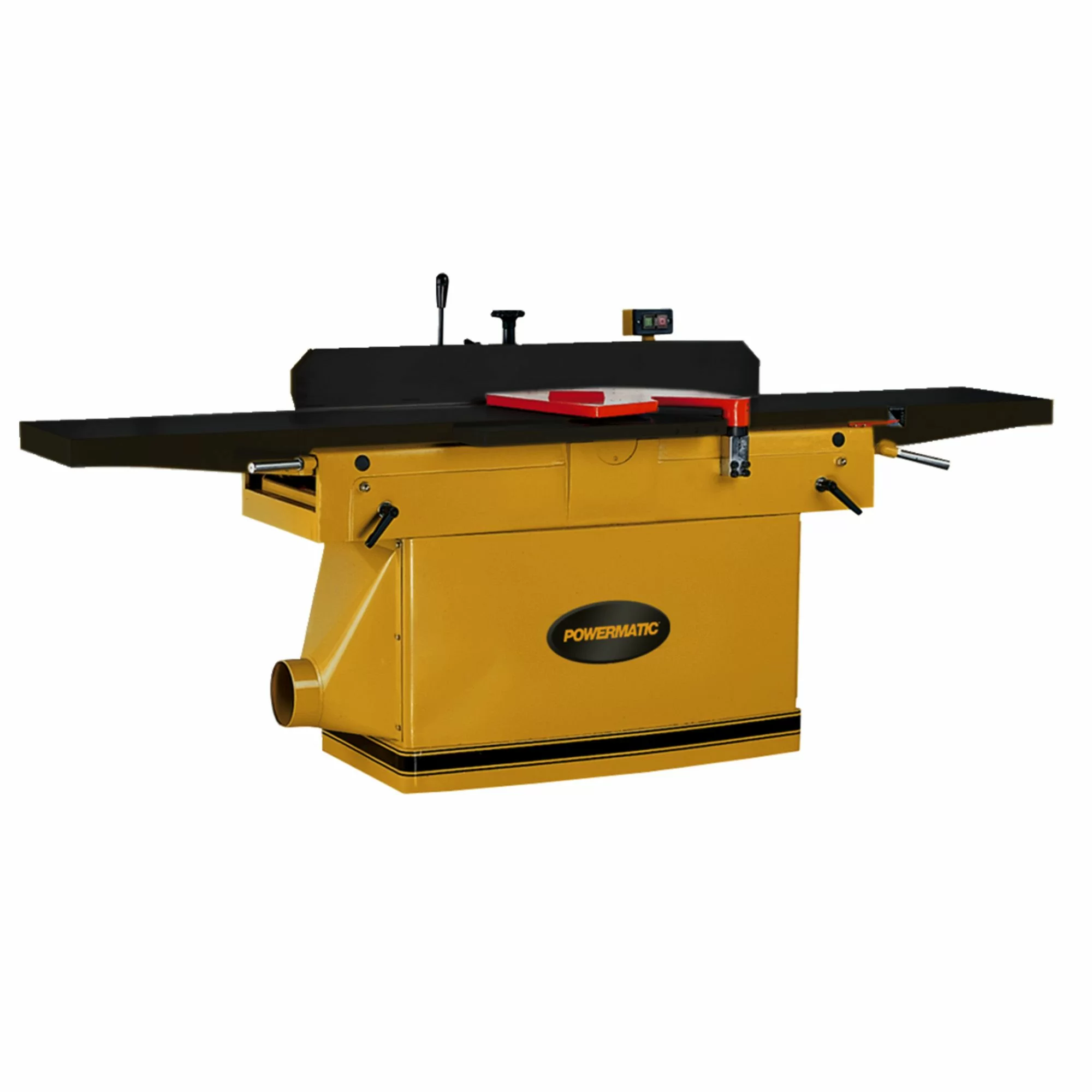

Powermatic ArmorGlide PJ1696T Jointer, 7.5HP, 3PH, 460V Helical Head

Powermatic ArmorGlide PJ1696T Jointer, 7.5HP, 3PH, 460V Helical Head


In stock!

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T, 16-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large, center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set up at 45 degrees in and out, and a positive stop for perfect 90-degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2-HP motor delivers all the power you need for even the biggest jobs.

SKU: PM1-1791283T-4 Categories: , ,

Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
• Full size rabbeting table supports large workpieces for rabbets up to 3/4″ deep
• Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change

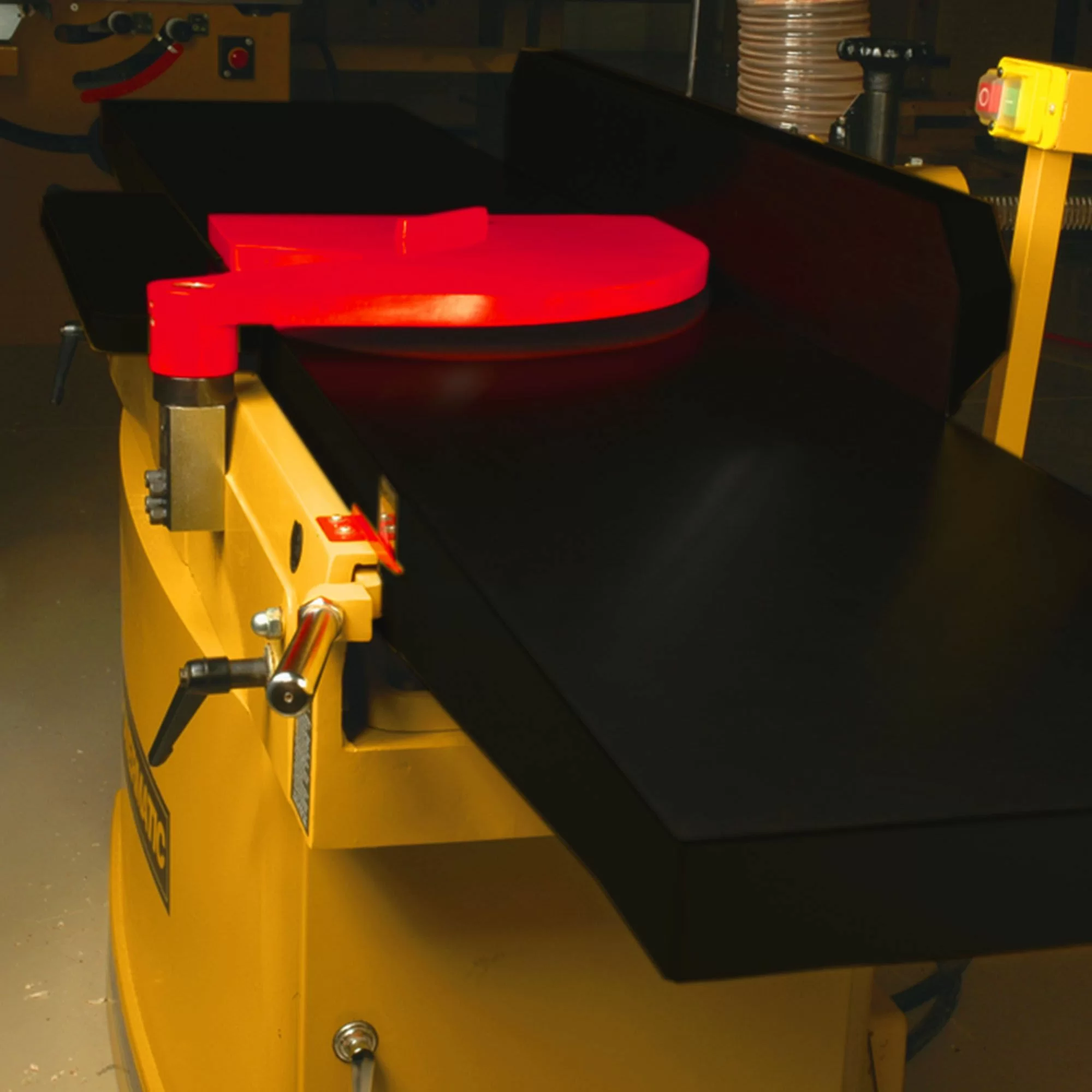

• Large 16″ x 96″ precision ground cast iron table surface for maximum support and fine finish
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
• Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support

Machine Specs

Cuts Per Minute 20,800
Cutterhead Diameter (In.) 4
Cutterhead Speed (RPM) 5200.0000
Cutting Capacity (W x D) (In.) 16 x 3/4
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 6
Infeed Table Length (In.) 47-1/2
Model Number PJ1696T
Motor Power (HP) 7-1/2
Motor Voltage (V.) 460
Number of Knives 58
Prewired Voltage (V.) 460
Prop 65 Cancer and Reproductive Harm
Table Height from Floor (In.) 37-1/2
Type of Cutterhead HELICAL
