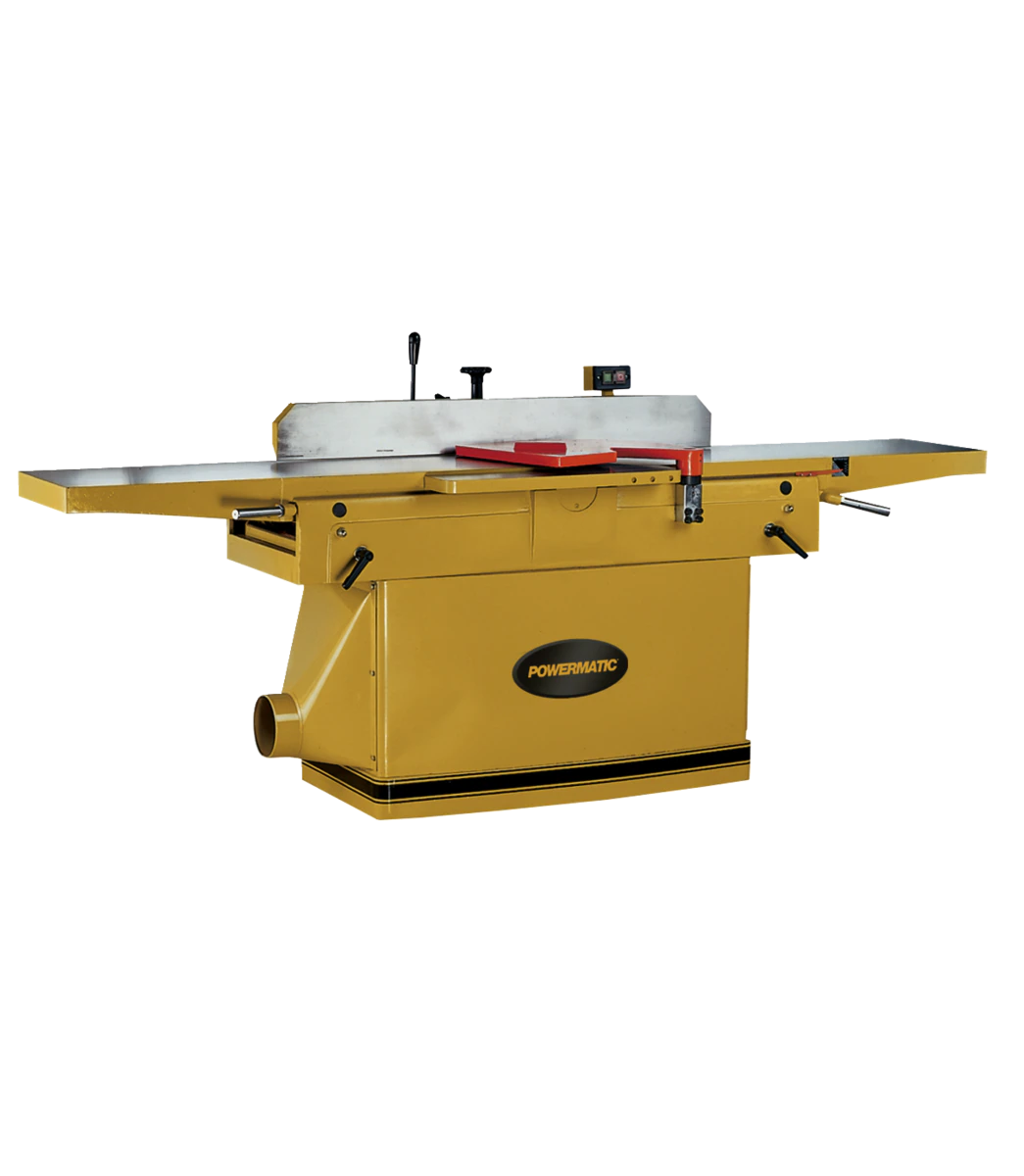

This 16″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.

• Large 16″ x 96″ precision ground cast iron table surface for maximum support and fine finish
• Helical cutterhead with 58 two-sided knife inserts reduces noice, eliminates adjustments and speeds knife change
• Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
• Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
• Full size rabbeting table supports large workpieces for rabbets up to 3/4″ deep

Machine Specs

Type of Cutterhead Helical
Number of Knives 56 Two Sided Inserts, 2 Rabbet
Cuts Per Minute 20,800
Cutterhead Diameter (In.) 4
Cutterhead Speed (RPM) 5,200
Cutting Capacity (W x D) (In.) 16 x 3/4
Table Size (L x W) (In.) 96 x 16
Table Height from Floor (In.) 37-1/2
Infeed Table Length (In.) 47-1/2
Outfeed Table Length (In.) 47-1/4
Rabbeting Capacity (In.) 3/4
Rabbeting Ledge (In.) 5 x 24-1/2
Fence Size (L x H) (In.) 47-1/4 x 5-1/4
Fence Tilt (Deg.) 45 Forward, 45 Backward
Fence Positive Stops (Deg.) 45, 90, -45
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 6
Motor Power (HP) 7-1/2
Motor Phase 3
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 30/15
