Nederman S-750 7.5hp Dust Collector

Sale!

Nederman S-750 7.5hp Dust Collector

Original price was: $12,074.00.Current price is: $10,335.00.

In stock!

Simple, silent and safe enclosureless dust collector for wood dust applications

The S-Series is an enclosureless, silent and simple to set up dust collector suitable for wood and sawdust applications (furniture, cabinetry, windows, doors, flooring, particle board, MDF, building materials, marine, and sawmills) and for general dust collection where feasible.

It is designed for indoor installation compliant with NFPA combustible dust regulations. They are available in three sizes: the S-500, S-750 and S-1000 ranging from 1,500 – 5,000 CFM, providing a cost-effective filtration solution for small and medium-sized workshops.

Technical data
Noise level (dB(A)) 70-75
Installation Indoor
Material Galvanized Steel
Application Dust

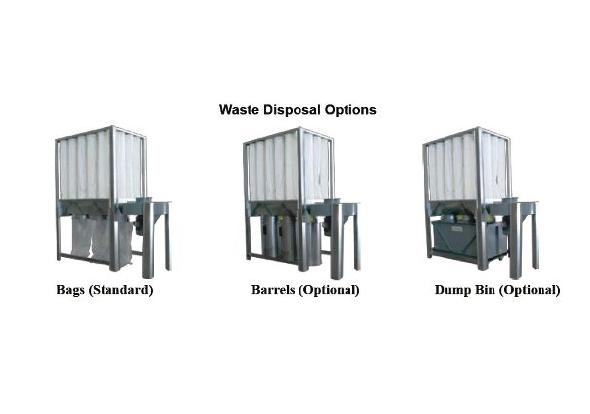

Dustbin volume (gal) 42 for Bags (standard) 45 for Barrels (optional) 230 for Dump Bin (optional)
Filter Area (ft²) 10.125 / bag
Capacity (max airflow cfm) 4,500 CFM @ 5.0″Wg



SKU: S-750 Categories: , ,
  • High performance Superbags reduces bag replacement needs down to 3-5 years
  • Energy efficient fans utilize an impeller design that is 20% more efficient than common radial blade fans
  • Silent operation with high performance fans run only 10-15 dB(A) over normal conversation sound level
  • Provide safety and reliability for your workplace and manufactured in compliance with the latest NFPA standards
  • Unique collapsible design with pre-installed fan and SuperBags minimize installation time and effort with 3 step easy and quick installation.
Specs

Power Voltage (V) 208-230/460

Frequency (Hz) 60

No of phases 3

Filter type Bag

Number of filter elements 24

Filter material Superbag

Weight (lbs) 1,100

Power (Hp) 7.4 (5.5 Kw)

Note 4500 CFM at 5.0" Wg
