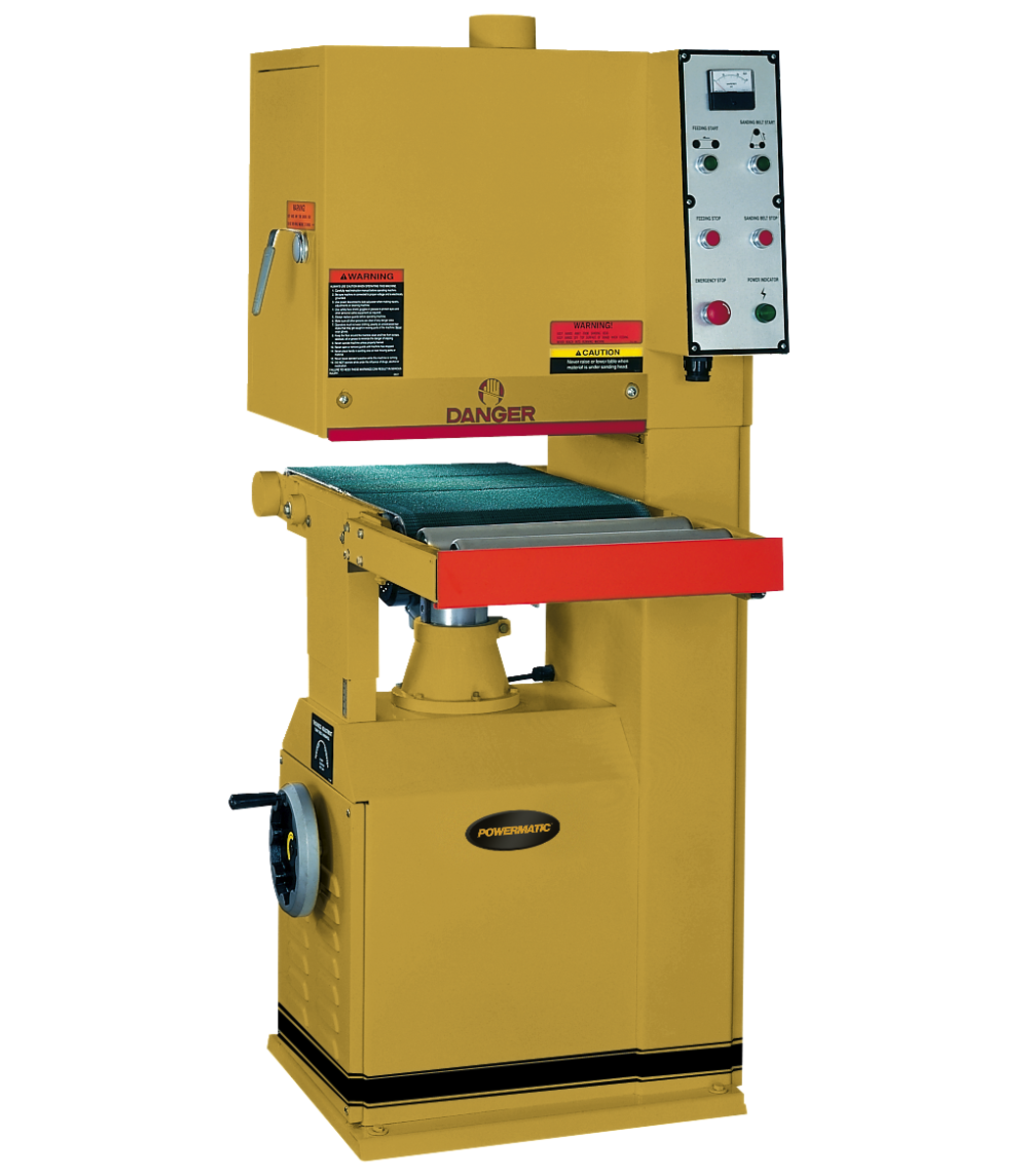

Model 1632 Open End Belt Sander, 5HP, 1Ph, 230V (1/4HP, 1Ph Feed Motor)


In stock!

The 16″ Open-End Belt Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

• The combination head promotes a more consistent finish
• Air pressured oscillating movement for smoother surfaces
• Pneumatic sanding belt tracking keeps belt centered
• Choose from 15 or 32.5 FPM dual feed speed
• Limiters will stop sander instantly if belt breakage occurs
• Standard Equipment:
• Side access door for easy belt changes
• Front facing emergency safety stop
• Conveniently mounted load meter maintains constant check during operation
• Extendable workpiece suport arm

Machine Specs

Style (Type) Open End Belt
Maximum Board Width (In.) 32
Maximum Board Thickness (In.) 5
Minimum Board Length (In.) 13-3/4
Feed Rate (FPM) 15/32.5
Sanding Belt Speed (FPM) 2,200
Sanding Belt Size (In.) 17 x 54
Air Required 4 at 5 atm
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Feed Motor Power (HP) 1/4
Motor Power (HP) 5
Motor Phase 1
Motor Voltage (V.) 230 only
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 40
