Features:

• Produces clean and centered juice grooves with consistent depth using a rigid and fully adjustable heavy-duty anodized aluminum jig system.
• Holds cutting boards securely in position with precision guide rails and securing guides that prevent movement during routing.
• Accommodates cutting boards and flat panels up to 23.5″ x 23.5″ for accurate square or rectangular groove layouts.
• Maintains alignment and repeatability with heavy-duty extruded aluminum rails engineered for stability and accuracy.
• Allows fast and accurate setup using clearly marked imperial measurement scales on each guide rail.
• Keeps the workpiece stable throughout the cut with included hold-down tabs that reduce shifting during operation.
• Supports straight and rectangular groove cuts in flat woodworking panels by allowing custom groove placement within the jig’s size capacity.
• Includes essential routing accessories, including a 1/2″ core box bit with 1/4″ shank and a 5/8″ brass guide bushing mounts to any plunge router baseplate with a 1-1/4” diameter center hole.
• Designed for use with a plunge router to provide controlled entry and consistent cutting depth.

Specifications:

• Material: Heavy-Duty Aluminum

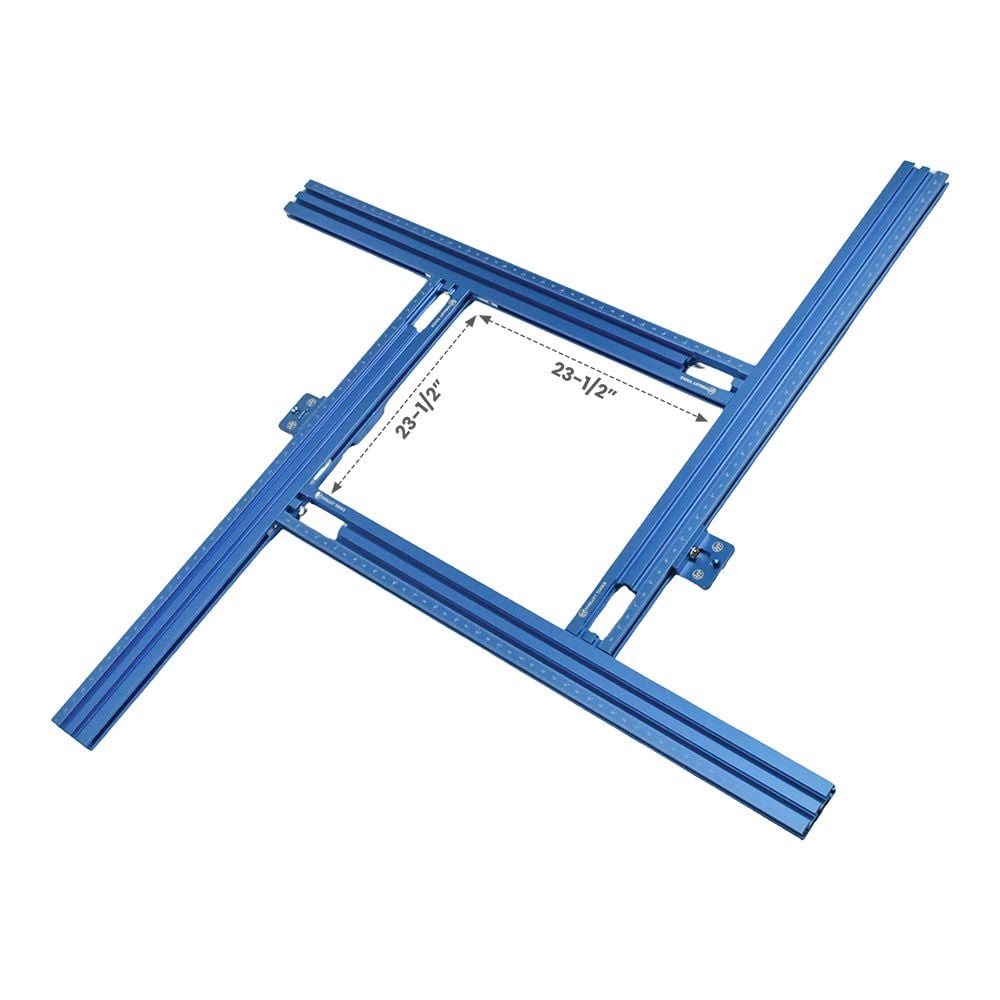

• Max Board Size: 23.5″ x 23.5″
• Jig Interior: 21.5″ x 21.5″
• Jig Exterior: 25.5″ x 25.5″
• Compatibility: For use with a plunge router only.

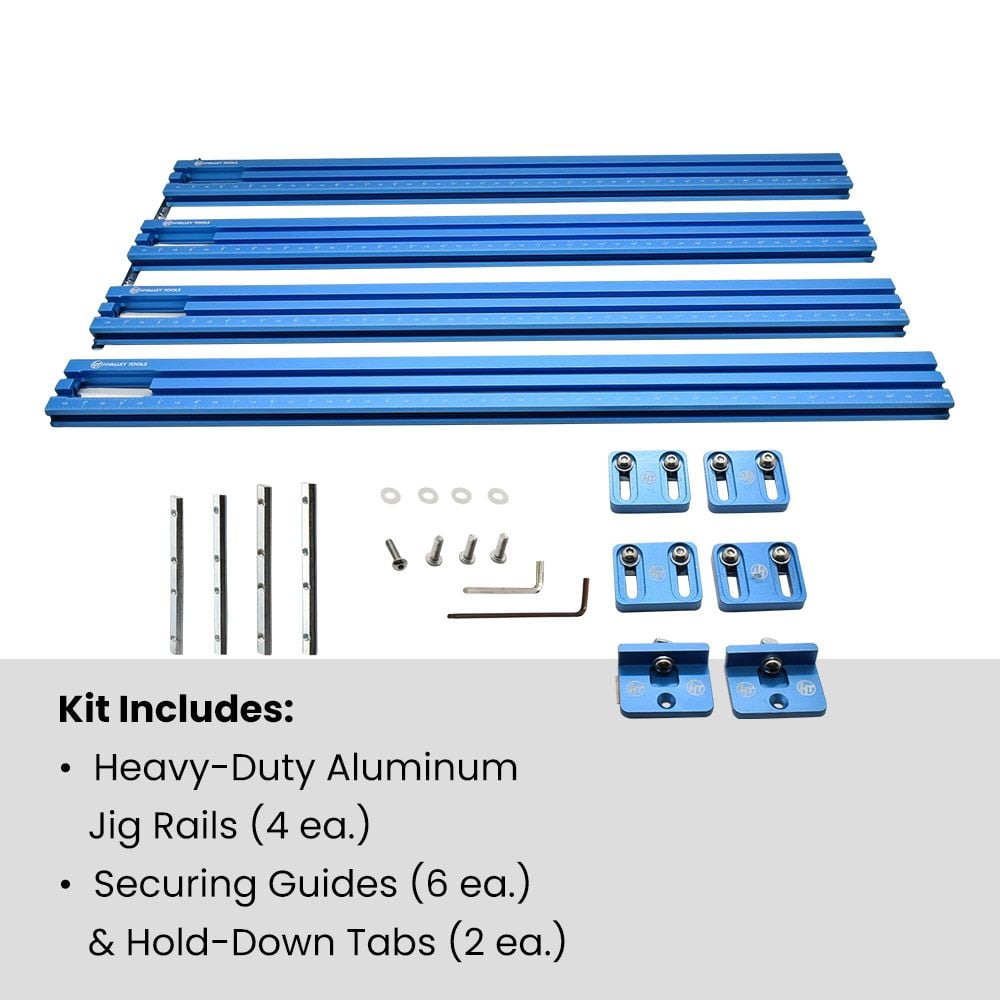

Includes:

• Heavy-Duty Aluminum Jig Rails (4x 23.5″) with Imperial Markings
• 6 Securing Guides & 2 Hold-Down Tabs
