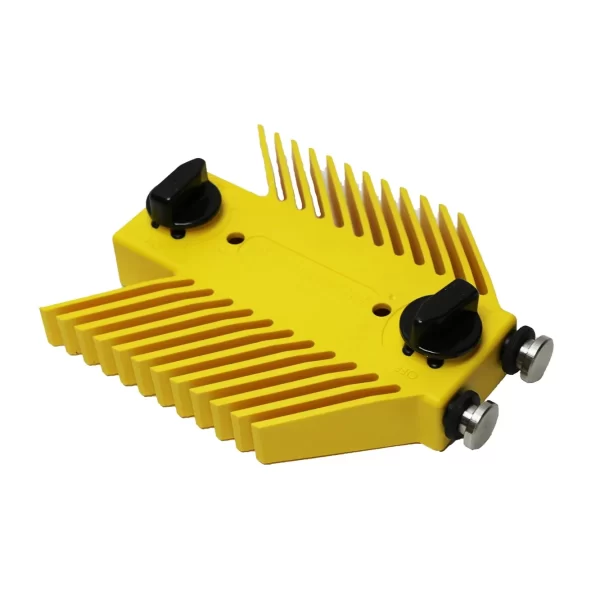

FEATURES & BENEFITS

• Compressible gaskets provide excellent grip when magnets are engaged.
• Increased width for stability.
• Magnet footprint spans most miter slots.
• Functional in left or right-handed positions.
• Two smooth bump stops with independent adjustability using thumb wheels Knobs improve visibility of magnet ON/OFF state.

SPECIFICATIONS

• Nominal Max Breakaway Force: 126 lbs/ 57 kg
• Nominal Maximum Shear: 50+ lbs / 23+ kg
• Net Weight: 1.2 lbs / 0.55 kg
• Footprint: 5.29″ x 6.23″/ 134.4 mm long x 158.2 wide
• Bump Stop Adjustment Range: 0.55” / 14 mm
