Magswitch Power Feeder Mount – 81001386

Magswitch Power Feeder Mount – 81001386

$819.00

In stock!

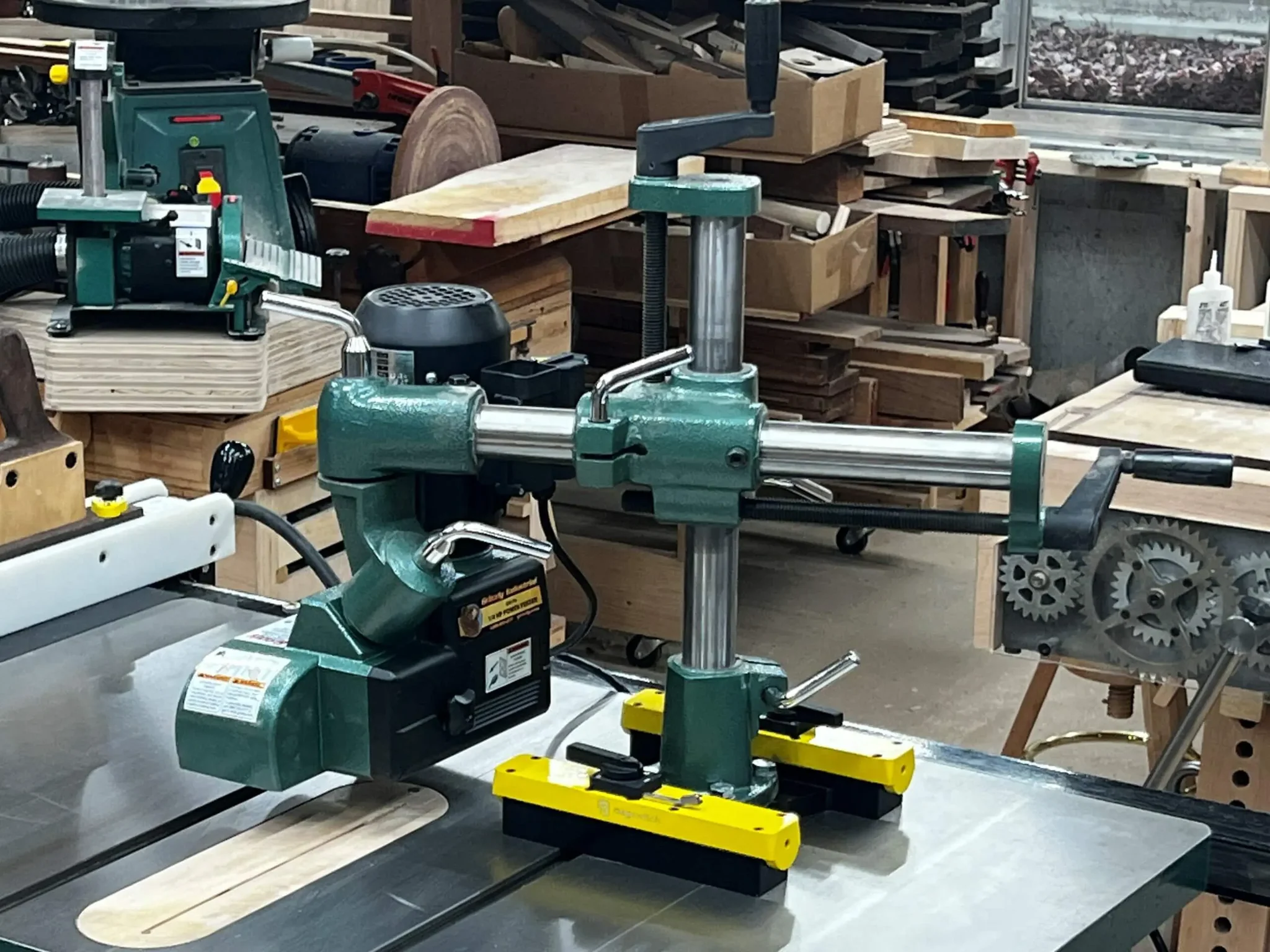

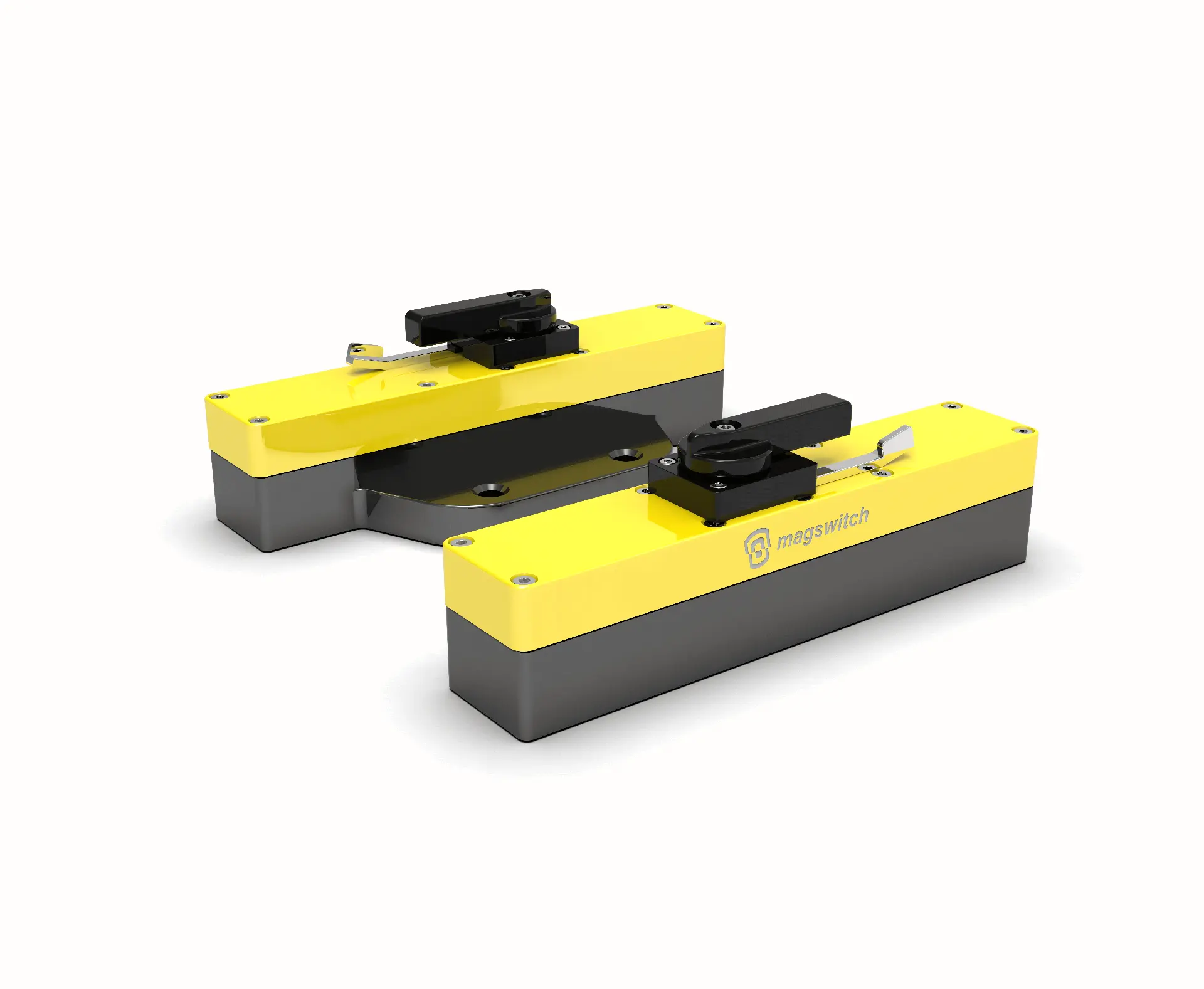

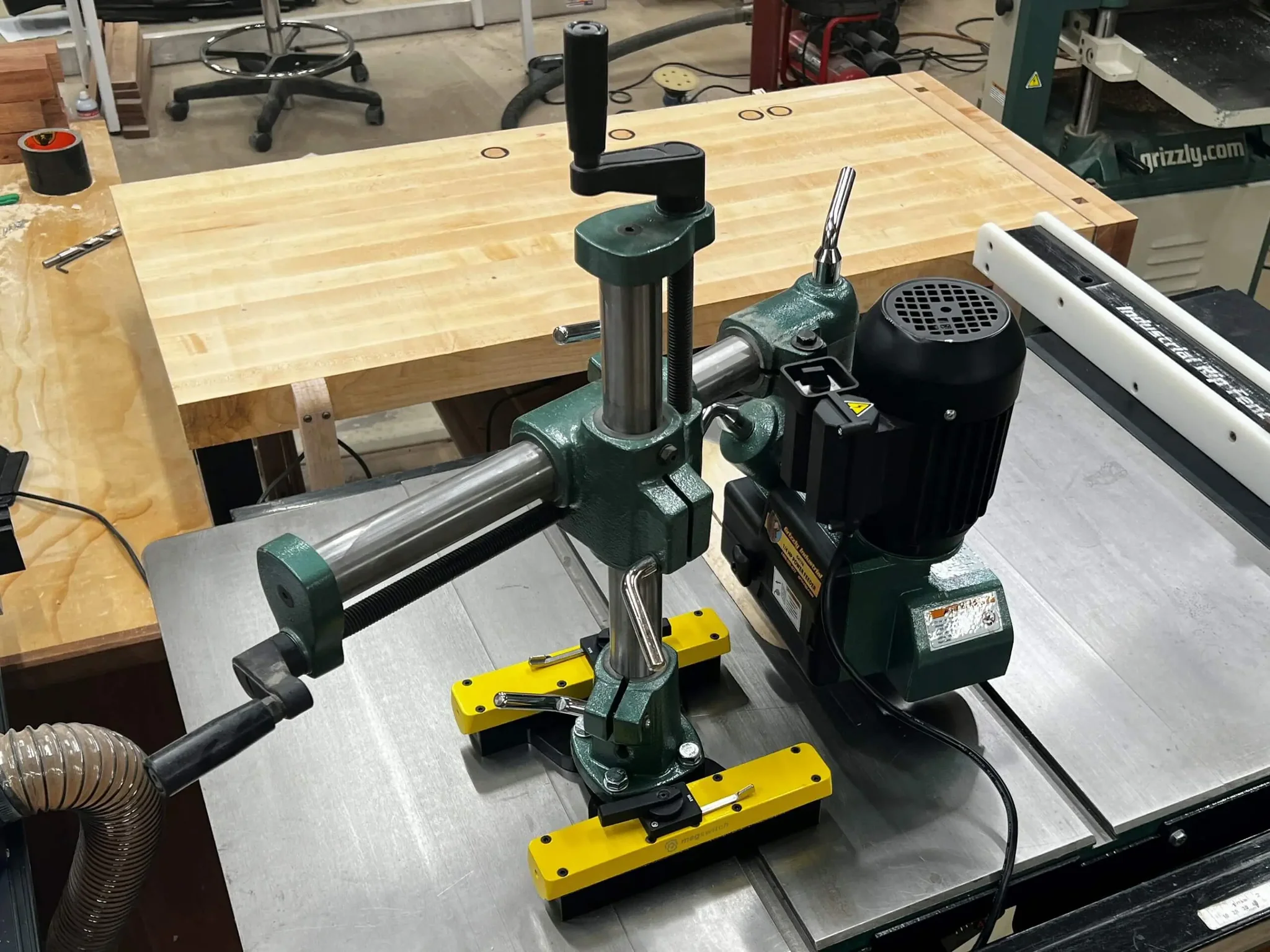

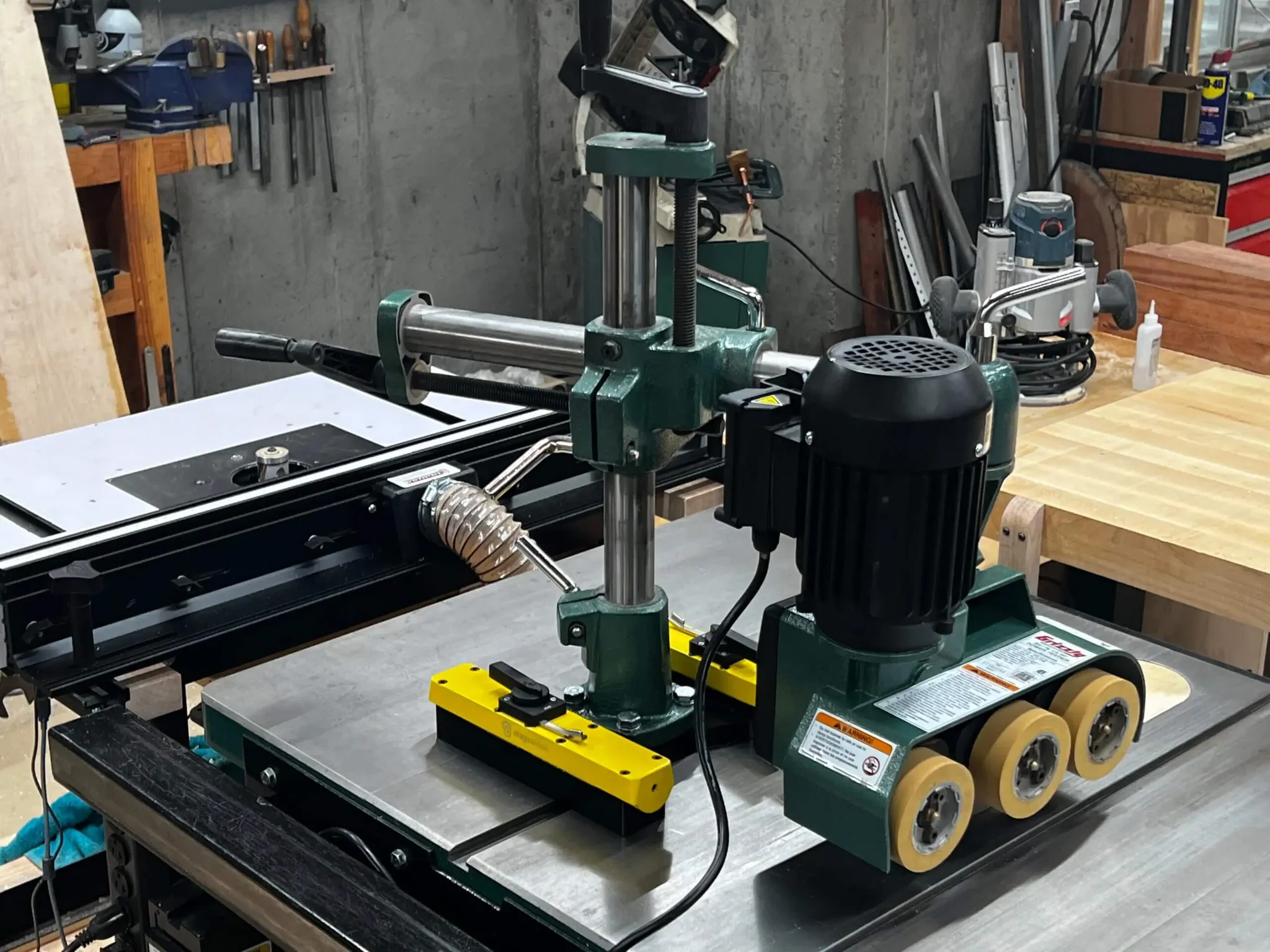

The Magswitch Power Feeder Mount makes it fast and easy to position and lock a power feeder to a cast iron tool table top. The power feeder mount can be placed anywhere on a cast iron drill press table, and finely positioned until it is in place. Once in position, each of the 2 powerful switchable magnets lock the vise in place for the power feeding.

SKU: 81001386 Category:

FEATURES & BENEFITS

  • 2 ½” hole mounting pattern for medium to small power feeders
  • Optional 4 magnet mounting plate with a 3 ½” by 4 ¼” for large power feeders

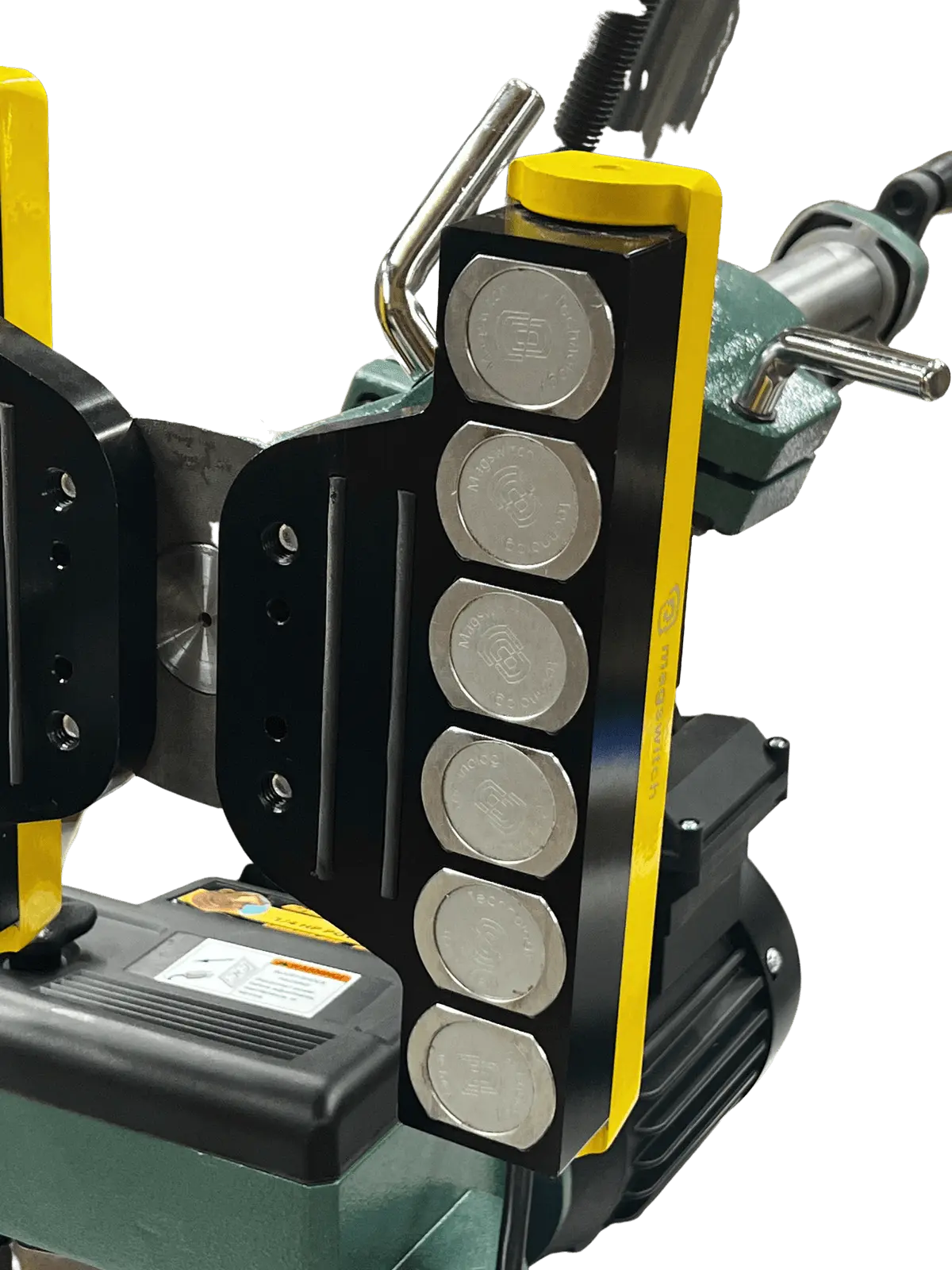

  • Powerful magnets provide a solid grip for high torque power feeding operations
  • Switchable magnets allow for rapid positioning and clamping for a more efficient power feeding
  • Low profile design maximizes vertical drilling capacity
  • Eliminates need to drill and tap into table tops to mount power feeders
Specs

Maximum Breakaway Force – 1737 lbs
Nominal Maximum Shear – 469 lbs
Full Saturation Thickness – .5 in
Overall Height (Max) – 2.84 in
Overall Length – 8.83 in
Overall Width – 8.52 in
Net Weight – 10.14 lbs
Magnetic Pole Footprint (2 magnetic assemblies) – 8.71 x 8.44 in
Magnetic Pole Footprint (4 magnetic assemblies) – 12.48 x 12.48 in
