Laguna X|Flux: 5 Cyclone Dust Collector

$4,999.00

In stock!

Ships for $199

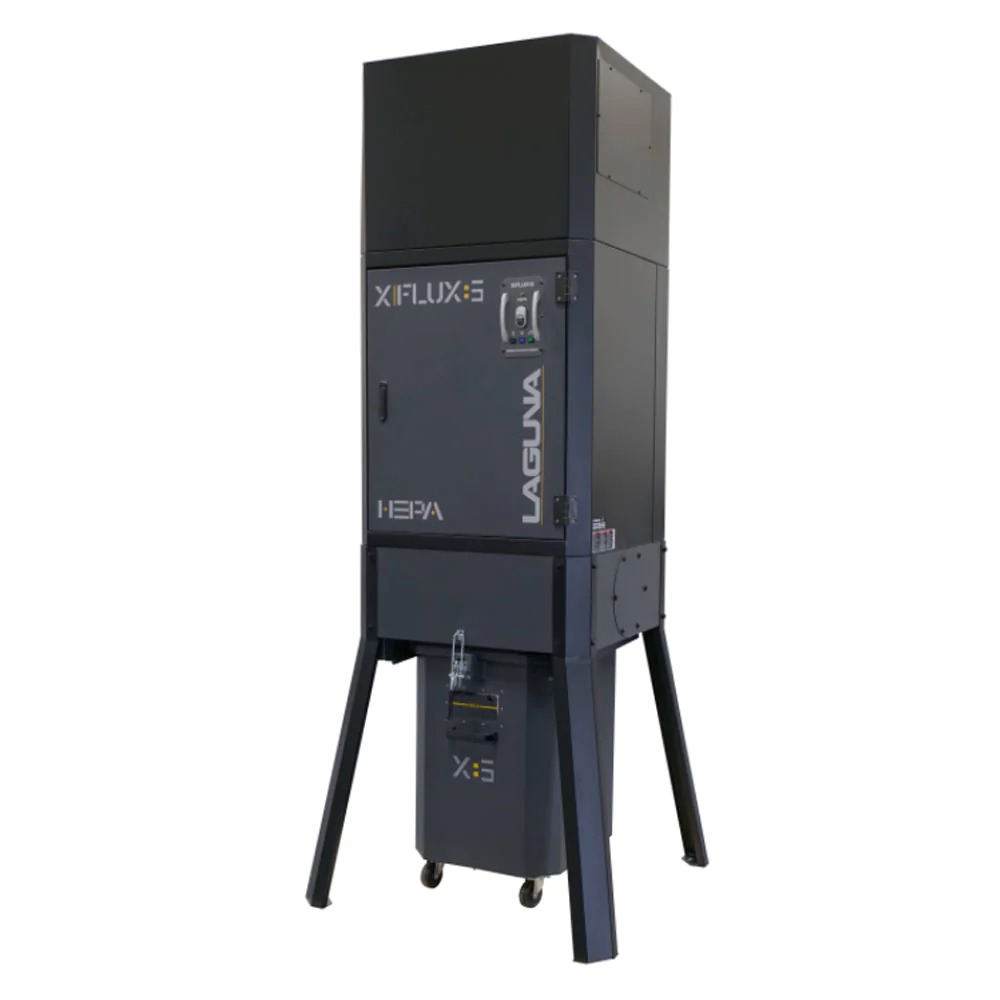

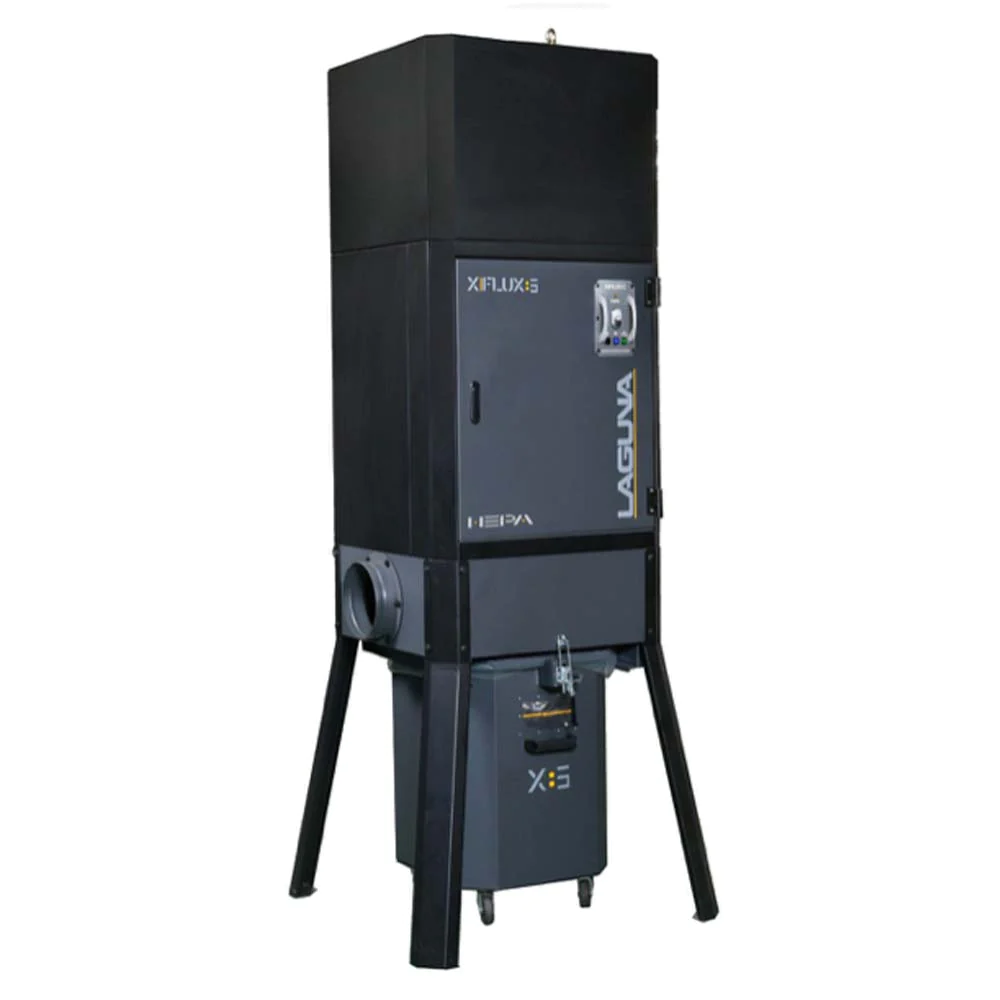

The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 3093 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with a convenient 39-gallon drum on locking casters.

SKU: MDCXF52201 Categories: , , Tags: , ,
Features:
  • Motor HP: 5 HP
  • 3093 CFM Maximum Air Flow
  • 39 Gallon Octagon Drum
Machine Specs

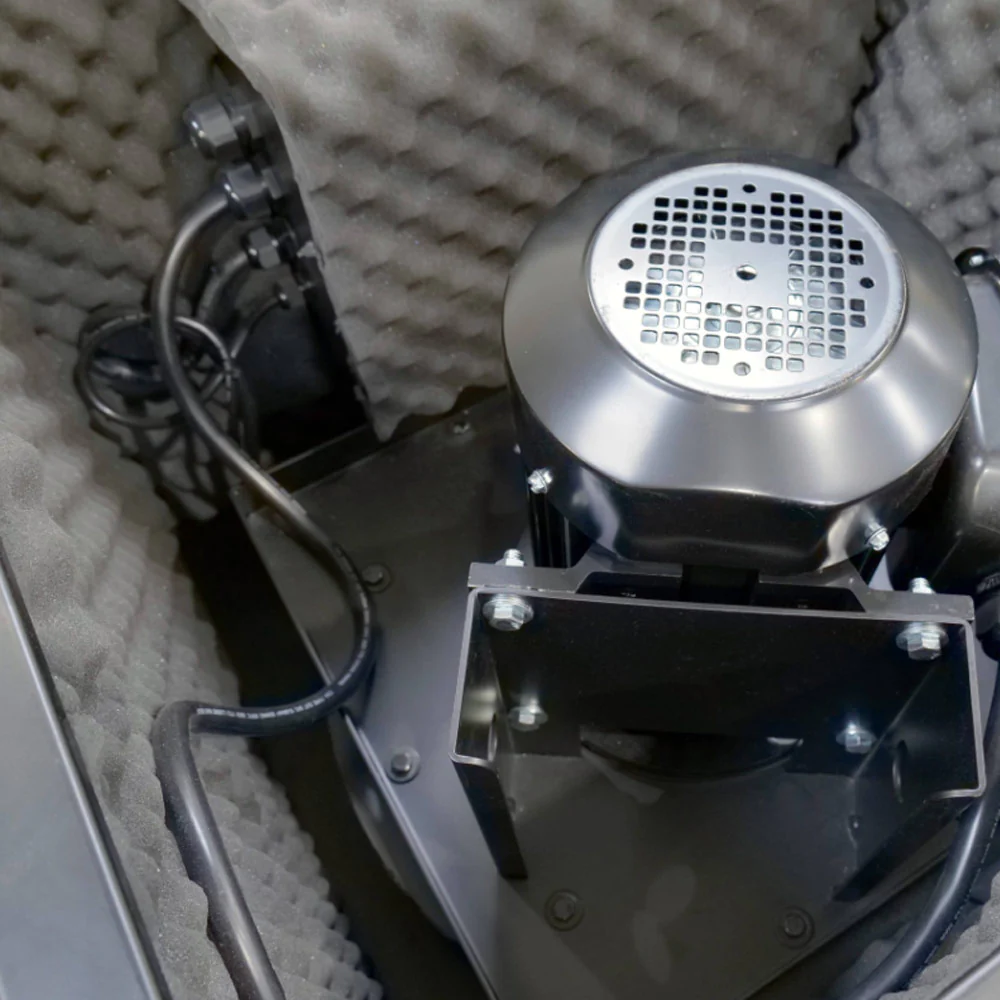

Motor Specs: 5HP
Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (8″ inlet) 18.5A at 220V
Maximum Air Flow: 3093 CFM (Cubic Feet Per Minute)
Shop Setting Air Flow*: 1823 CFM
Max Static Pressure: 12″
Fan Size: 14.5″
Inlet: 8″
Auto Clean: 3 min. Interval 10 Seconds F+R
Decibel Reading: 69 dBA (@9.8ft)

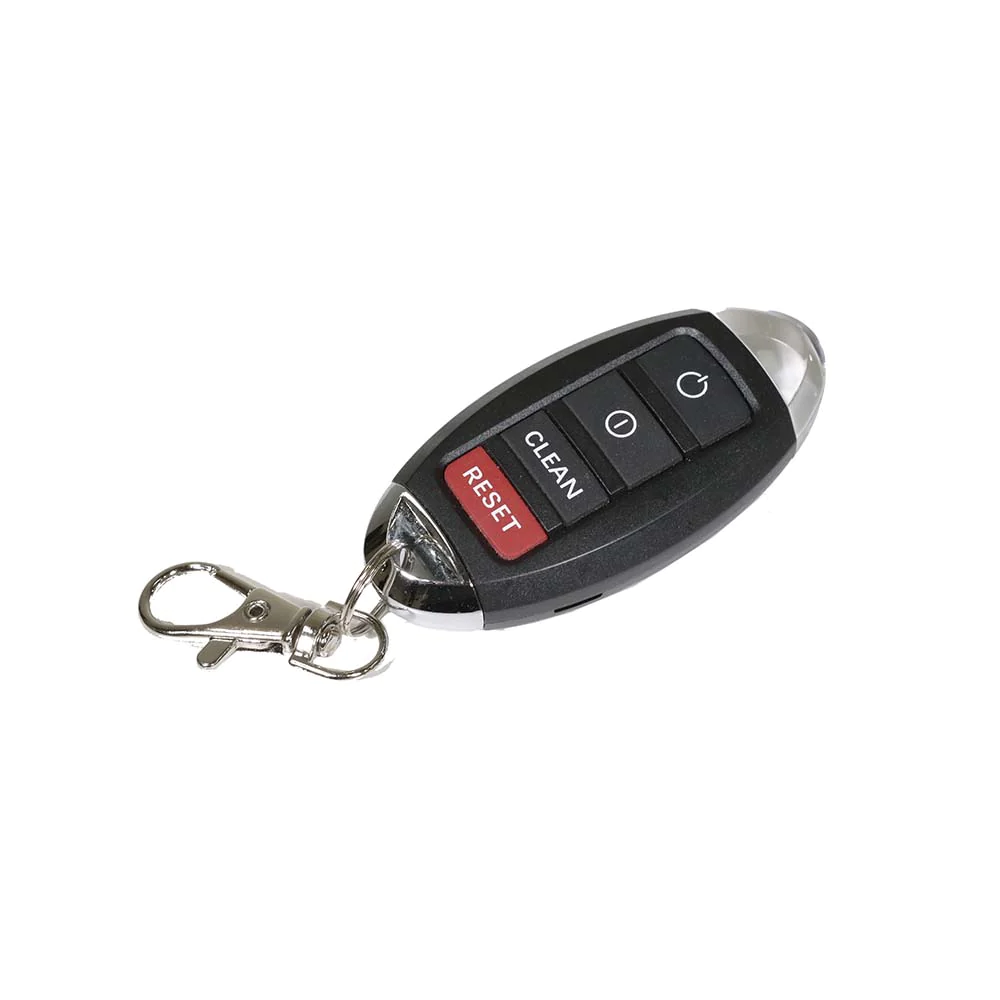

Remote Control: High Frequency
Collection Capacity: 39 Gallon Octagon Drum
Assembled Dimensions (L x W x H): 36″ x 38″ x 91″
Packing Size (L x W x H): 35.4″ x 28.3″ x 81.5″ (90 x 72 x 207 cm)
Machine Weight: 456 lbs. (207 kg)
Shipping Weight: 544 lbs. (247 kg)
Filter Specs
Filtering Area: 32.3 sq/ft (3 sq/m)

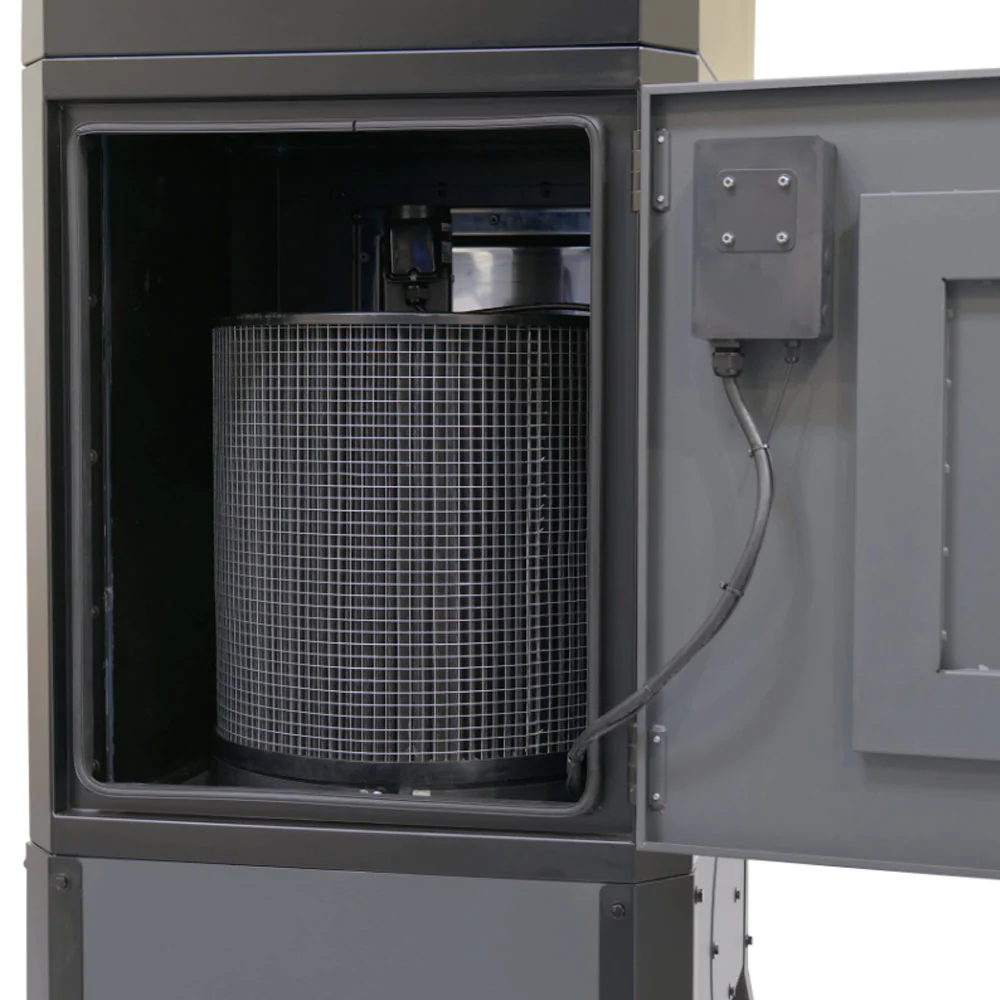

Cartridge Filter**: HEPA 19.7″ x 19.7″ x 1pc; (0.3 – 0.4 Micron @ 99.7% Efficiency)
