Laguna – PX|22 ShearTec: II Planer – 10hp; 220v, 3 Phase

Laguna – PX|22 ShearTec: II Planer – 10hp; 220v, 3 Phase


In stock!

Ships for $199

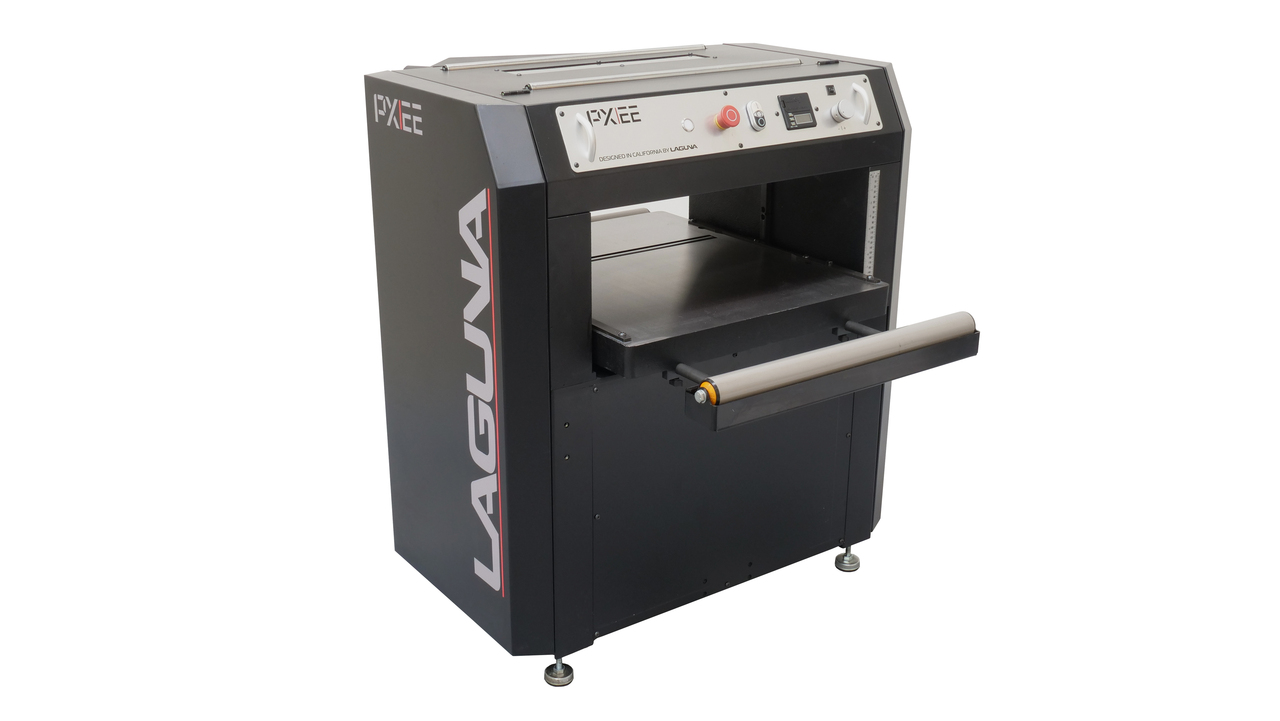

The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.

SKU: MPLANPX22100130 Categories: , ,

PX|22 ShearTec II Standard Features

  • Motor – The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
  • Segmented Infeed Roller – Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
  • Electronic Variable Speed – Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models

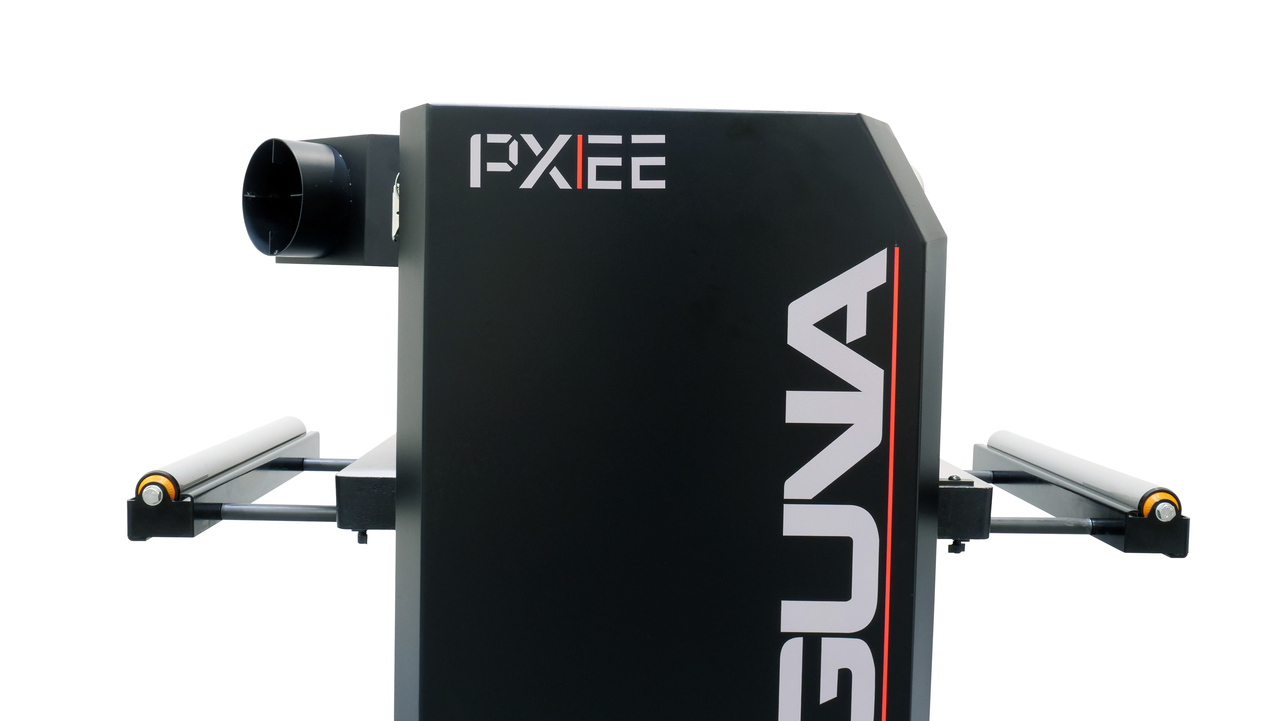

  • Infeed and Outfeed Rollers – The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint
  • Digital Readout – The DRO makes setting precise thickness easier

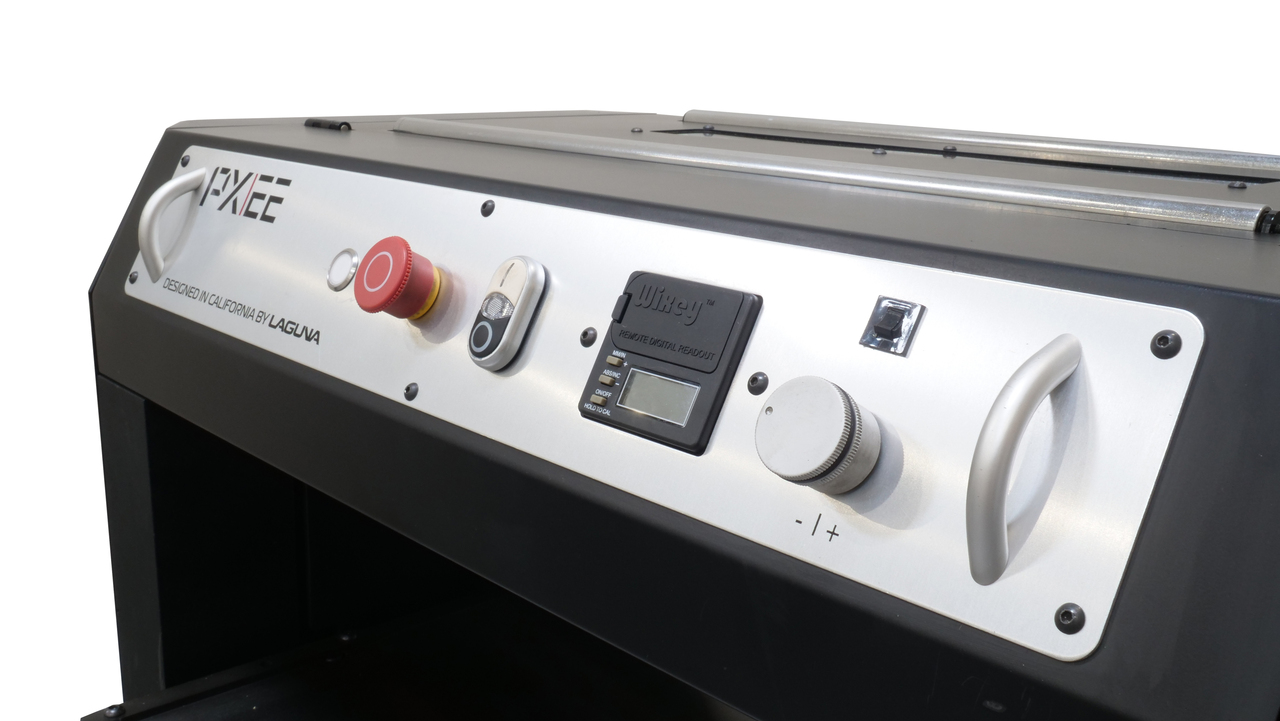

  • Ergonomic Control Panel – Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility

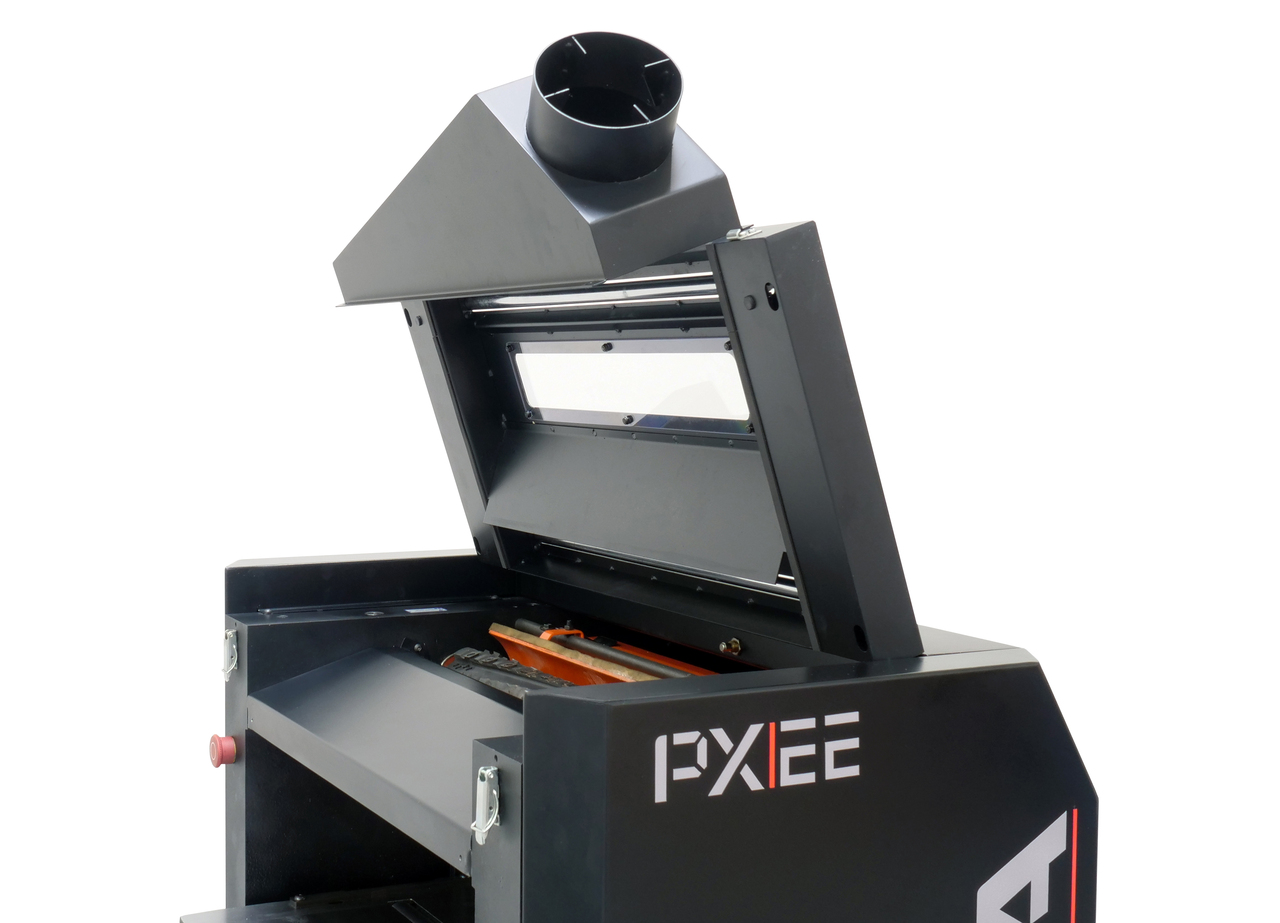

  • Improved Dust Collection – The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout.
  • 4-Post Bed Support – Provides precise and consistent performance with every cut

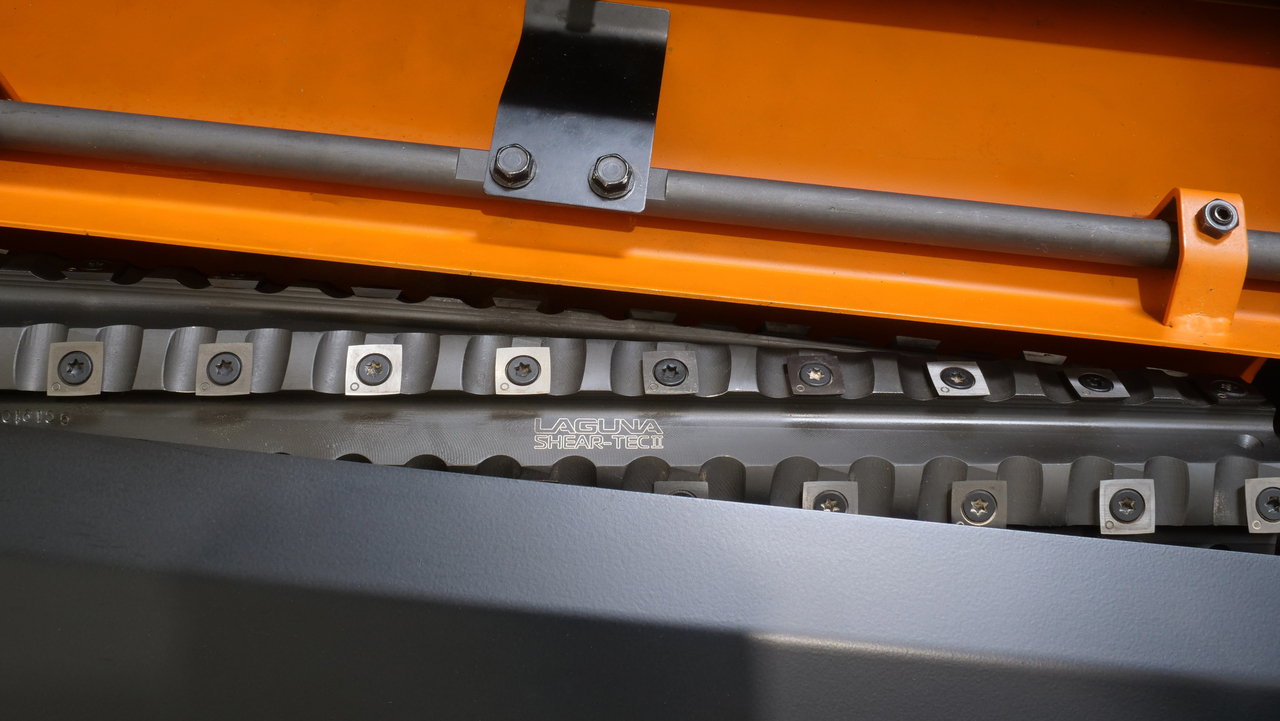

  • ShearTec II Cutterhead – The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
Machine Specs

Motor: 220v 10HP 3phase 60hz /28 Amp.
CSA: Yes
Bed Size: 22 x 28″
Wheels Built-in: Optional
Pull-Out Extension: 6″
Max. Depth of cut: 1/4″
Max. Stock Thickness: 8″
Min. Stock Thickness: 1/2″
Min. Stock Length: 9″
Max. Stock Width: 22″
Feed Speed: 10 30 FPM Elec. Vari Spd.
Dust Port Diameter: 5″ LEFT and RIGHT
Cutterhead RPM: 5000
Cutterhead Diameter: 3-1/2″
Cutterhead Insert #: 150 x 4-sided Carbide, 6 Row
Thickness Readout: Wixey DRO
Dimensions set up approx.: 40″x 46″
Dimensions Shipping: 44″x38″x48-1/2″
Net/Ship Weight # of boxes: lbs. 867/955 1Box
