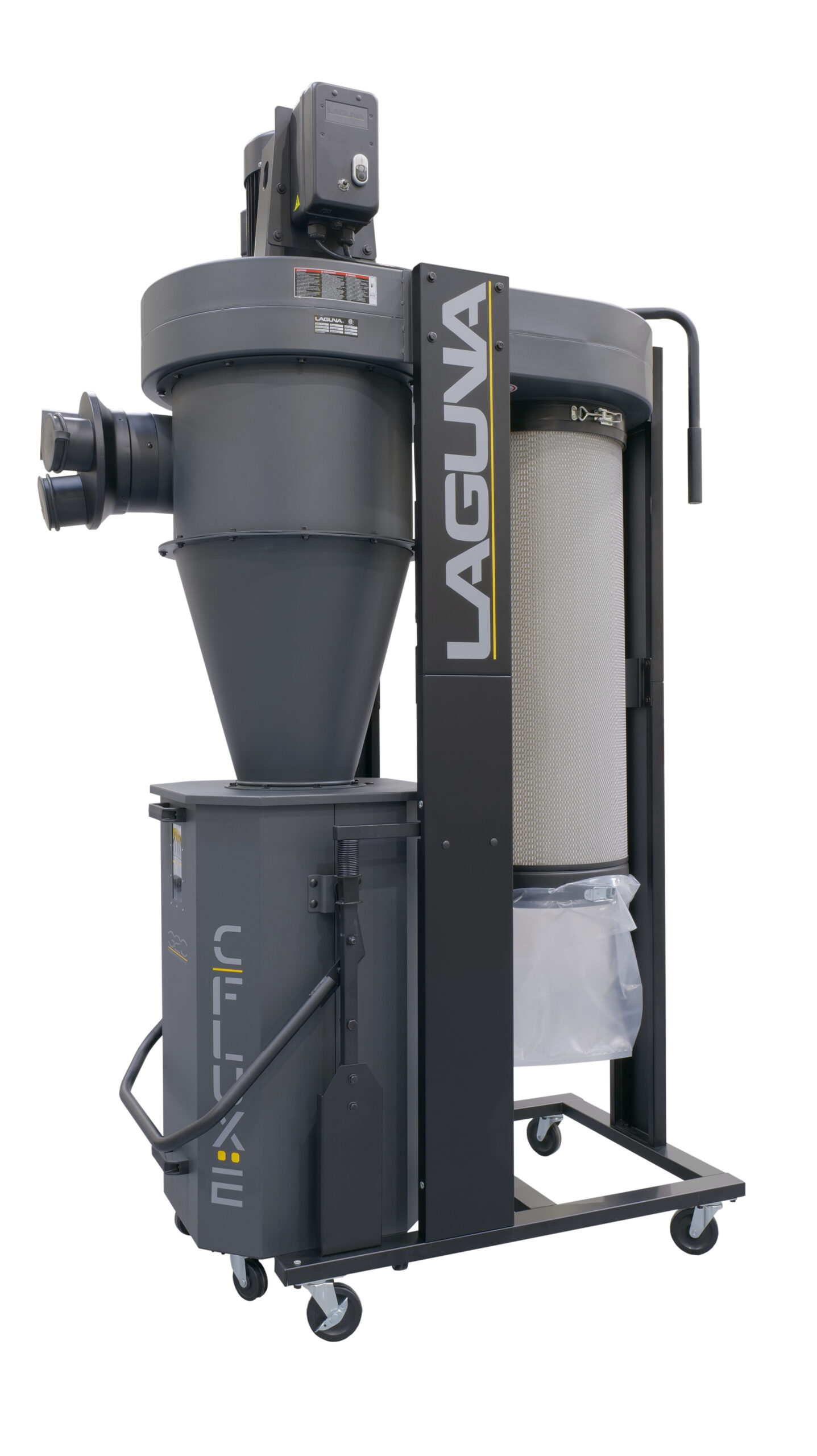

Laguna C Flux 2 Cyclone Dust Collector, 2HP, 220V

$2,399.00

In stock!

Ships for $199

All New For 2022!

For the popular C|Flux cyclone dust collectors, Laguna has kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

SKU: MDCCF22201 Categories: , ,

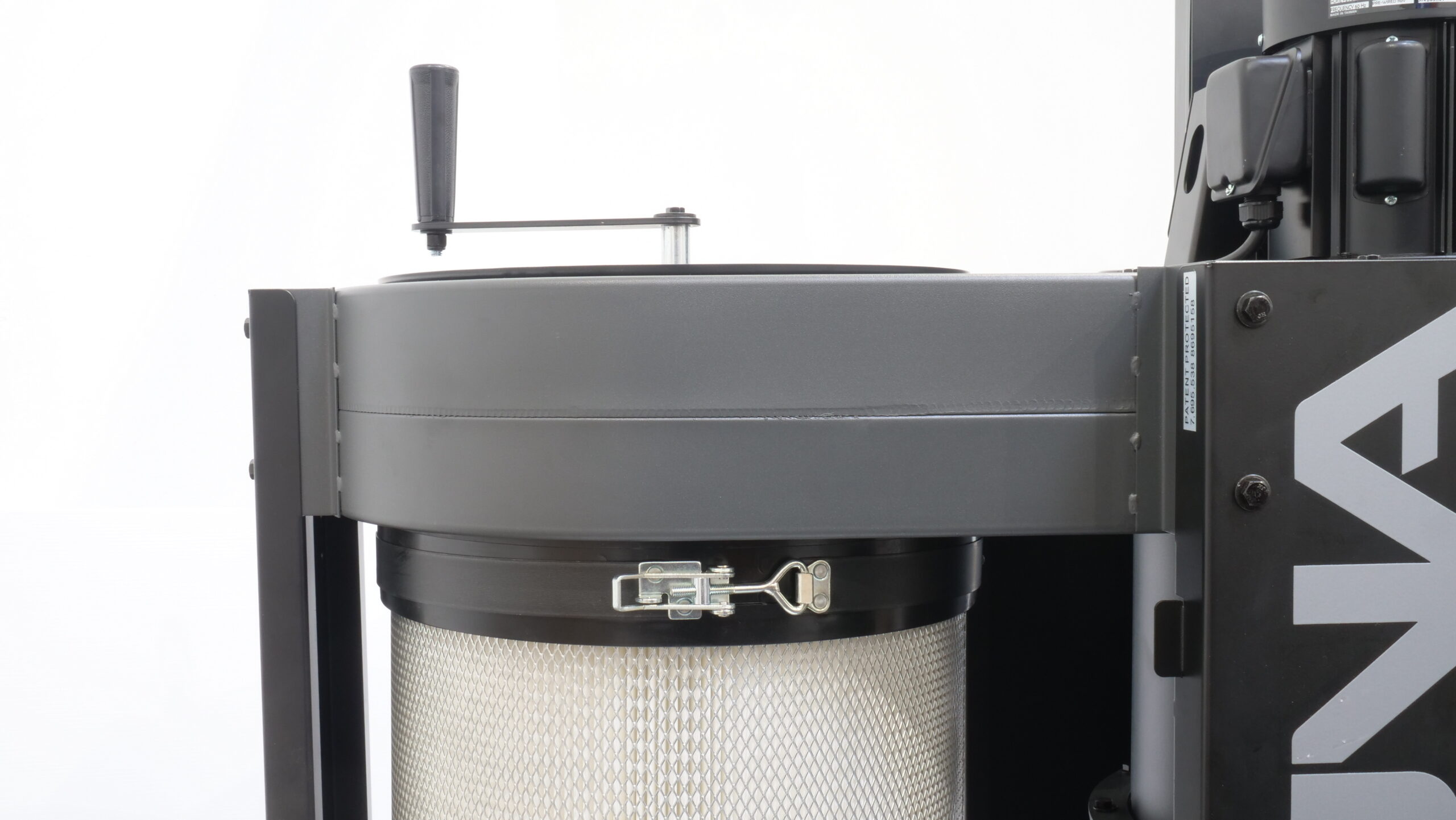

The c|flux:2 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

The c|flux series can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure.

Ingenious lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

Motor specs: 2 HP
Electrical specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (6” inlet) 14A at 220V
Air Volume: 1166CFM (cubic feet per minute)
Max. static pressure: 9.3 Inches of water
Fan size: 14.5”
Inlet: Ø6” (Ø 8” BY Ø 6” PORT) OR (Ø 8” BY Ø 4” X 2 PORTS)
Switch: High-frequency remote control switch
Collection capacity: 46-gallon Octagon drum
Filtering area: 9.5 m2 (102 ft2)
Cartridge filter: 1 Micron Ø15.74” x 35.43” (Ø40 x 90cm) x 1pc
Machine weight: 301 lbs. (140 kgs)
Shipping weight: 377 lbs. (171 kgs)
