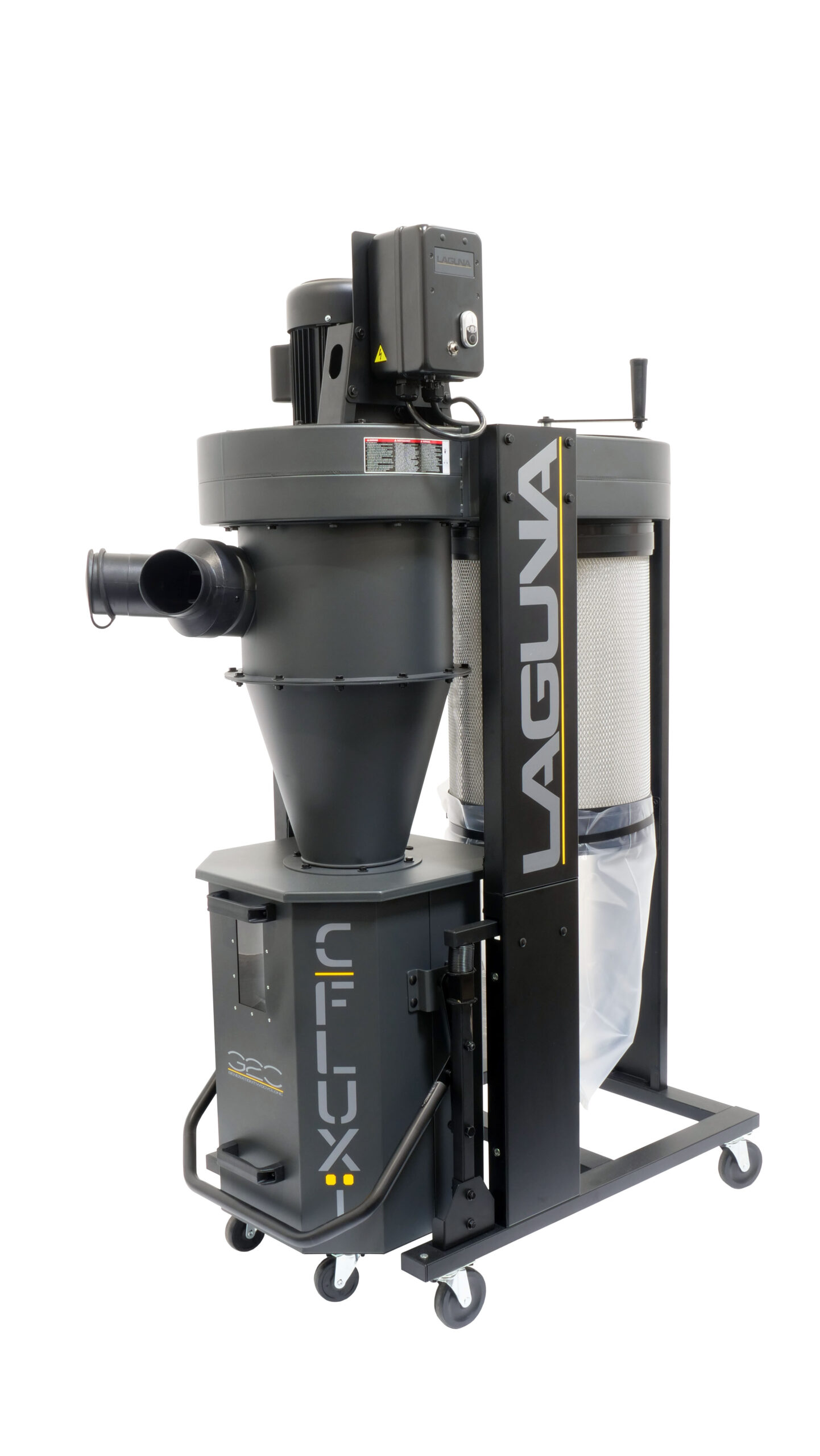

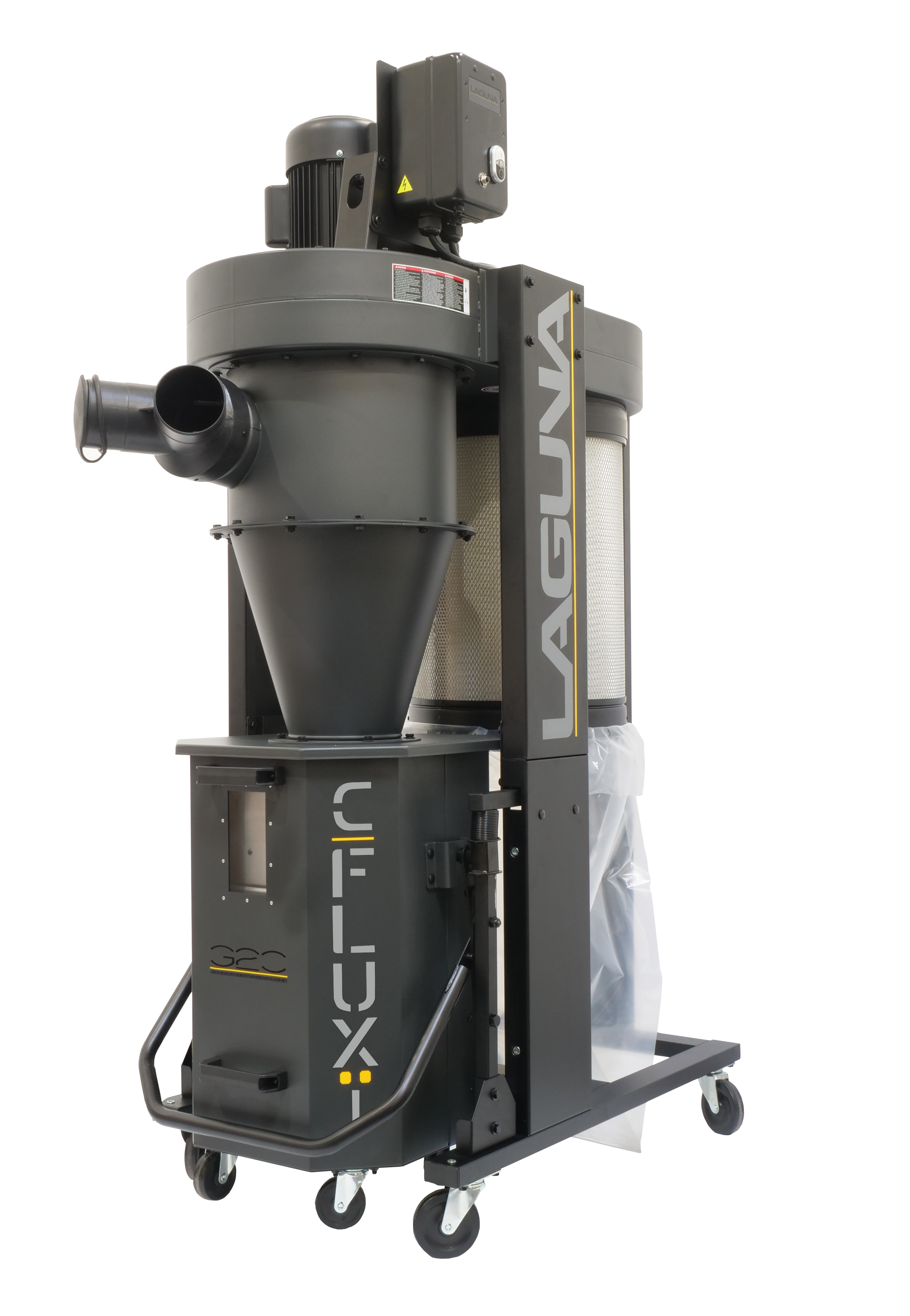

Laguna C Flux 1 Cyclone Dust Collector, 1.5HP, 110V (New 2022 design)


Laguna C Flux 1 Cyclone Dust Collector, 1.5HP, 110V (New 2022 design)

Original price was: $1,999.00.Current price is: $1,799.10.

In stock!

Ships for $99

All New For 2022!

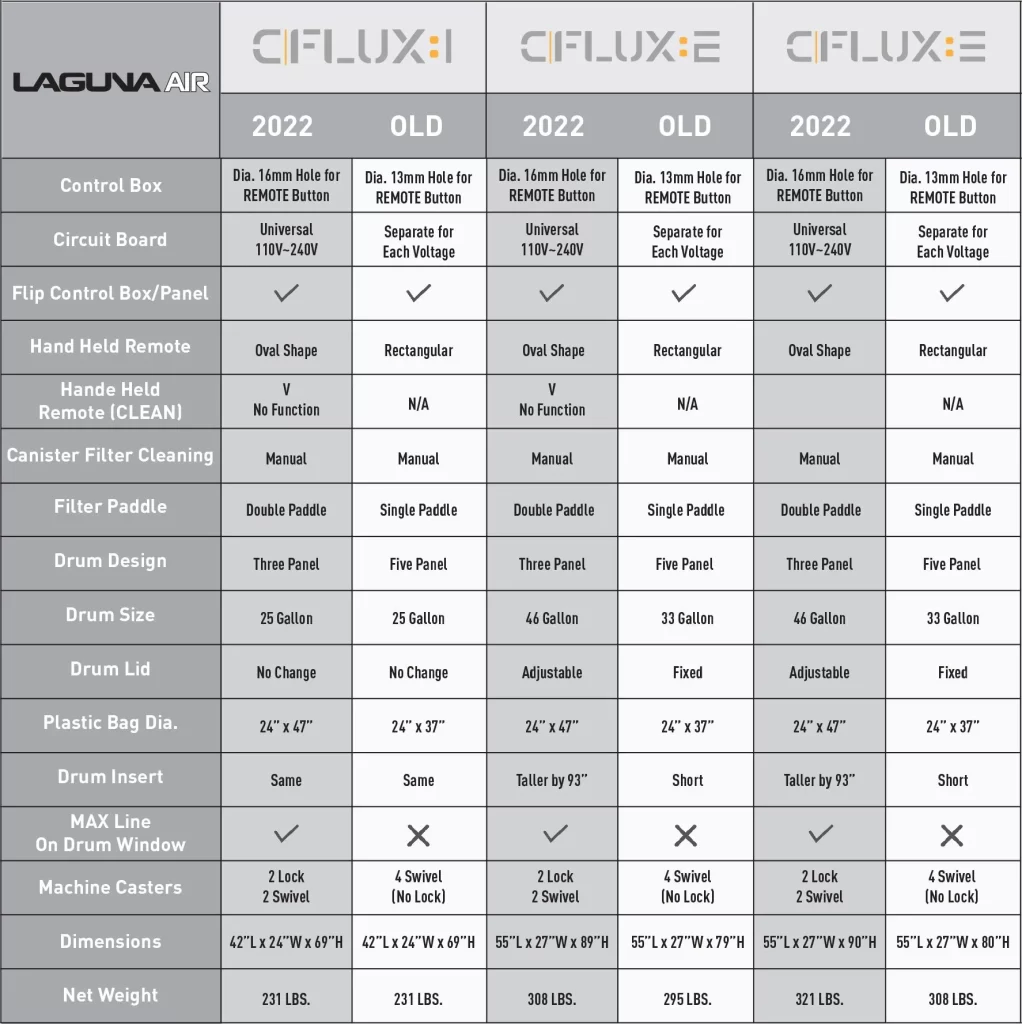

For the popular C|Flux cyclone dust collectors, Laguna has kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

SKU: MDCCF15110-NEW Categories: , ,

The c|flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

The c|flux series can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure.

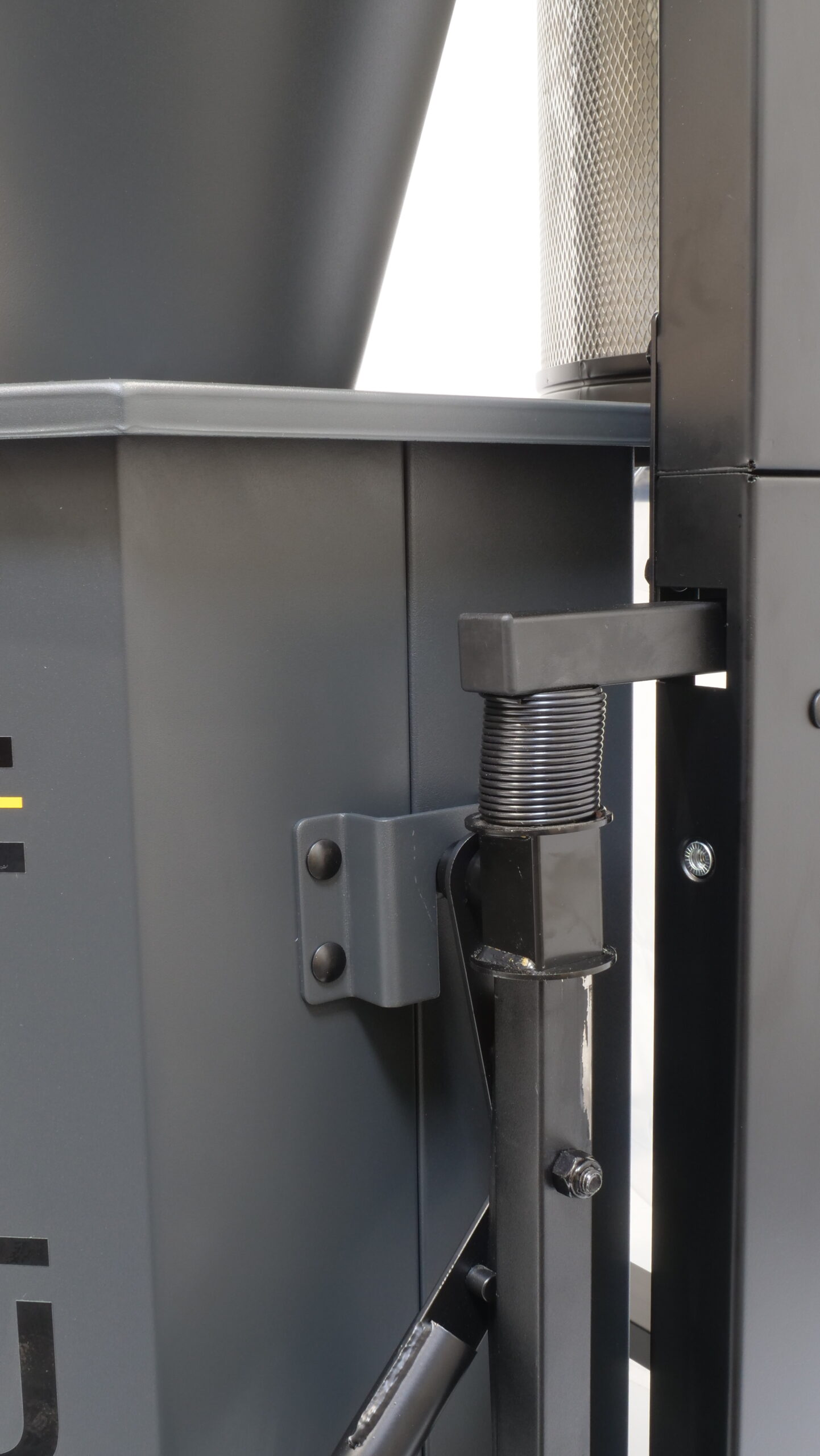

Ingenious lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

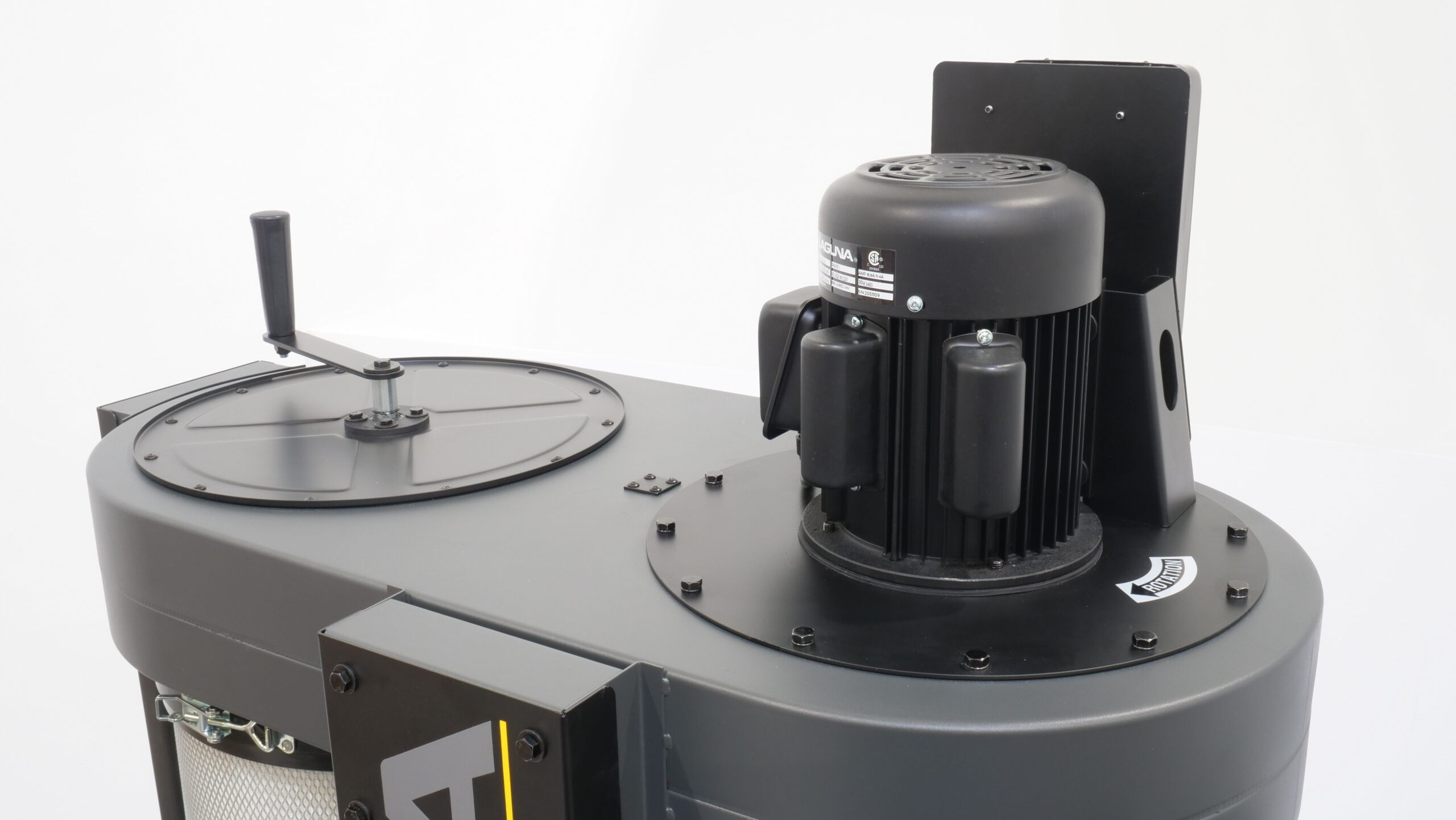

Motor Specs: 1.5 HP
Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM
Running AMP (with 6″ inlet): 18.8A at 110V; 9.4A at 220V
Air Volume: 900CFM (cubic feet per minute)
Max. static pressure: 10.1 Inches of water
Fan size: 13.5”
Inlet: One 6” or two 4” ports

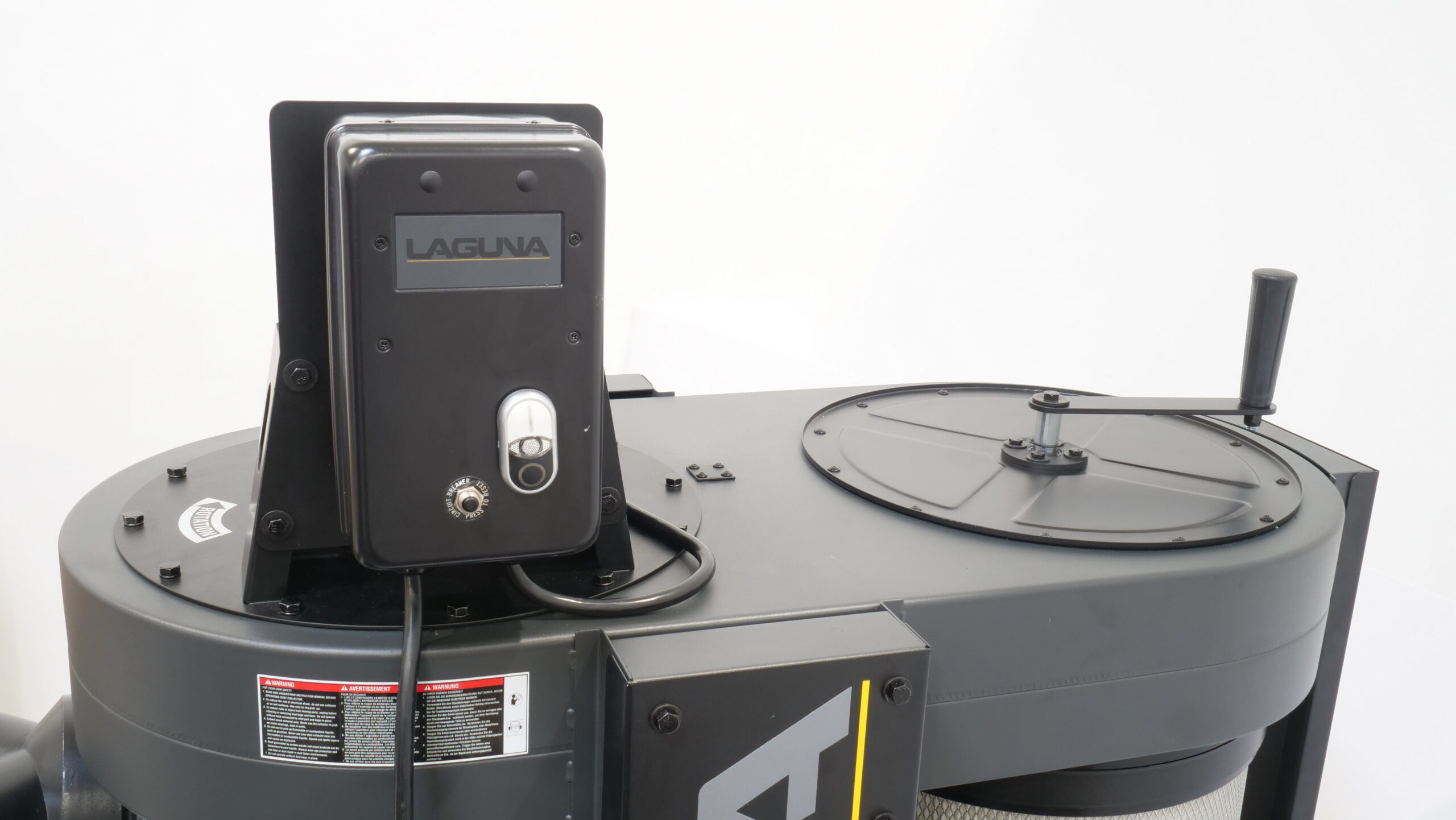

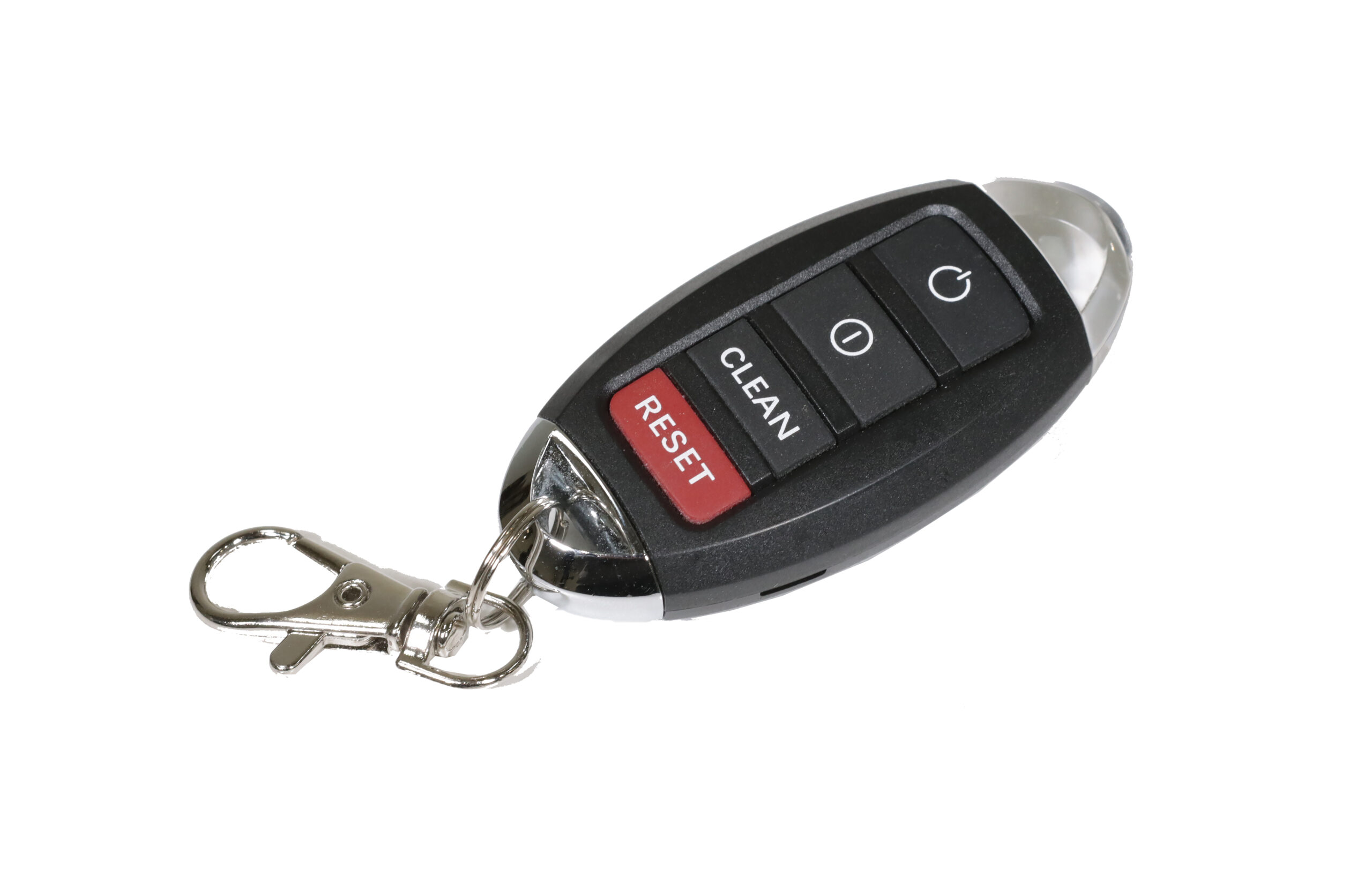

Switch: High frequency remote control switch
Collection capacity: 25 gallon octagon drum
Filter Media: Filtering area: 48.4 sq./ft. (4.5 m2)
Cartridge Filter: 1 Micron, 15.74” x 19.68” (40 x 50cm) x 1pc
Machine weight: 232 lbs. (105 kgs)
Shipping weight: 287 lbs. (130 kgs)

Machine Specs

Motor HP : 1.5 HP
Phase : 1
Voltage : 110/220v
Amps (Motor Rating) : 18.8 / 9.4 Amps
Amps (recommended breaker) : 20 (110v) 15 (220v)
Hertz : 60
Plug : No
RPM : 3450
Switch type : Radio Frequency Remote switch Black Box
Hand held remote control : HF
Real CFM : 900
Nominal CFM : 1314
Max Static Pressure (inches of water) : 10.1
Impeller/Fan Size : 13.5
Impeller Material : Steel
Impeller type : Radial Fin
Balanced To: ISO 1940
Inlet Diameters : 6 by 4 x 2 ports
Drum Capacity : 32 Gal.
Octagon drum : Metal drum insert
Drum collection bag (Dia. x L) Plastic bag (Ø610 x 950mmL)
Canister Filter type : 1 Micron
Filtration efficiency 0.2-2micron @ 99.97%
MERV rating :12
Canister diameter : Ø400mm (15.75 )
Canister length : 500mm (19.69 )
Filter Surface Area : 4.5m² 48ft²
Canister cleaning : Manual Handle crank. 270 degrees
*Optional Auto cleaning kit available
Canister filter lower dust collection : Plastic bag (Ø400 x 600mmL)
Base with perforated sheet across canister floor N/A
Wheels : 4 Flat Caster
US/CSA Approved : Yes
Decibel Reading : 82 d B(A) (@9.8ft)
Machine weight : 105kgs / 232Lbs
Shipping weight : 130kgs / 287Lbs
Assembled Dimensions (L x W x H) 42.5 x 24 x 68.5, 1078x614x1740mm
