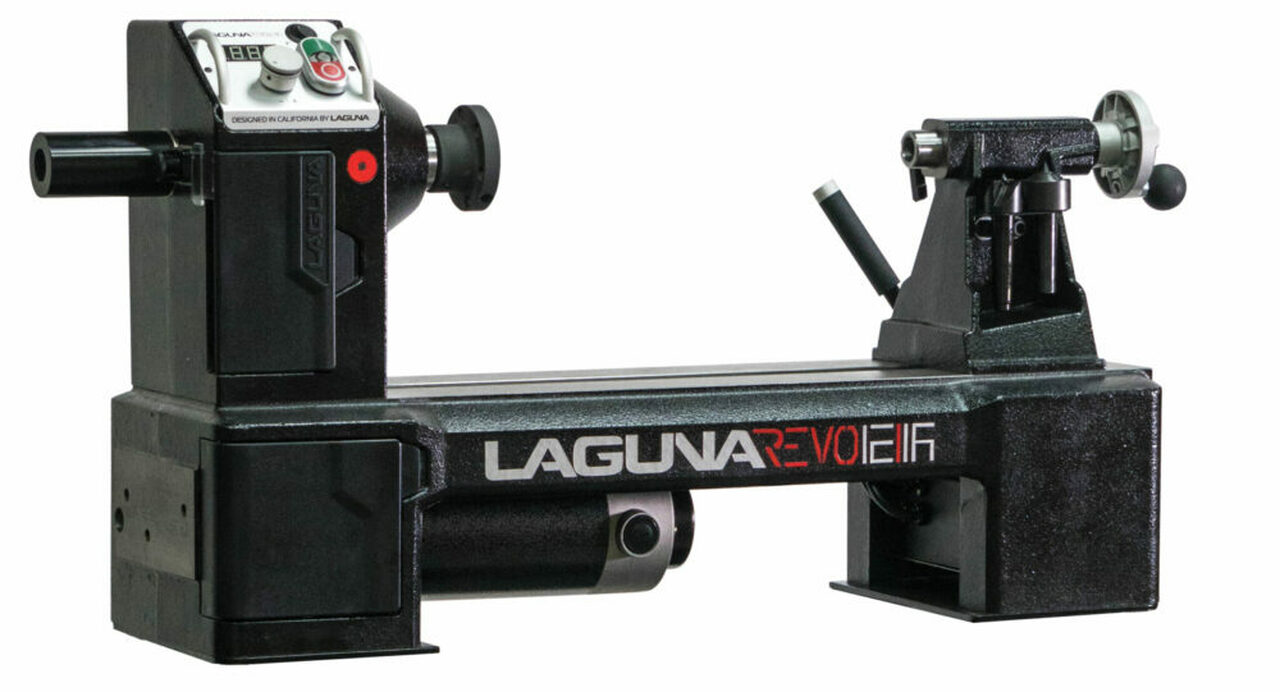

Laguna – 12|16 REVO Lathe 1HP 110V

Sale!

Laguna – 12|16 REVO Lathe 1HP 110V

$899.10

In stock!

Ships for $99

The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor.

SKU: MLAREVO1216EVS Categories: , ,

The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge.

Machine Specs

Motor: 1 HP DC Permanent Magnet Motor
Controller: Pulse Width Modulation (PWM)
Electrical Requirements: 110V-1PH-60HZ
Recommended Breaker Size: 110V – 15 AMP
Speed Range High 650 – 3500 RPM
Speed Range Mid 325 – 1750 RPM
Speed Range Low 50 – 525 RPM
Distance Between Centers 15.5”
Swing Over Bed 12-1/2”
Swing Over Banjo 9-1/2”
Max. Outboard Swing 16”
Spindle Bore 3/8”
Spindle Taper MT2
Spindle Thread 1”x 8 TPI (both ends)
Front Bearing 6006LLU
Rear Bearing 6005LLU
Indexing 24 positions w/ Lock
Drive belt Poly-V Belt 6 Grooves
Tail stock quill travel 2-1/2”
Tail stock taper MT2
Bed Length 29.4”
Tool Rest Length 6”
Tool Rest Post Dia. 1”
Faceplate Dia. 3”
Certification CSA C/US 256540
Floor to bed height 6.7” no pads
Floor to Spindle Center 13” no pads
Overall Size L29.4” W8.9” H17.4”
Shipping Dimensions L35.8” W14.6” H20.5”
Net Weight 118 LBS
Shipping Weight 125 LBS
