Jet JWBS-20-5, 20″ Bandsaw, 5HP, 230V

Jet JWBS-20-5, 20″ Bandsaw, 5HP, 230V


In stock!

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.

SKU: JT9-714850 Categories: , ,

• 16″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels

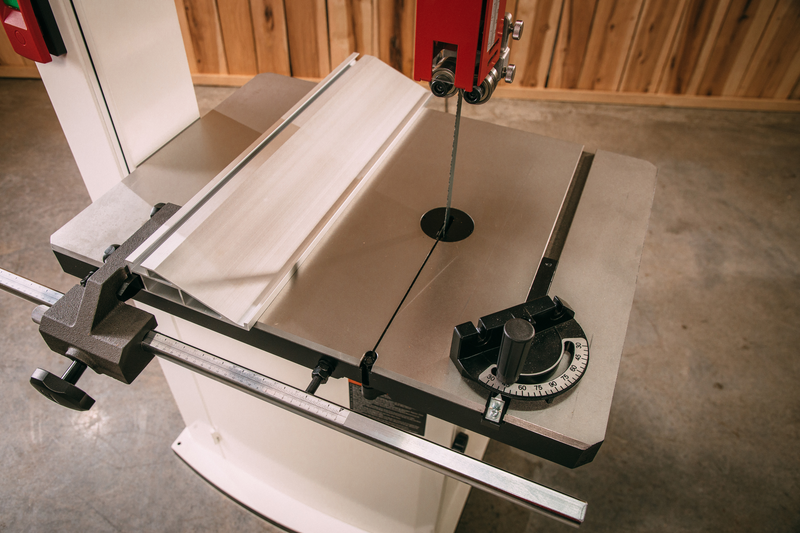

• 27-1/4″ x 20″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides

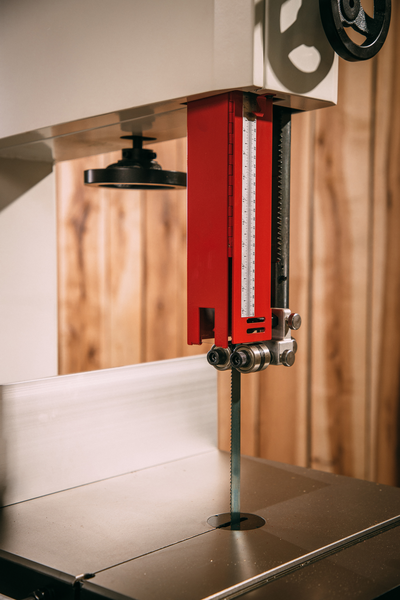

• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability

Machine Specs

Band Saw Size/Wheel Diameter (In.) 20-1/4
Cutting Capacity Width (In.) 20
Cutting Capacity Height (In.) 16
Blade Length (In.) 158
Blade Speed (SFPM) 2530/4850
Table Size (L x W) (In.) 27-1/4 x 20 x 1-5/8
Blade Width (In.) 1″ x 3TPI
Maximum Saw Blade Width (In.) 1-1/2
Minimum Saw Blade Width (In.) 1/8
Table Tilt (Deg.) -5,45
Table Height from Floor (In.) 37
Dust Collection Minimum CFM Required (CFM) 400
Dust Port Outside Diameter (In.) 4 (x2)
Motor Power (HP) 5
Motor Phase (PH) 1
Motor Voltage (V) 230 onnly
Motor Amps 22
Recommended Circuit Size (Amps.) 40
