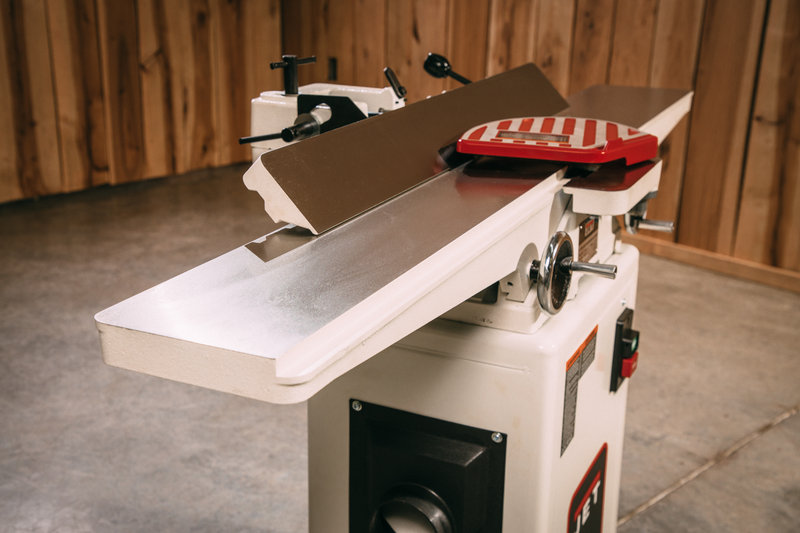

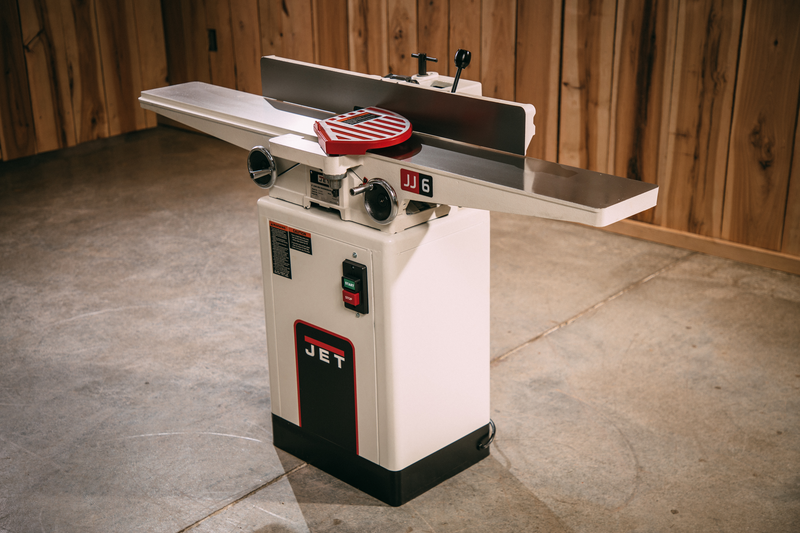

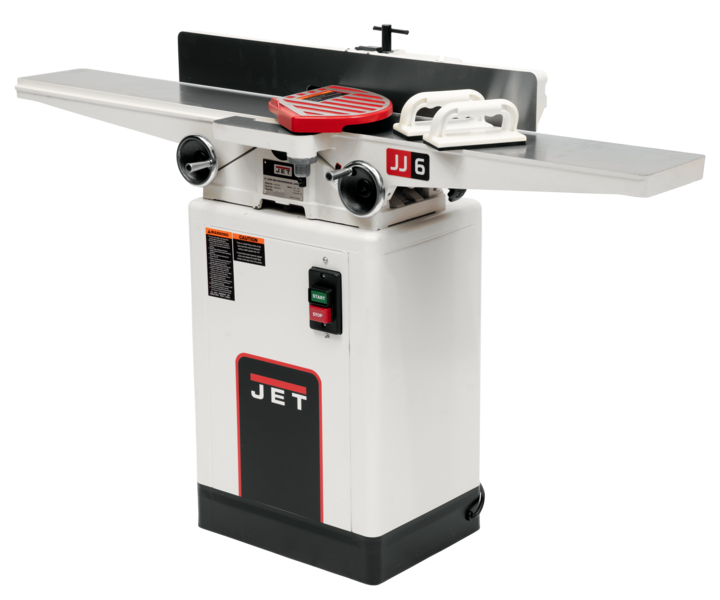

Jet JJ-6CSDX, 6″ Deluxe Jointer with QS Knives

Jet JJ-6CSDX, 6″ Deluxe Jointer with QS Knives

$1,399.99

In stock!

If you are looking for a Jointer that squares your wood, every time; look no further. The JET 6″ Long Bed Jointer offers one of the longest working surfaces in its’ class. With the addition of an exclusive auto-set quick change knife system you can replace or change all three blades in a fraction of the time other machines take. Make the JET 6″ Long Bed Jointer the next high performance machine for your shop.

SKU: JT9-708457DXK Categories: , ,

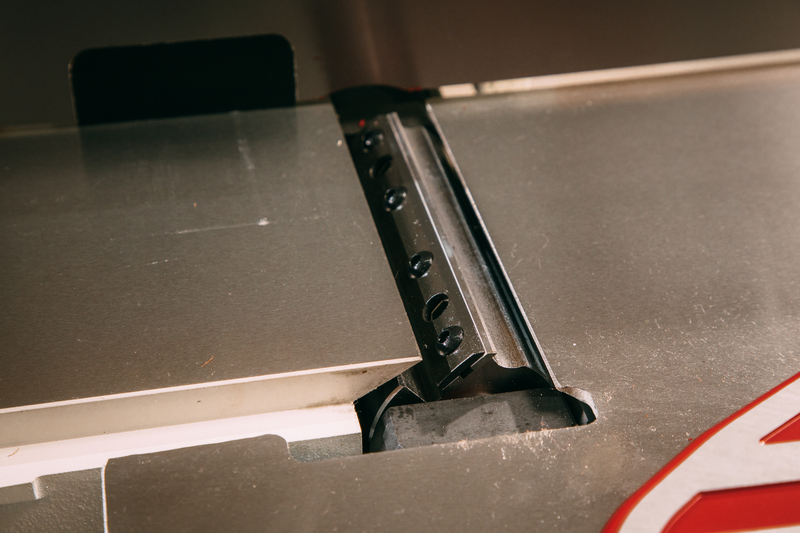

• Three high-speed steel quick change knives provide rapid cutting, a superior finish and eliminates the need for a knife setting gauge
• Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish
• Built-in rabbeting ledge adds versatility
• Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations

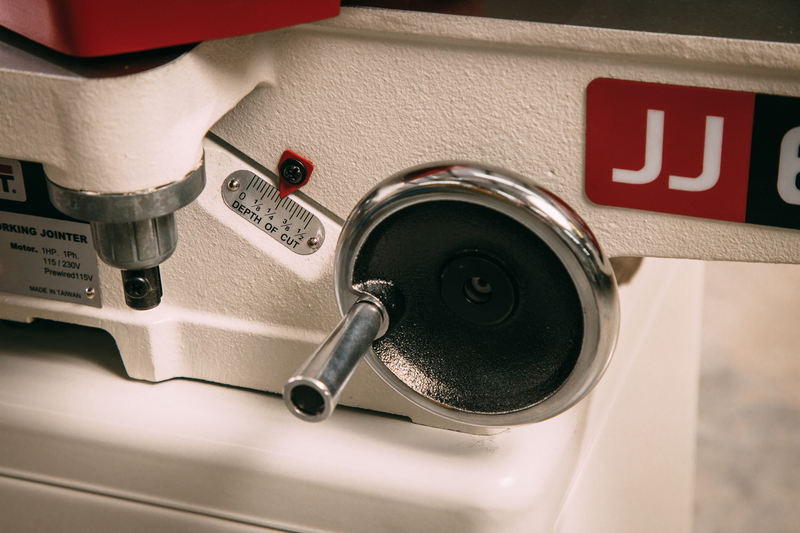

• Exclusive front-mounted table adjustment handwheels make quick, easy and accurate corrections
• Industrial push-button controls are conveniently placed for easy access
• Built-in dust chute with 4″ port connects to your collection system for efficient dust/chip disposal
• Center fence controls are conveniently mounted to allow quick adjustments
• Powerful 1HP motor easily handles the toughest jointing tasks
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability

Machine Specs

Number of Knives 3
Helical Knife Size (L x W x T) (In.) 6-1/16 x 3/4 x 5/64
Standard Knife Size (L x W x T) (In.) 6-1/6 x 3/4 x 5/64
Cutterhead Speed (RPM) 6000
Cutting Capacity (W x D) (In.) 6-1/16 x 1/2
Table Size (L x W) (In.) 56 x 7-3/8
Table Height from Floor (In.) 31-1/4
Rabbeting Capacity (In.) 1/2
Rabbeting Ledge (In.) 3-1/8 x 8-3/4
Fence Size (L x H) (In.) 32-3/4 x 3-7/8
Fence Tilt (Deg.) 45 L, 45 R
Fence Positive Stops (Deg.) 45, 90 L, 90 R
Dust Collection Minimum CFM Required (CFM) 350
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1
Motor Voltage (V) 115/230
Prewired Voltage (V) 115
Motor Phase (PH) 1
Motor Amps 13/6.5
Recommended Circuit Size (Amps.)
