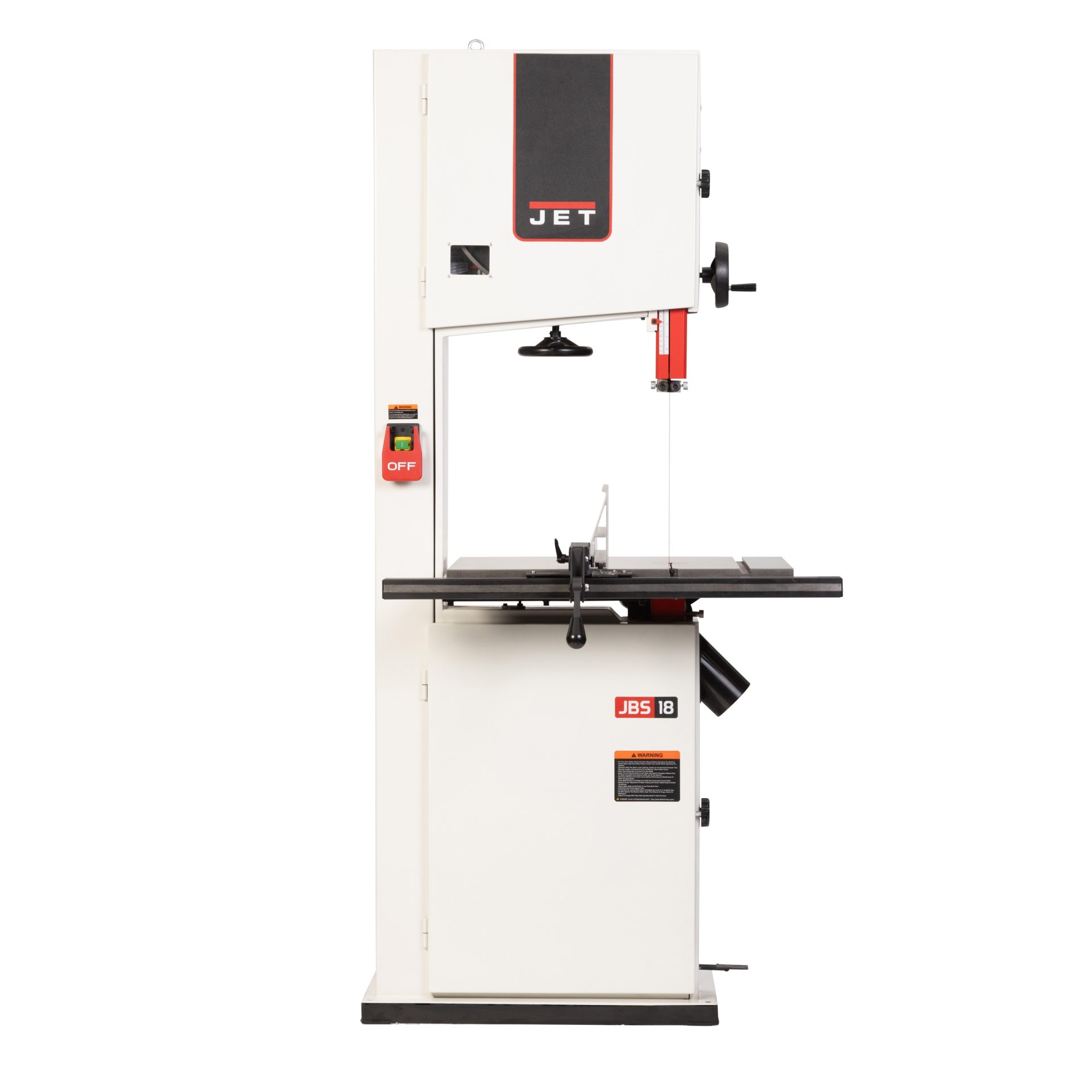

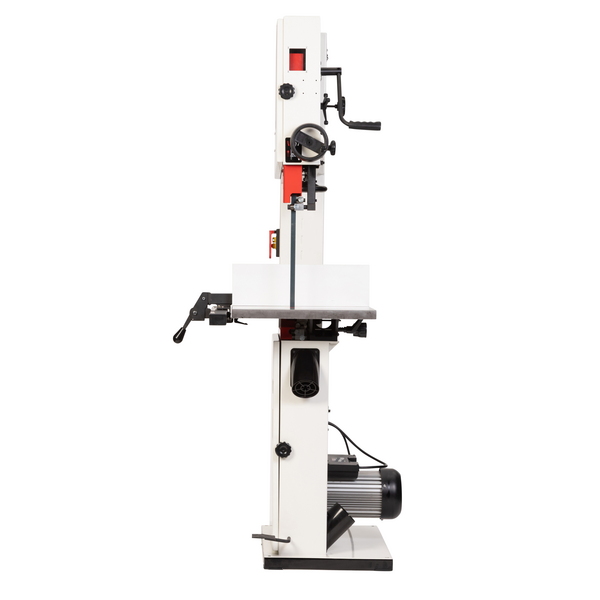

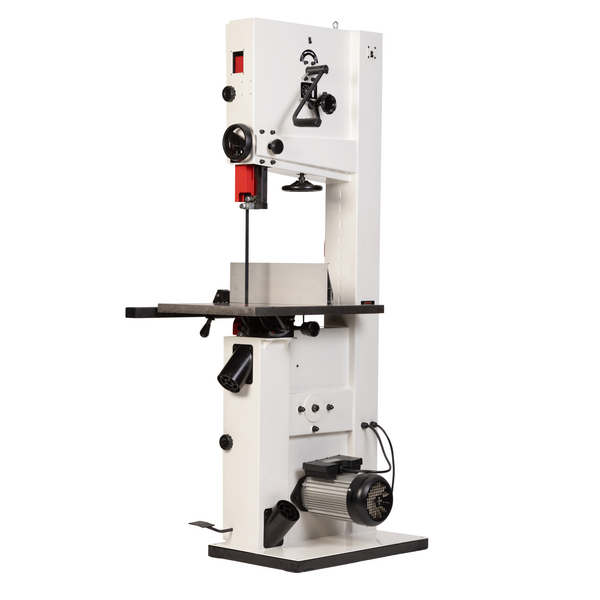

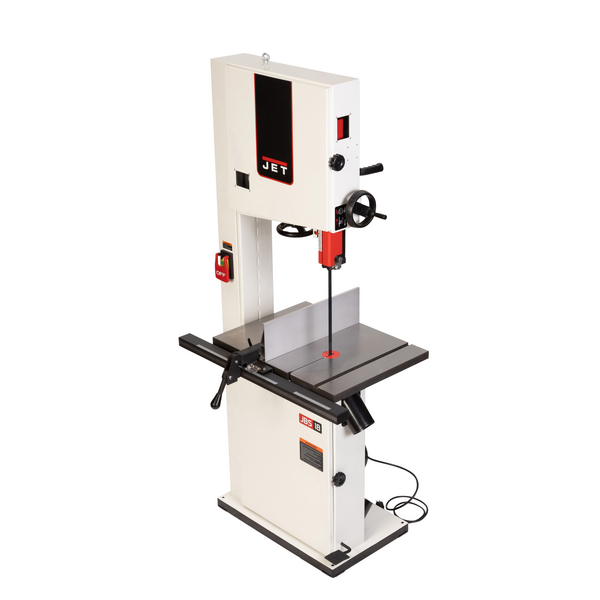

JET JWBS-18SFX-3 18″ Bandsaw

JET JWBS-18SFX-3 18″ Bandsaw

$2,799.99

In stock!

The JET JWBS-18SFX-3 is a robust 18” bandsaw designed for professional and hobbyist woodworkers. With its powerful 3HP motor running on a 230V power supply, this bandsaw offers exceptional re-saw capacity and a deeper throat depth, allowing users to handle intricate cuts effortlessly. Safety features include a convenient foot brake, while the ergonomic design ensures smooth adjustments and optimal blade support via a rigid, four-sided guide post with rack and pinion adjustment. The dual 4″ dust collection ports keep your workspace clean. Plus, the tilting table (5° left and 45° right) accommodates various cutting angles, making it versatile for diverse projects. Crafted for durability and stability, the JET JWBS-18SFX-3 is your go-to tool for precise, high-quality woodworking.

SKU: JT1-548 Categories: , , Tags: , ,
  • Powerful 3HP Motor: Handles large, tough cuts with ease, perfect for heavy-duty woodworking projects.
  • Foot Brake Safety: Blade stoppage for enhanced user safety and accident prevention.
  • Ergonomic Adjustments: User-friendly knobs and handwheels ensure smooth and precise adjustments.
  • Clear Blade Tracking: Transparent window for easy and accurate blade alignment.
  • Dual 4″ Dust Ports: Efficiently captures dust and chips at the source, maintaining a clean work environment.
  • Quick Release Tensioning: Heavy-duty system with an easy-to-read scale for fast and efficient blade tension adjustments.
  • Optimal Blade Support: Rigid, four-sided guide post with rack and pinion adjustment for superior blade stability.
  • Stable Cast Iron Trunnion: Provides maximum support and stability during operation.
  • Versatile Cutting Angles: Table tilts 5° left and 45° right to accommodate a wide variety of cuts.
Machine Specs

Stock Number JT1-548
Model Number JWBS-18SFX-3
Warranty 5 Year
Blade Wheel Diameter (In.) 18-1/2
Wheel Speed (RPM) 6400
Blade Length (In.) 150
Maximum Saw Blade Width (in) 1-1/4
Minimum Saw Blade Width (In.) 1/8
Cutting Capacity Height (In.) 16
Cutting Capacity Width (In.) 18
Dust Port Outside Diameter (In.) 4
Dust Collection Minimum CFM Required (CFM) 600
Table Size (L x W) (In.) 27-1/4 x 20
Table Tilt (Deg.) Left 5, Right 45
Prewired Voltage (V.) 230
Motor Power (HP) 3
Motor Voltage (V.) 230
Motor Phase Single
Recommended Circuit Size (Amps.) 20
Motor Amps 15
Table Height from Floor (In.) 37
Net Weight (Lbs.) 406
Gross Weight (Lbs) 502
Prop 65 Cancer and Reproductive Harm
Table T-Slot (In.) 3/4
Gross Weight 502
