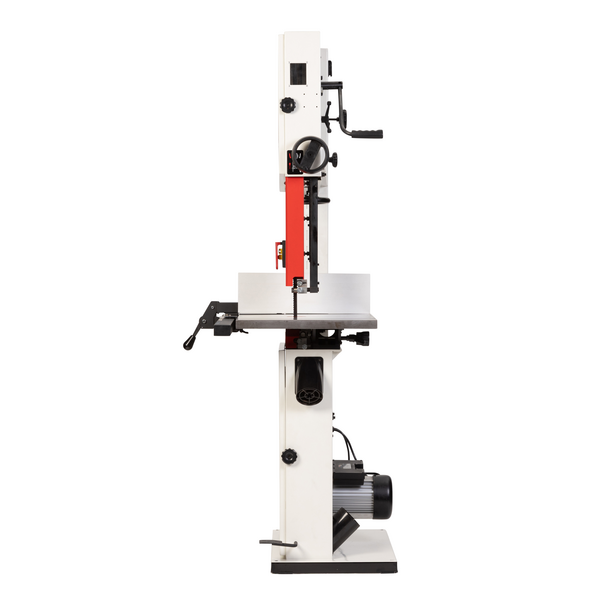

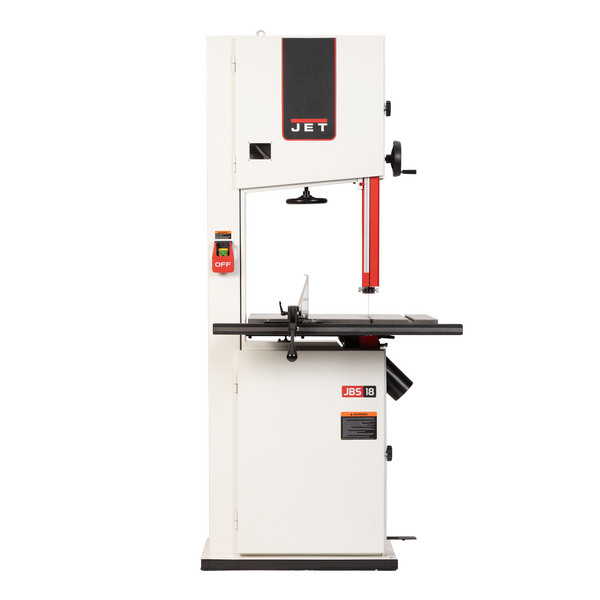

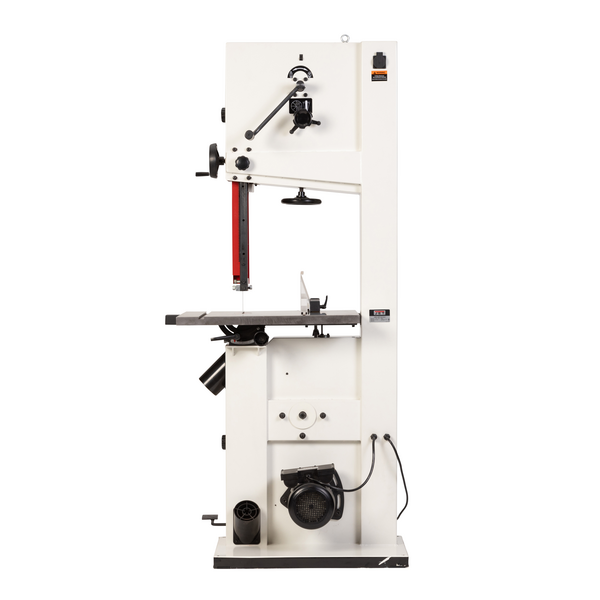

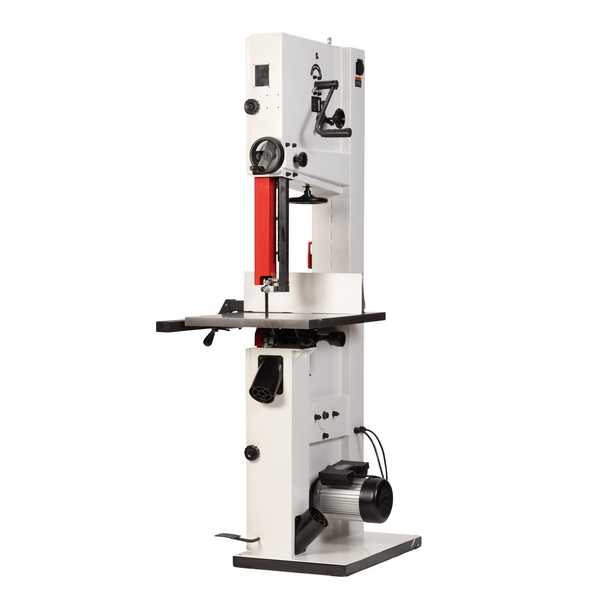

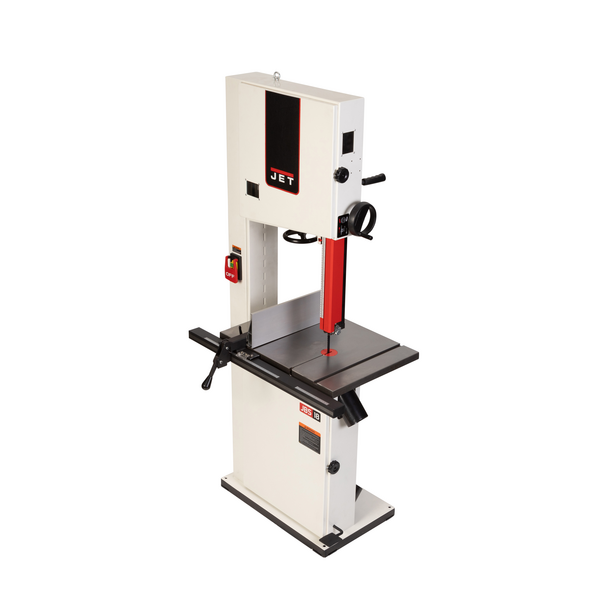

JET JWBS-18SFX, 18″ Bandsaw 1.75HP 1PH 115V

JET JWBS-18SFX, 18″ Bandsaw 1.75HP 1PH 115V

$2,699.99

In stock!

The JET JWBS-18SFX is a robust 18″ bandsaw designed to meet the needs of both amateur and professional woodworkers. Powered by a 1.75HP motor running on a standard 115V outlet, this versatile tool provides ample power for a wide range of woodworking tasks. It shares premium features with the 3HP model, including a safety foot brake, ergonomically-designed knobs, and a clear view window for precise blade tracking. The dual 4″ dust collection ports ensure efficient removal of sawdust and chips, maintaining a clean working environment. With a tilting table that ranges from 5° left to 45° right, the JET JWBS-18SFX allows for versatile cutting angles. Its sturdy cast iron trunnion ensures maximum stability, while the heavy-duty fence system delivers consistent and accurate cuts. An excellent addition to any woodworking shop!

SKU: JT1-549 Categories: ,
  • Efficient 1.75HP Motor: Provides ample power for a variety of woodworking tasks, ideal for home and professional use.
  • Safety Foot Brake: Ensures immediate blade stoppage for enhanced safety.
  • User-Friendly Adjustments: Ergonomically-designed knobs and handwheels for smooth and precise modifications.
  • Blade Tracking Window: Offers a clear view for accurate blade tracking.
  • Effective Dust Collection: Dual 4″ ports collect dust and chips at the source, keeping your workspace clean.
  • Quick Blade Tensioning: Heavy-duty system with a visible scale for quick and easy blade tension adjustments.
  • Superior Blade Support: Rigid, four-sided guide post with rack and pinion adjustment for optimal stability.
  • Durable Cast Iron Trunnion: Ensures maximum support and stability during cutting operations.
Machine Specs

Stock Number JT1-549
Model Number JWBS-18SFX
Warranty 5 Year
Blade Wheel Diameter (In.) 18-1/2
Wheel Speed (RPM) 6400
Blade Length (In.) 150
Maximum Saw Blade Width (in) 1-1/4
Minimum Saw Blade Width (In.) 1/8
Cutting Capacity Height (In.) 16
Cutting Capacity Width (In.) 18
Dust Port Outside Diameter (In.) 4
Dust Collection Minimum CFM Required (CFM) 600
Table Size (L x W) (In.) 27-1/4 x 20 x 1-5/8
Table Tilt (Deg.) Left 5, Right 45
Prewired Voltage (V.) 115
Motor Power (HP) 1.75
Motor Phase Single
Recommended Circuit Size (Amps.) 20
Motor Amps 12
Table Height from Floor (In.) 37
Net Weight (Lbs.) 383
Gross Weight (Lbs) 470
Prop 65 Cancer and Reproductive Harm
Table T-Slot (In.) 3/4
Gross Weight 570
