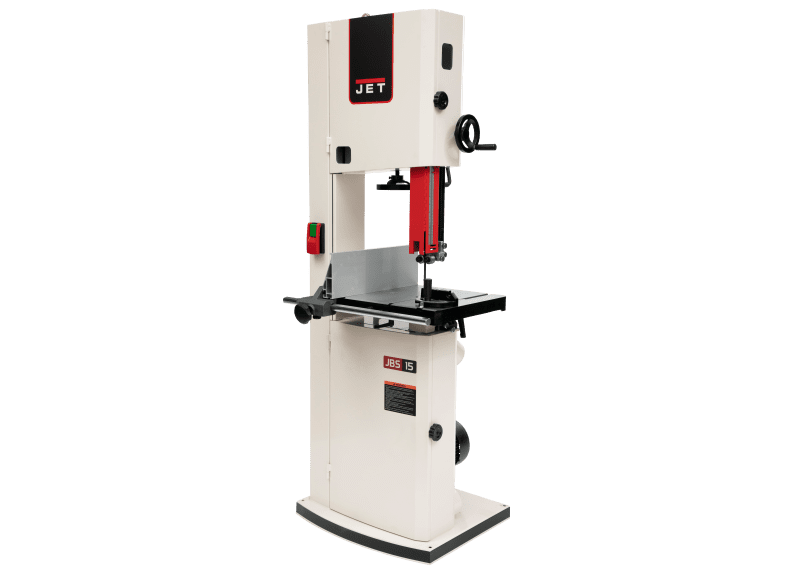

JET JWBS-15 15″ Bandsaw 1.75HP

JET JWBS-15 15″ Bandsaw 1.75HP

$2,399.99

In stock!

Designed to perform, the JET 15” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 15” steel frame bandsaw is engineered to build great projects through superior performance.

• 14″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
• 21-1/2″ x 16″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides

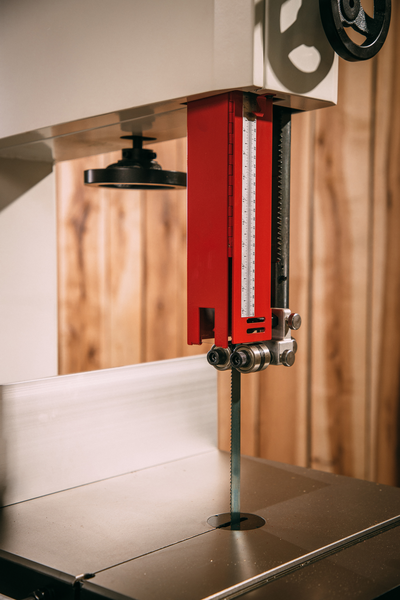

• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking

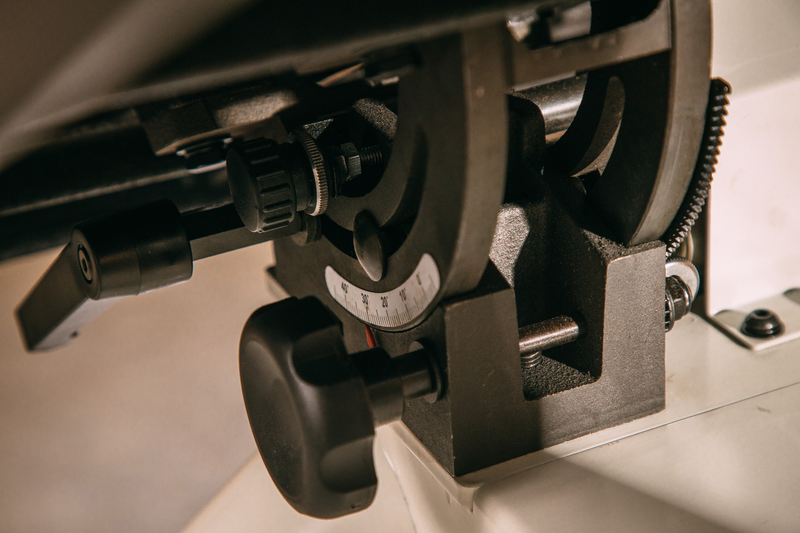

• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability

Machine Specs

Band Saw Size/Wheel Diameter (In.) 14-3/4
Cutting Capacity Width (In.) 14-1/8
Cutting Capacity Height (In.) 14
Blade Length (In.) 133
Blade Speed (SFPM) 3100
Table Size (L x W) (In.) 21-1/2 x 16 x 2
Blade Width (In.) 1/2″, 6TPI
Maximum Saw Blade Width (In.) 1
Minimum Saw Blade Width (In.) 1/8
Table Tilt (Deg.) -5,45
Table Height from Floor (In.) 35
Dust Collection Minimum CFM Required (CFM) 400
Dust Port Outside Diameter (In.) 4 (x2)
Motor Power (HP) 1-3/4
Motor Phase (PH) 1
Motor Voltage (V) 115/230
Prewired Voltage (V) 115
Motor Amps 15/7.5
Recommended Circuit Size (Amps.) 20
