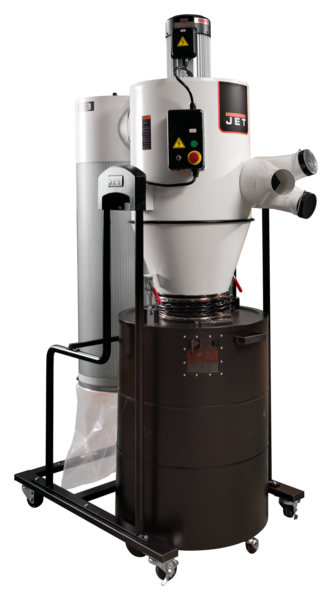

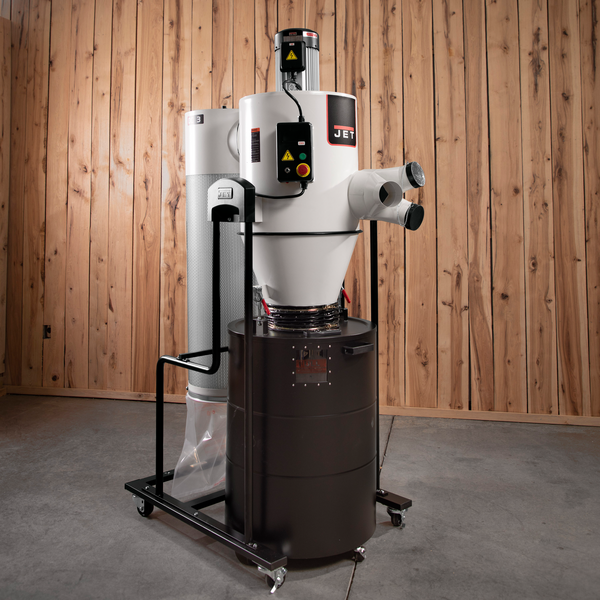

Jet JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V

Jet JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V

$2,499.99

In stock!

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

• The cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends

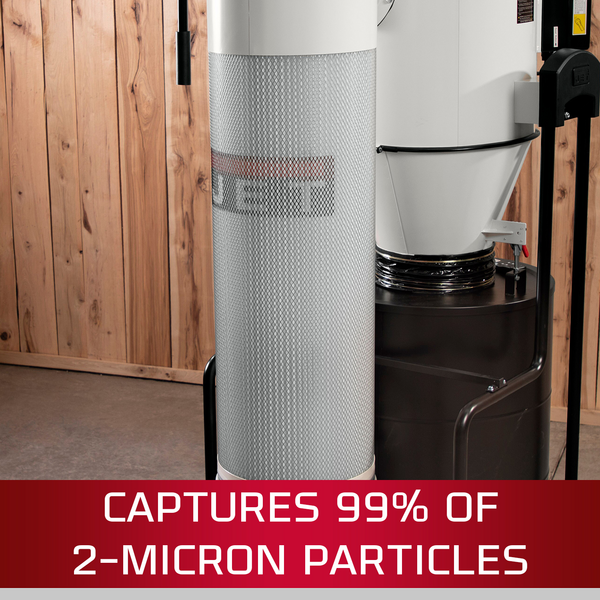

• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff

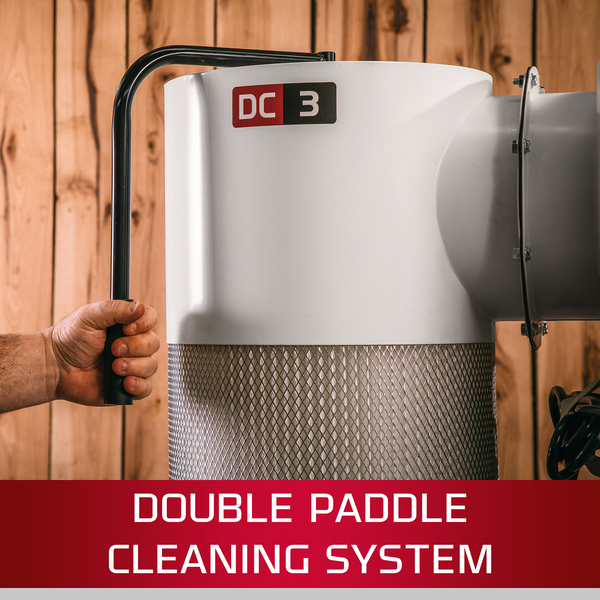

• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

Machine Specs

Air Velocity (US Method) @ 8″ (FPM) 3,542 (18.0 m/s)
Air Velocity (EU Method) @ 8″ (FPM) 5,609 (28.5 m/s)
Static Pressure Loss (US Method) (Wc.) 1.260
Static Pressure Loss (EU Method) (Wc.) 2.047
Max. Static Pressure (Wc.) 8.976
MERV Value 13
Filter Efficiency (Micron) 1
Efficiency (Micron) 99% of 2 micron particles
Canister Filter Length (In.) 38-3/8
Canister Filter Diameter (In.) 14-9/16
Canister Collection Bag (Dia. x L/In.) 23-5/8 x 19-11/16
Filter Bag/Canister Length (In.)
Collection Bag Capacity (Cu. Ft.)
Collection Bag Length (In.)
Bag Diameter (In.)
Collection Drum Capacity (gal.) 55
Drum Collection Bag (Dia. x L/In.) 38-9/16 x 47-1/4
Impeller Material Steel
Impeller Diameter (In.) 15
Impeller Fins Radial
Sound Rating (Db.) 76

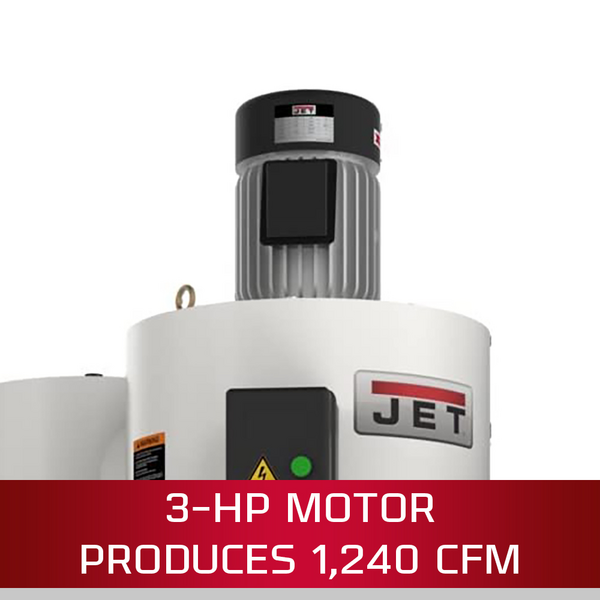

Motor Speed (RPM) 3,450
Motor Power (HP) 3
Motor Phase (PH) 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Amps 13
Recommended Circuit Size (Amps.) 20A
Wiring Remarks
Footprint (L x W/In.) 57 x 30-7/16
Assembled Dimensions (L x W x H/In.) 30-7/16 x 57 x 88
