DS20, 20″ Disc Sander, 3HP, 3Ph, 230V/460V

DS20, 20″ Disc Sander, 3HP, 3Ph, 230V/460V


In stock!

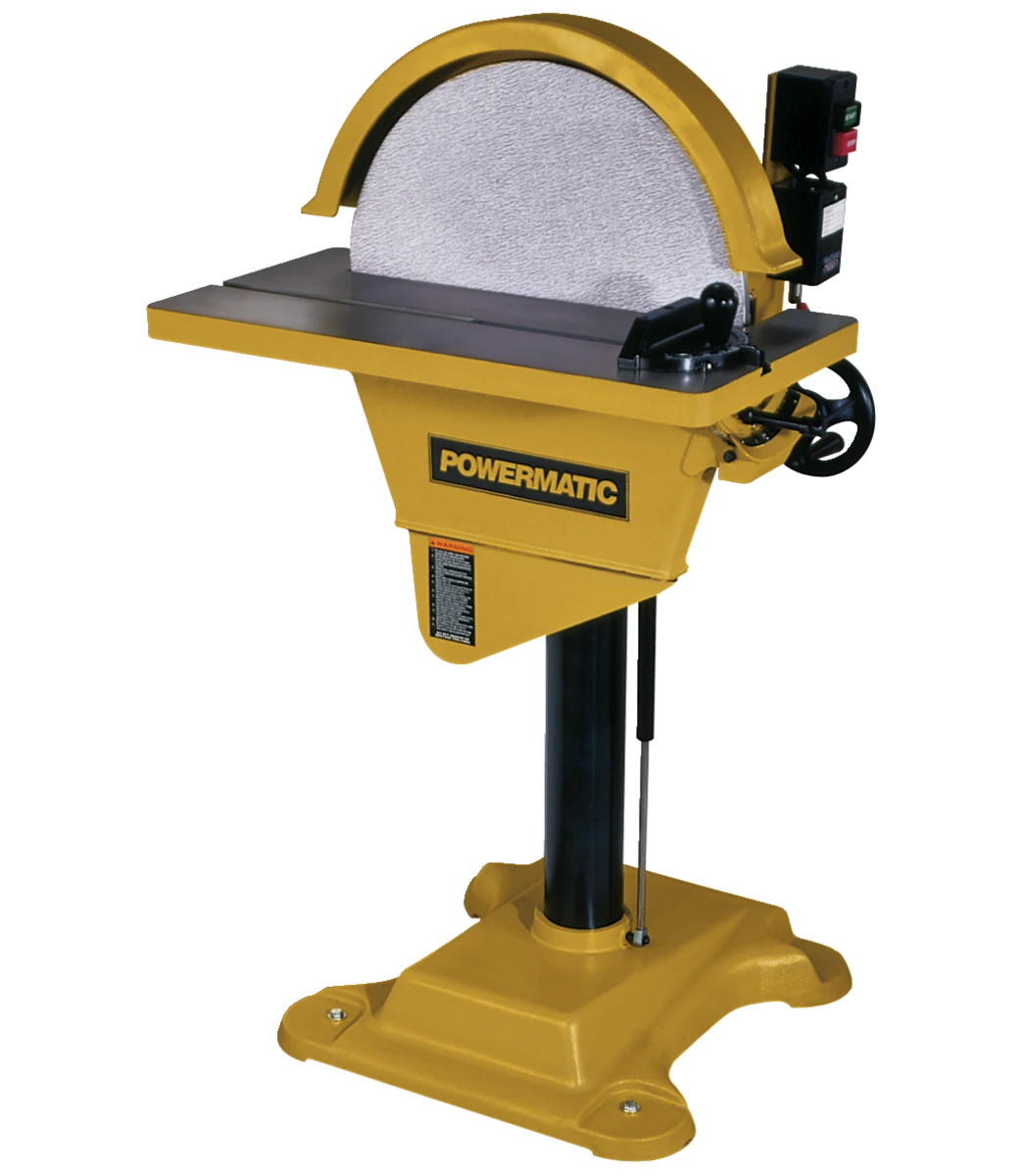

The Powermatic DS20 20″ Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.

• 20″ sanding disc for larger capacity
• The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
• Direct drive from motor to disc for maximum efficiency
• Forward and reverse switch for additional usage
• Tilting table allows bevel sanding
• Miter gauge for angle sanding

Machine Specs

Style (Type) Disc
Disc Diameter (In.) 20
Disc Speed (RPM) 1,720
Disc Table Tilt (Deg.) 30 Up, 45 Down
Disc Table Size (L x W) (In.) 10-1/2 x 27-1/2
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 3
Motor Phase 3
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Motor Current (Amps) 9.8/4.9
Recommended Circuit Size (Amps.) 20/15
