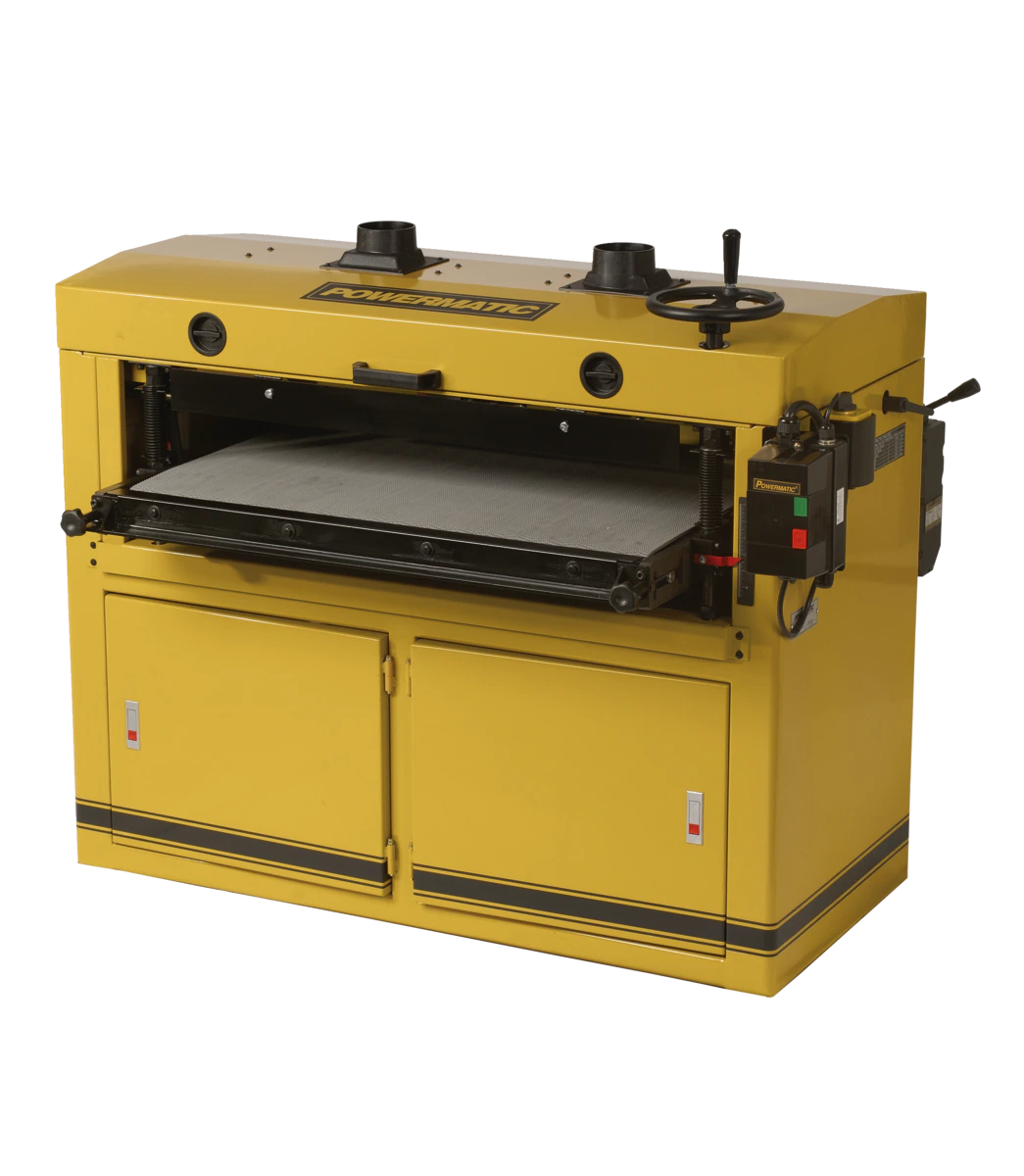

DDS-237, 37″ Dual Drum Sander, 10HP, 3PH, 230

DDS-237, 37″ Dual Drum Sander, 10HP, 3PH, 230

$9,099.99

In stock!

The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 10HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.

• Dual drum head for superior finish
• Two-speed gearbox for wide range of sanding projects.
• Forward/reverse conveyor belt grips stock evenly
• Independently adjustable rear drum for fine tuning
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Full size cast iron table for solid support
• Dual dust ports with directional baffles for more efficient dust removal

Machine Specs

Style (Type) Drum
Drum Length (In.) 37
Number of Sanding Drums 2
Drum Speed (RPM) 1,700
Drum Diameter (In.) 6
Conveyor Motor (HP) 1/4
Conveyor Speed (FPM) 8 and 12
Maximum Board Thickness (In.) 5-1/4
Maximum Board Width (In.) 37
Minimum Board Length (In.) 9
Minimum Board Thickness (In.) 1/32
Dust Collection Minimum CFM Required (CFM) 1200
Dust Port Outside Diameter (In.) Two @ 4″
Motor Power (HP) 10
Motor Phase 3
Motor Voltage (V.) 230 Only
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 35/20
