The JET® DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

SKU: JT9-710704K Categories: , , Tags: ,

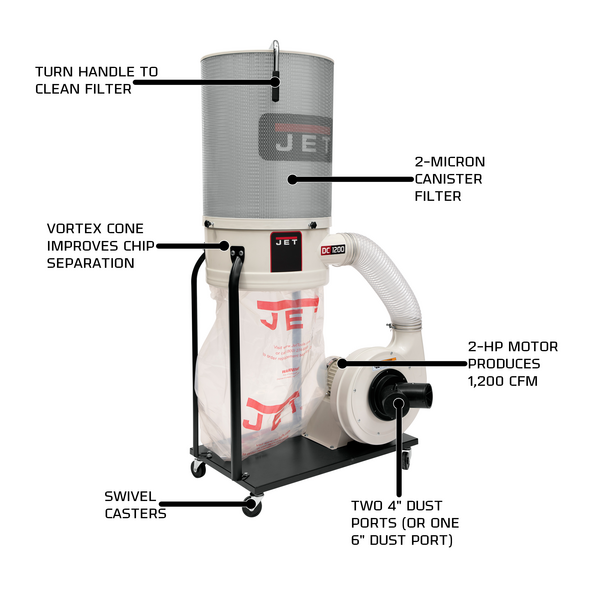

• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

Machine Specs

Number of Air Inlets 1 at 6″, 2 at 4″
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Air Flow @ 4″ (CFM) 1200
Style (Type) Canister
Velocity @ 4″ (FPM) 13,745
Static Pressure (Wc.) 11-1/2
Efficiency (Micron) 2
Filter Bag/Canister Length (In.) 25
Collection Bag Capacity (Cu. Ft.) 5-3/10
Collection Bag Length (In.) 29
Bag Diameter (In.) 20
Impeller Material Steel
Impeller Diameter (In.) 12
Sound Rating (Db.) 80 – 85
Motor Power (HP) 2
Motor Phase (PH) 3
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Motor Amps 6/3
