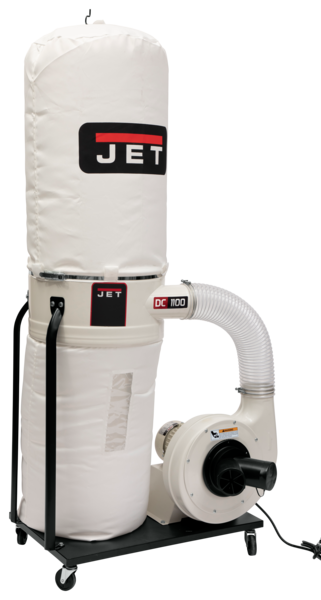

Jet DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit

Jet DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit
Jet DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit - Image 2
Jet DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit - Image 3

Jet DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit

$629.99

In stock!

The JET® DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop. Visit http://www.vortexcone.com for more information.

SKU: JT9-708657K Categories: , , , Tags: ,

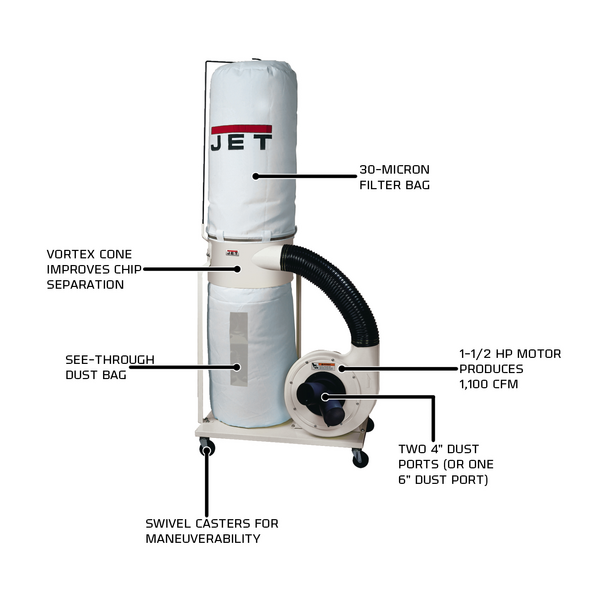

• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

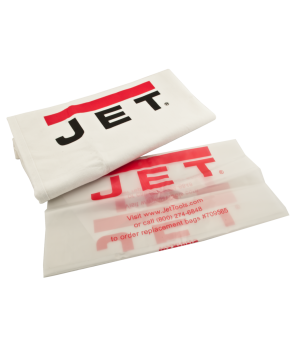

Optional Canister Filter Upgrade Kit Available

Machine Specs

Number of Air Inlets 1 at 6″, 2 at 4″
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Air Flow @ 4″ (CFM) 1100
Style (Type) Bag
Static Pressure (Wc.) 10-1/2
Efficiency (Micron) 30
Filter Bag/Canister Length (In.) 32
Collection Bag Capacity (Cu. Ft.) 5-3/10
Collection Bag Length (In.) 30
Bag Diameter (In.) 20
Impeller Material Steel
Impeller Diameter (In.) 11
Sound Rating (Db.) 70 – 80
Motor Power (HP) 1-1/2
Motor Phase (PH) 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Amps 11/5.5
