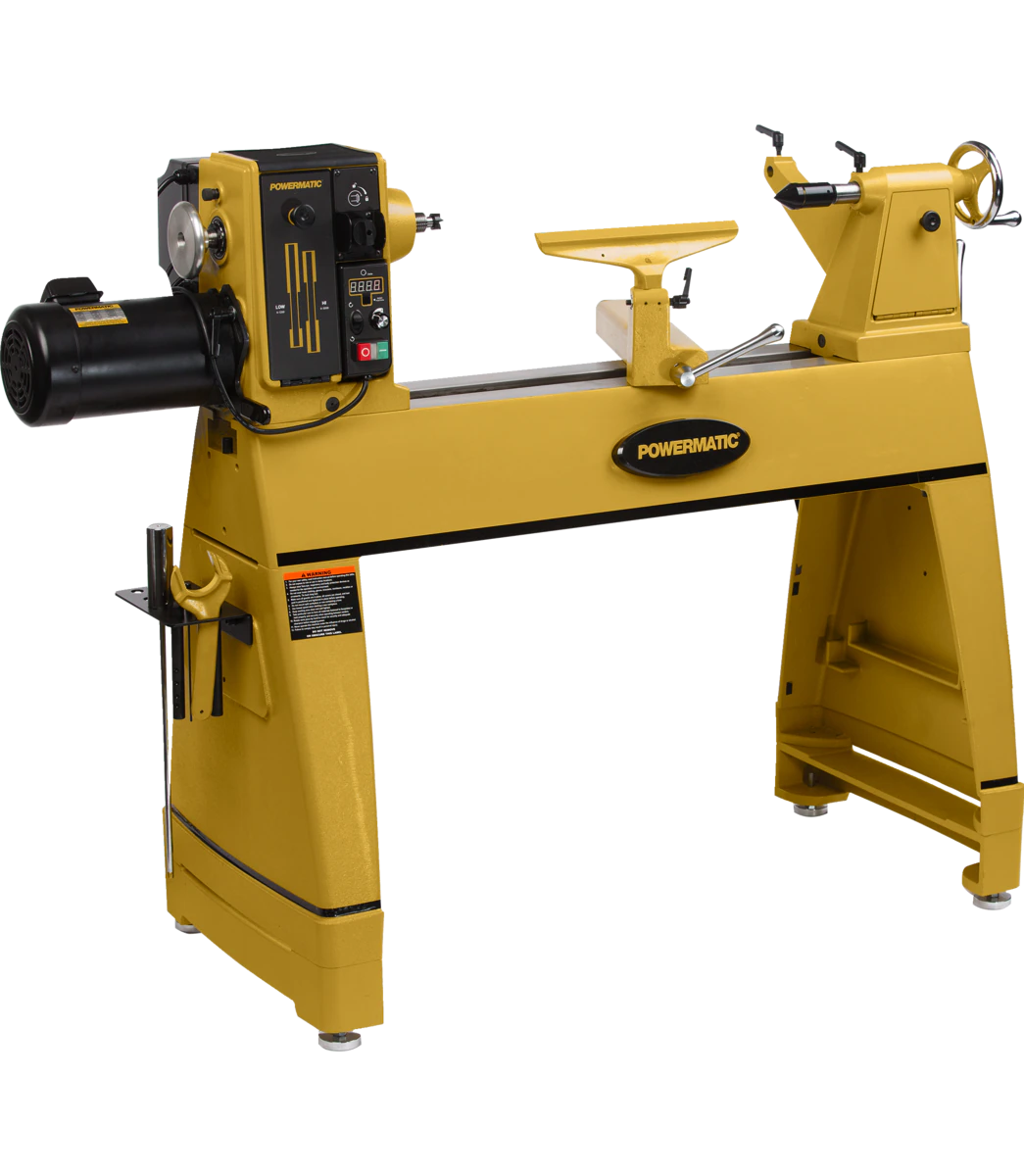

3520C Lathe, 2HP, 1PH, 220V

3520C Lathe, 2HP, 1PH, 220V


In stock!

The Powermatic® 3520C is the fourth evolution of the time honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment, and an increased weight of 726 LBS (814 LBS with the bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.

• Digital indexing readout simplifies the indexing process for added precision
• Magnetic-backed moveable control box for customizable versatility and safety
• Adjustable risers blocks for 4 inches of height adjustment,allowing maximum comfort when turning
• Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
• Extended spindle nose increased access to the work piece
• Able to maintain speeds as low as 15 RPM
• Tailstock incorporates anti-rotation key and Acme threads for smoother operation and increased longevity
• Self-locating ergonomic spindle lock design for easy, one handed operation
• Fully enclosed VFD for increased user protection
• Main power disconnect switch located on rear of headstock

Machine Specs

Size (In.) 20
Style (Type) Leg Stand
Swing Over Bed (In.) 20
Swing Over Tool Rest Base (In.) 15-3/4
Distance Between Centers (In.) 36 w/dual bearing center
Headstock Movement Full Length of Bed
Spindle Bore 5/8
Tailstock Bore 3/8
Spindle Taper MT-2
Quill Taper MT-2
Ram Travel Quill Travel 4-1/2″
Spindle Threads (In. x TPI) 1-1/4″ x 8 TPI
Outboard External Threads (In. x TPI) 1-3/16-18UNC
Spindle Speeds Low 15-1200/High 40-3200
Speed Range 15-1200, 40-3200
Number of Indexing Positions 48
Centerline of Spindle to Floor (In.) 40-5/8 without Risers
Outboard Turning 38
Bed Construction Cast Iron
Motor Power (HP) 2
Motor Phase 3
Motor Voltage (V.) 230 only
Prewired Voltage (V.) 230 only
Wiring Remarks Single Phase ONLY
Motor Current (Amps) 6.2
Recommended Circuit Size (Amps.) 20
