Jet 15″ Straight Knife Planer, JWP-15B

Jet 15″ Straight Knife Planer, JWP-15B

$2,399.99

In stock!

For projects that require board thickness to be beyond exact, the New JET 15” Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two speed gear box to adjust your feed rate for a better finished surface. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. Its rock-solid table is constructed of cast iron and features Steel infeed/outfeed table extensions that conveniently fold out of the way. And because even the coolest power planer is one of the messiest machines on the planet, JET’s angled 4″ dust port keeps your dust hose out of the way for easy hookup on your shop’s dust collection system.

• Innovative JET – Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe

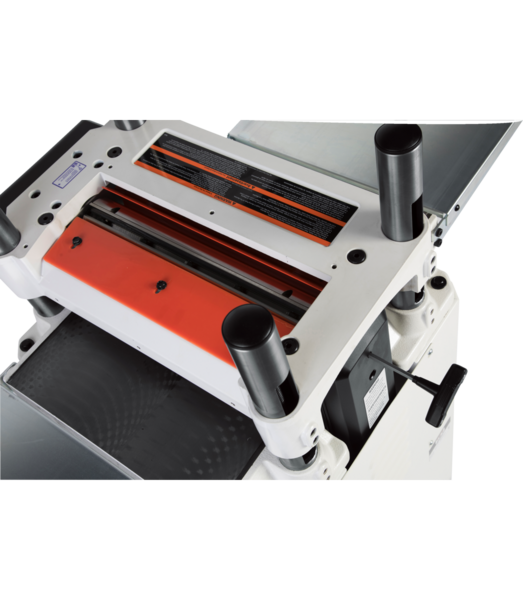

• Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
• Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
• Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
• Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
• Maximum depth of cut 1/8″, 6″ cutting height and 15″ width capacity

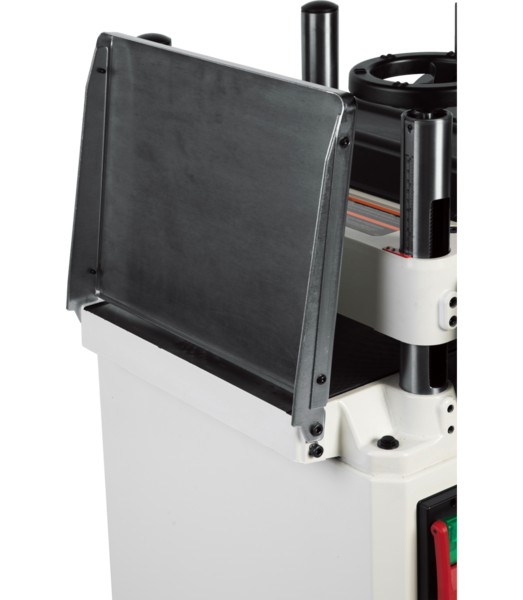

• Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience
• Large hand wheel with positive gear drive easily moves the head to the desired board thickness
• Magnetic Switch with green safety light illuminates when powered

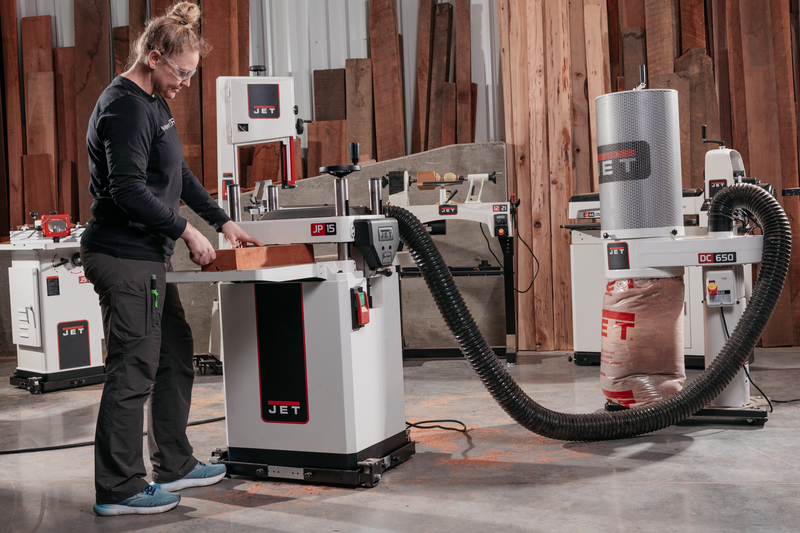

• 4″ Dust Port hooks up to dust management system and helps keep shop clean

Machine Specs

Style (Type) Floorstanding Model
Type of Cutterhead Straight Knife
Cutterhead Speed (RPM) 5,200
Cutterhead Diameter (In.) 2-5/8″ (68mm)
Cuts Per Minute 15600
Number of Knives 3
Maximum Depth of Cut (In.) 3/16″
Maximum Full Width Depth of Cut (In.) 1/8″
Maximum Planing Width (In.) 15″
Maximum Planing Thickness (In.) 6″
Minimum Planing Length (In.) 5.6″
Feed Rate (FPM) 16 and 20
Number of Speeds 2
Table Size (L x W) (In.) 15 x 21.45 in.
Table Size with Extensions (L x W) (In.) 15 x 21.45 in.
Dust Collection Minimum CFM Required (CFM) 600 CFM
Dust Port Outside Diameter (In.) 4″ (102mm)
Motor Power (HP) 3
Motor Phase (PH) 1
Motor Voltage (V.) 230
Motor Amps 15

Voltage

230

Phase

Single Phase
