Jet 15″ Floorstanding Drill Press

Jet 15″ Floorstanding Drill Press

$1,199.99

In stock!

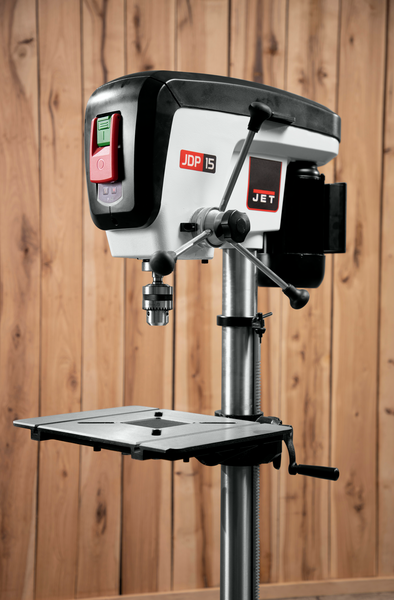

AVAILABLE MAY 2016 – the new JET JDP-15F, 15” Floorstanding Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2″ x 17″ work table.

SKU: JT9-716250 Categories: , , Tags: , , , , , , , , , , , , , , , , , ,

• Spindle travels a full 3-1/8” with one revolution of the handle

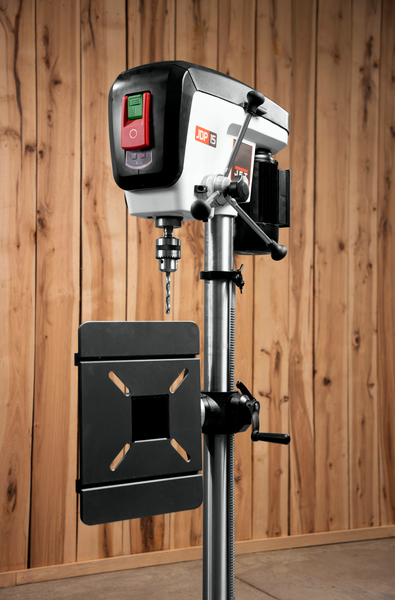

• Large 12-1/2″ x 17″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button

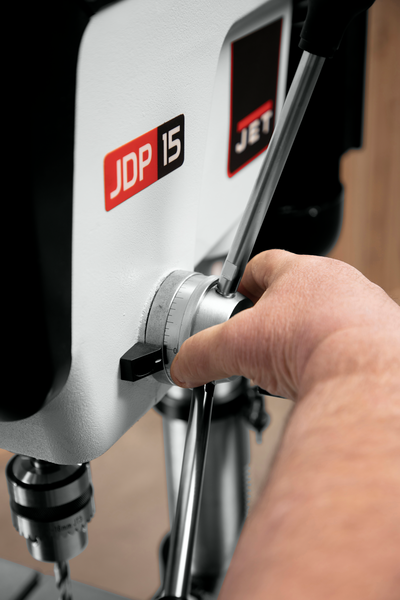

• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability

Machine Specs

Style (Type) Floorstanding Model
Swing (In.) 15
Spindle Travel (In.) 3-1/8
Number of Spindle Speeds 16
Spindle Taper MT2/JT3
Spindle Speed Range (RPM) 210 – 3500
Spindle Distance to Table (Max.) (In.) 30-1/2
Spindle Distance to Base (In.) 46-1/2
Table Size (L x W) (In.) 12-1/2 x 17
Table Tilt (Deg.) 45 Left and Right
Chuck Size (In.) 5/8
Column Diameter (In.) 2-3/4
Base Size (In.) 18-7/8 x 11-3/8
Motor Power (HP) 3/4
Motor Phase (PH) 1
Motor Voltage (V.) 115
Prewired Voltage (V) 115
Motor Amps 9
Weight (Lbs.) 172
Assembled Machine Dimensions (L x W x H) (In.) 27 x 17 x 63-1/4
Brand

Jet
Motor

3/4 HP
Phase

Single Phase
Voltage

115
