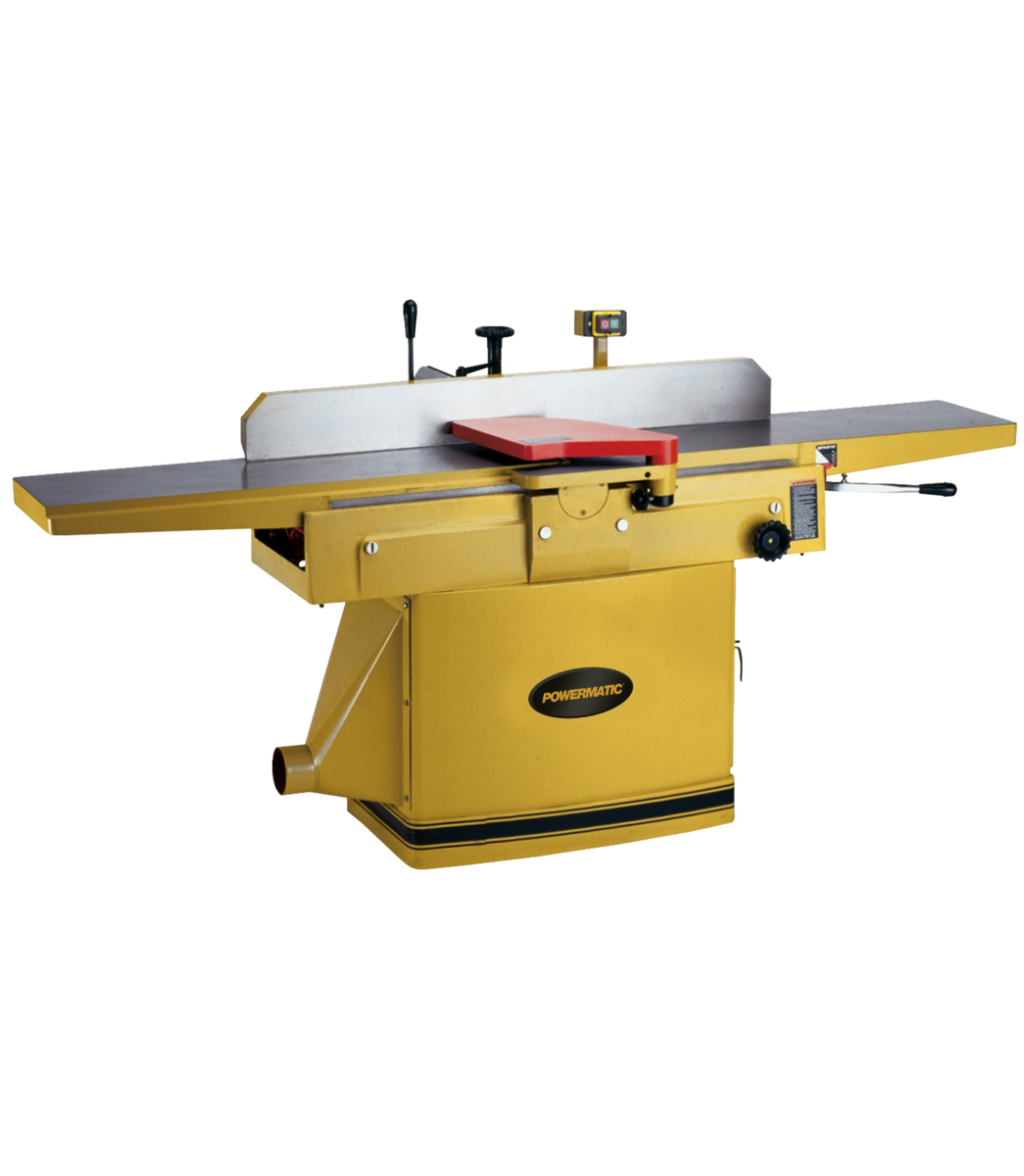

1285 12″ Jointer, 3HP, 1PH, 230V Only, Straight Knife

1285 12″ Jointer, 3HP, 1PH, 230V Only, Straight Knife

$7,299.99

In stock!

This 12″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.

• Straight knife cutterhead with 3 high speed steel knives create a clean cut
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Large 12″ x 84″ precision ground cast iron table surface for heavy-duty work
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Table “lips” on both sides of cutterhead aid in noise reduction
• Full size rabbeting ledge supports large workpieces for rabbets up to 3/4″ deep

Machine Specs

Type of Cutterhead Straight
Number of Knives 3 High Speed Steel Straight Knives
Cuts Per Minute 15,000
Cutterhead Speed (RPM) 5,000
Cutting Capacity (W x D) (In.) 11-3/4 x 3/4
Table Size (L x W) (In.) 84 x 12
Table Height from Floor (In.) 31-5/8
Rabbeting Capacity (In.) 3/4
Fence Size (L x H) (In.) 47-1/4 x 5-1/4
Fence Tilt (Deg.) 45 Forward, 45 Backward
Fence Positive Stops (Deg.) 45, 90, -45
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230 Only
Recommended Circuit Size (Amps.) 30
