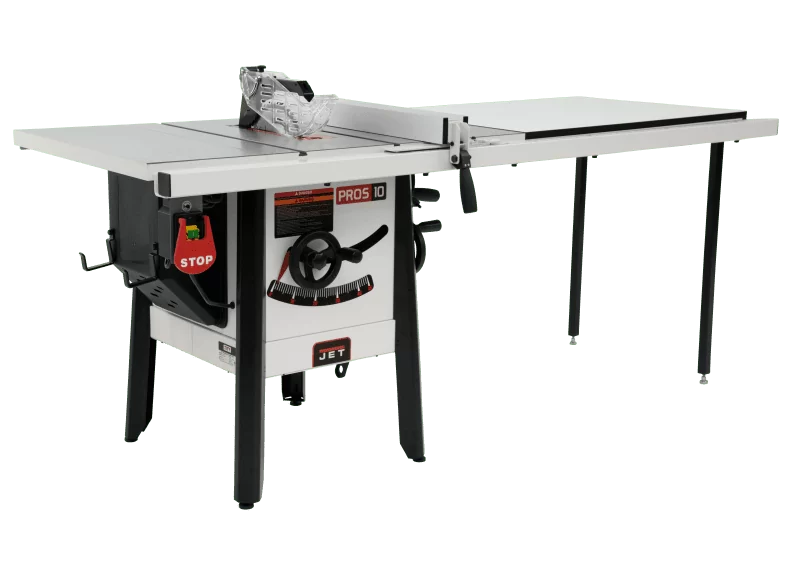

Style (Type) Contractor
Blade Diameter (In.) 10
Arbor Diameter (In.) 5/8
Arbor Speed (RPM) 4000
Maximum Depth of Cut (In.) 3-1/8
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8

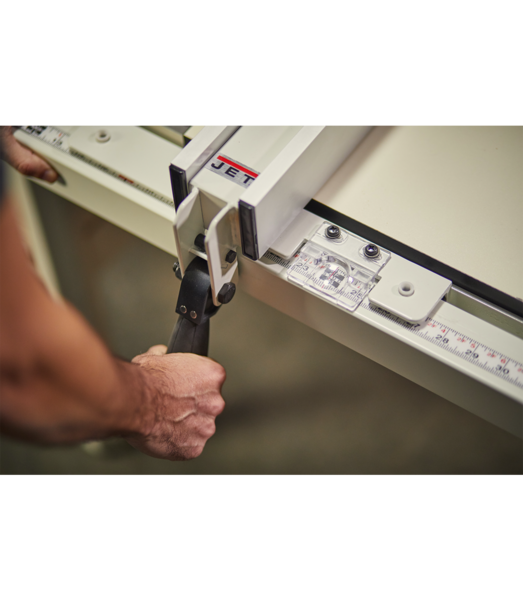

Maximum Rip Left of Blade (In.) 13-1/2
Maximum Rip Right of Blade (In.) 52
Table in Front of Saw Blade at Maximum Depth of Cut (In.) 8.81
Maximum Diameter of Dado (In.) 8
Maximum Width of Dado (In.) 13/16
Table Type Cast Iron
Table Height from Floor (In.) 34-3/4
Table Size (L x W) (In.) 20 x 27
Table Size with Extension (L x W) (In.) 44 x 27
Table Size with Full Extensions (L x W) (In.) 80 x 27
Miter Gauge Type T-Slot with Stops
Dust Collection Minimum CFM Required (CFM) 350
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1-3/4
Motor Phase (PH) 1
Motor Voltage (V.) 115
Prewired Voltage (V.) 115
Motor Amps 7.4
Recommended Circuit Size (Amps.) 10
