Specifications:
- Standard plate size – 9-1/4″ X 11-3/4″
- Built to handle larger 2.25 HP routers with 3.5” barrel diameter like Dewalt 610, 616, 618, PC 890 Series, Bosch 1617 (router sold separately)
- Removeable table inserts for larger bits
- Integrated 2 ¼” dust port

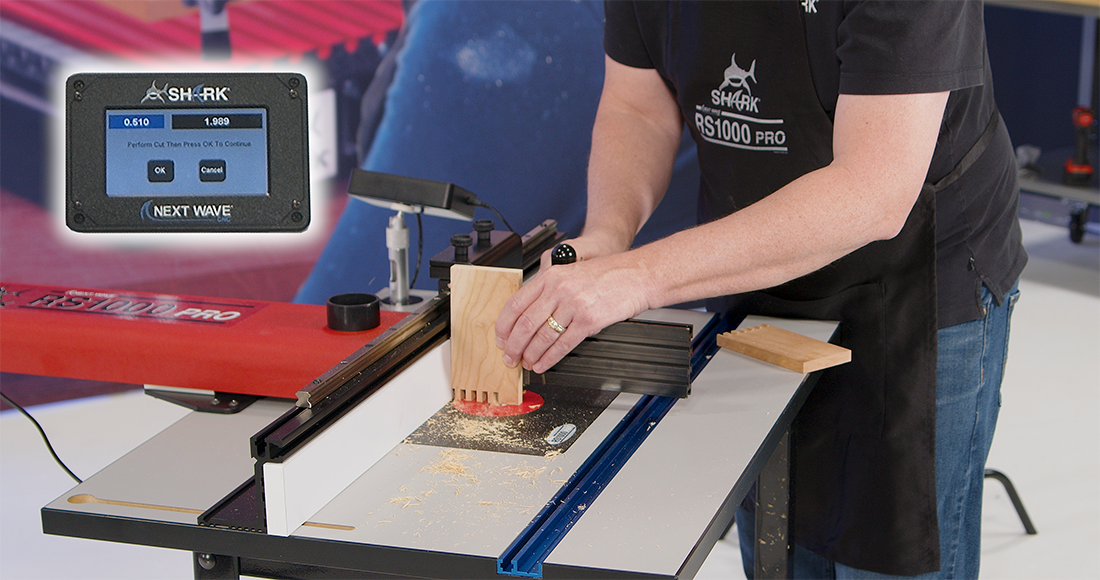

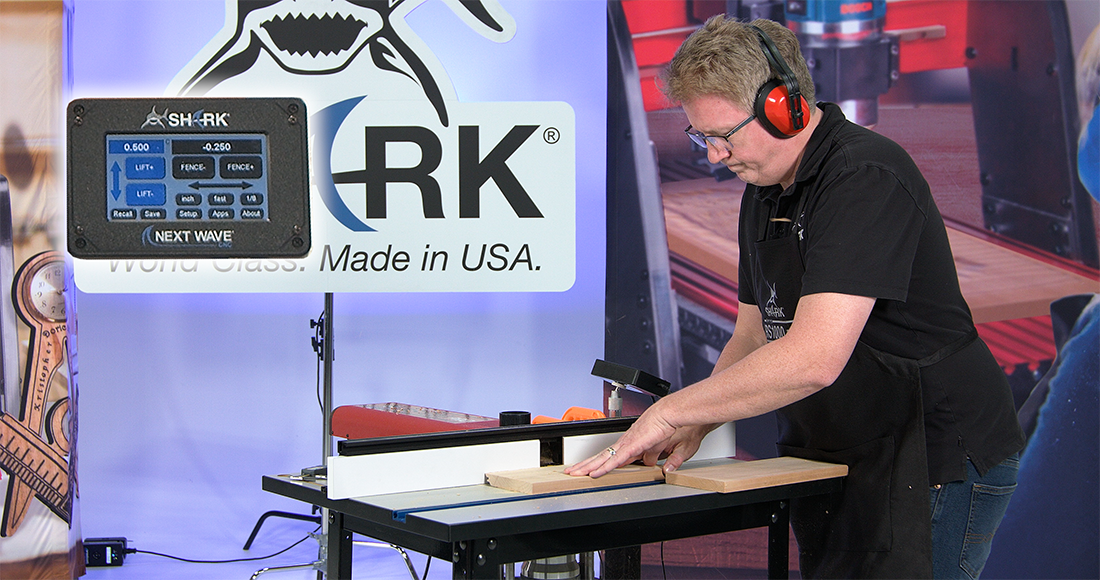

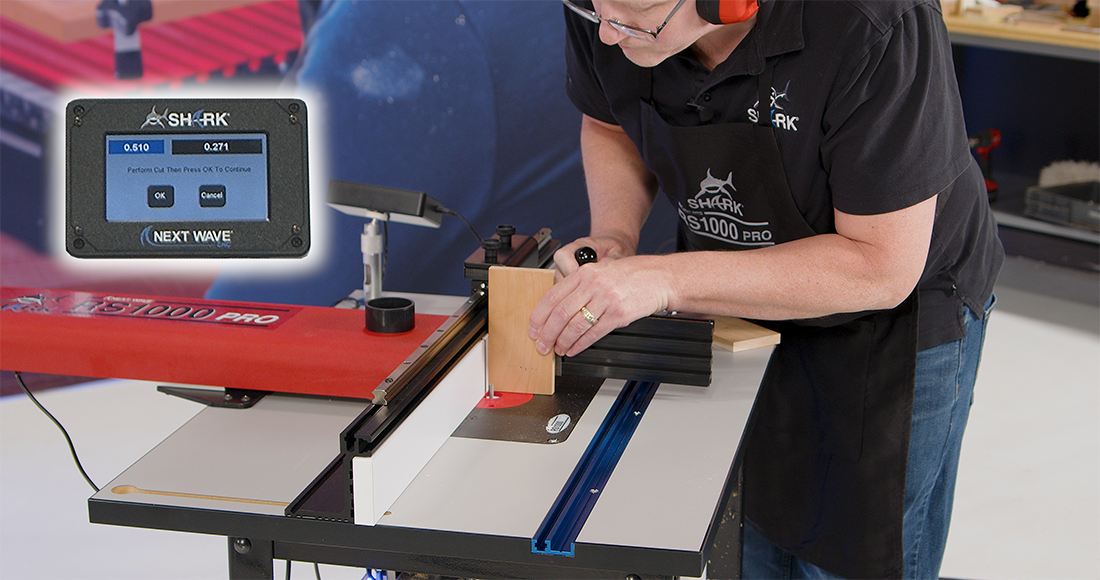

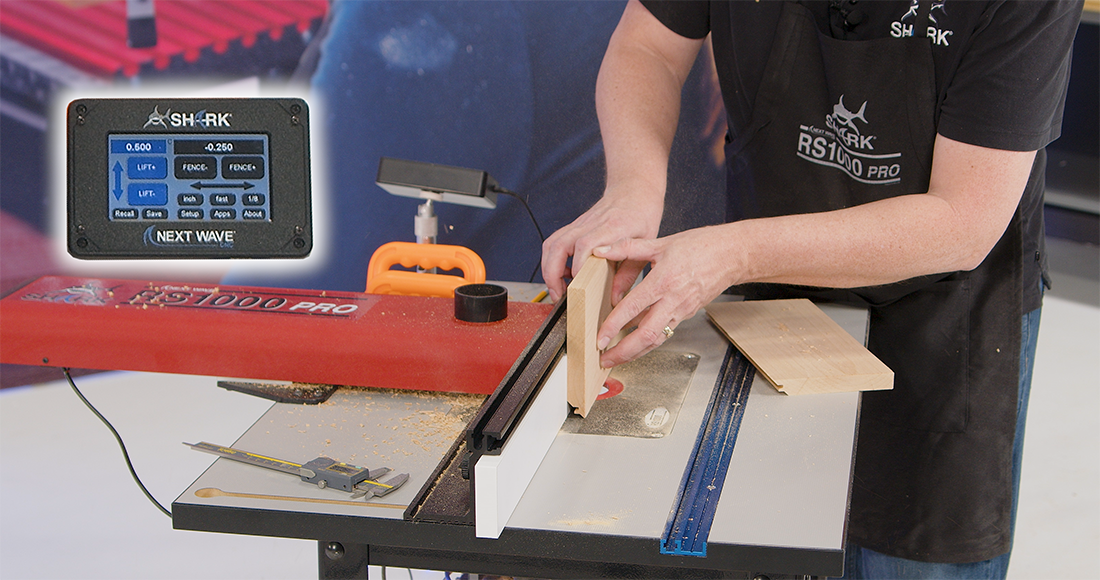

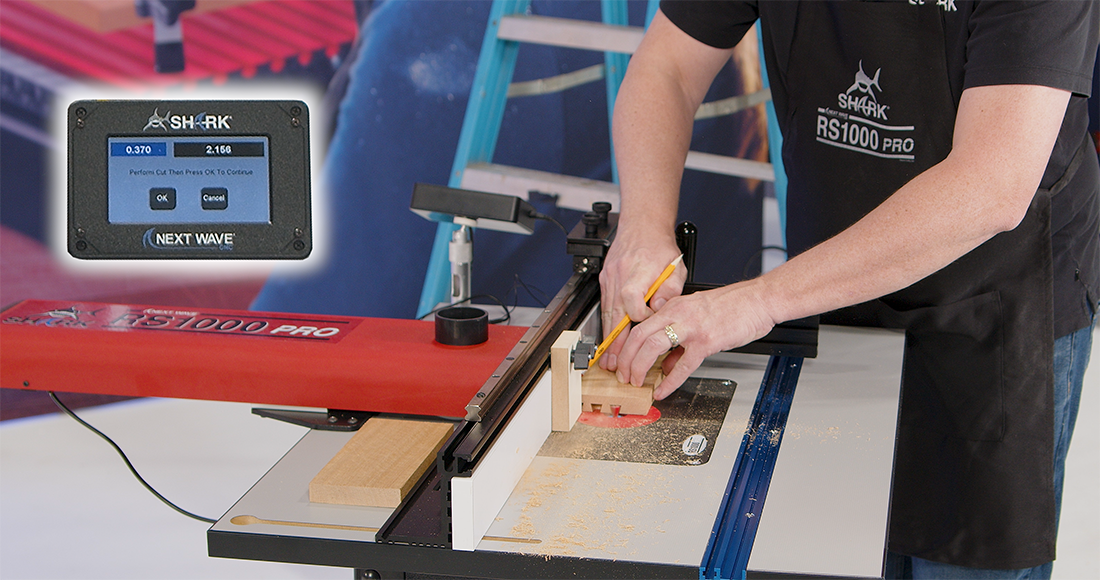

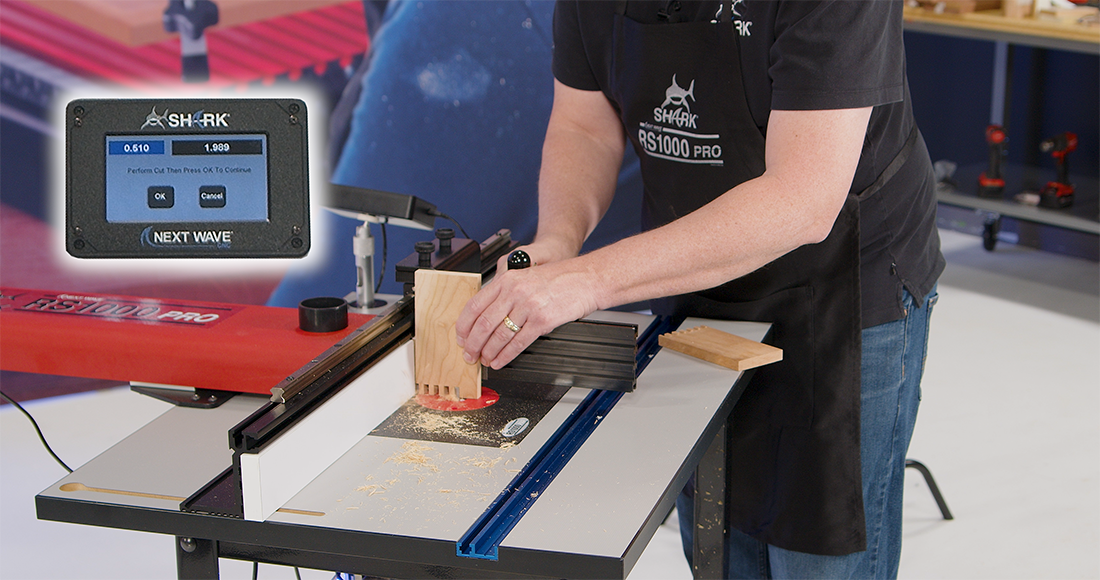

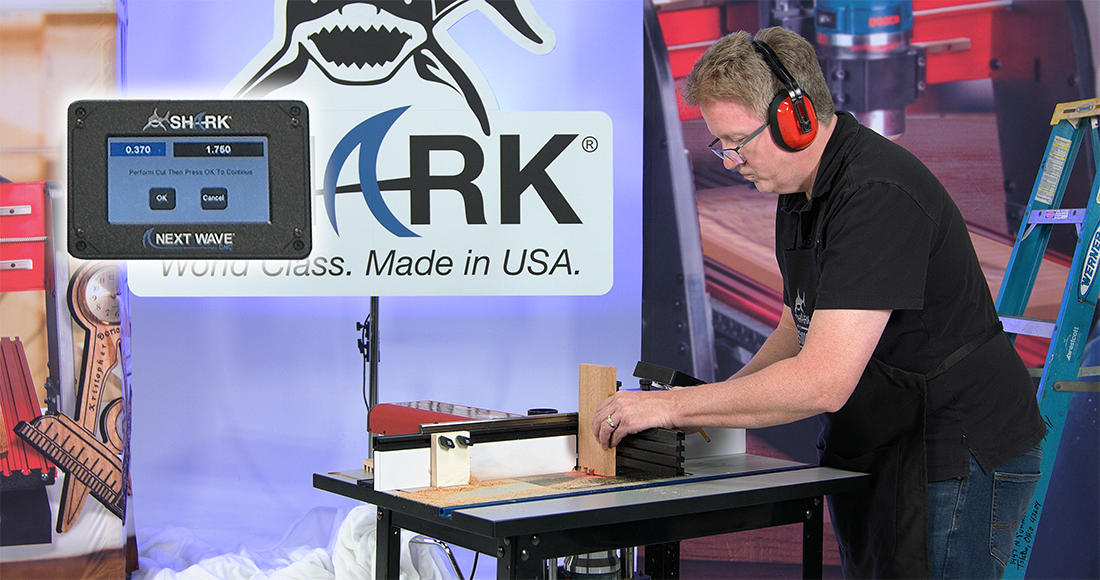

- Onboard processor with Color LCD pendant control
- Router fence and lift move accurately in direct relationship to the bit with movement as little as .001”
- Full 12” router fence travel for larger projects and 3½” of router lift travel to accommodate spindles.
- Toggles between standard, metric and decimal measurements so you don’t have to convert dimensions.
- Programmable memory locations for commonly used settings, Reducing setup time up to 90%.
- Simple to use, type in desired measurement and press ok
- Works with almost any Router Table (table not included)
Included:
- Touch-off plate

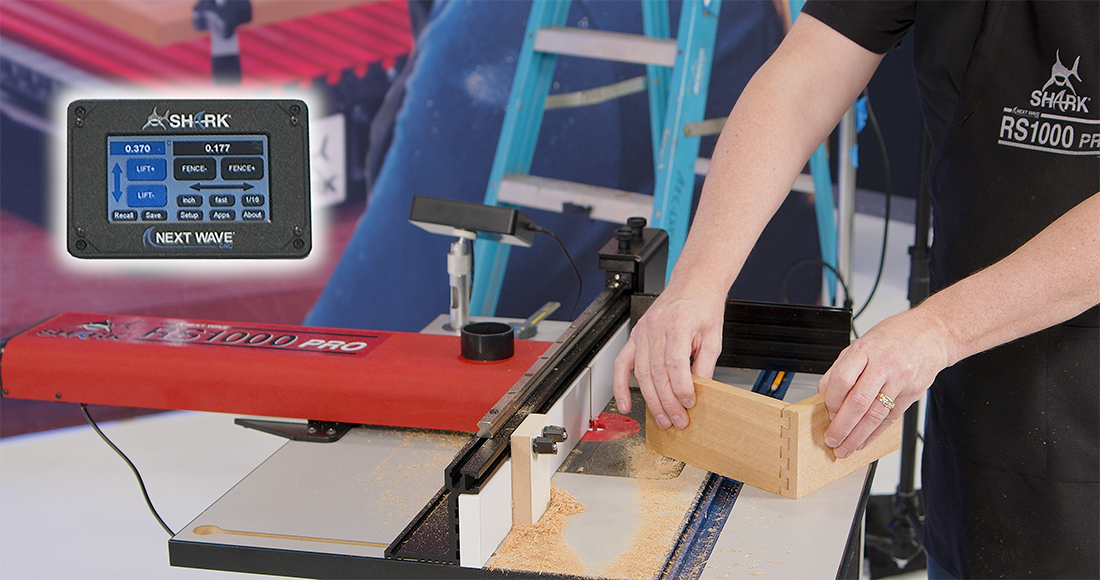

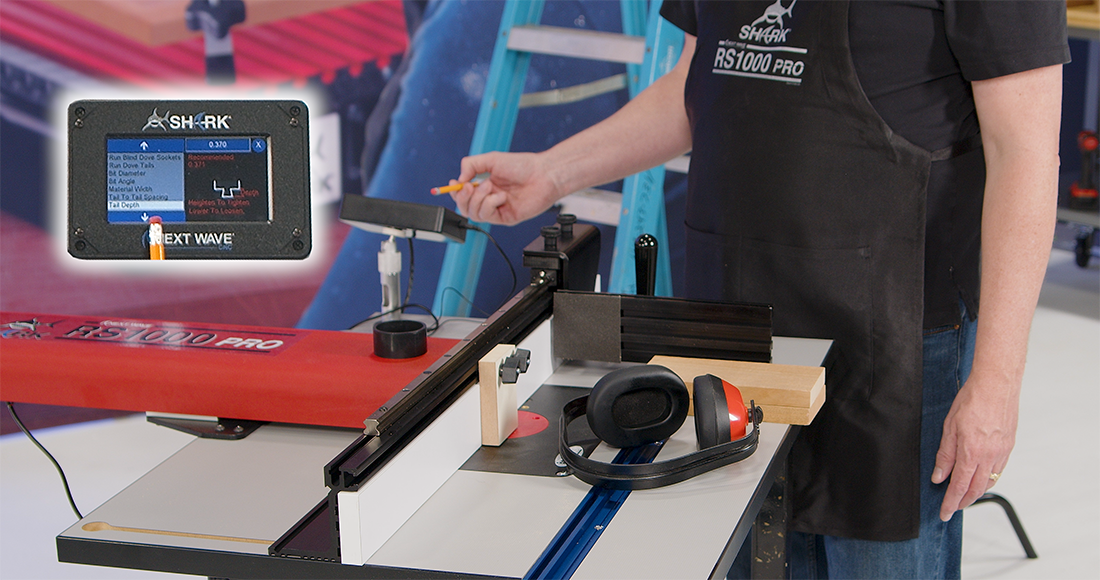

- Built-in Joinery Apps – Dovetail, Box Joint, Rabbet, Dado, Lock Miter, and more
- Integrated 2 ¼” dust port
- Color LCD pendant

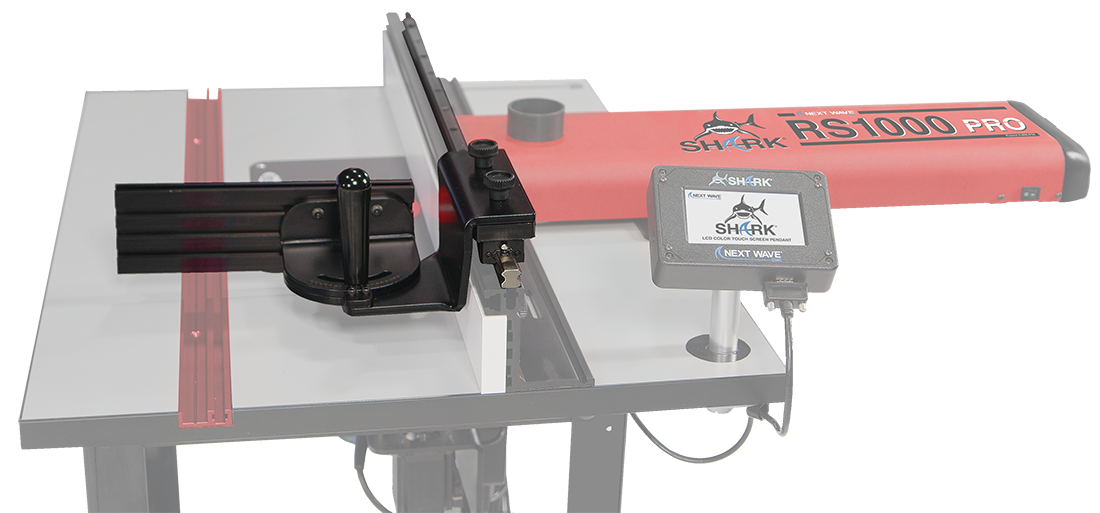

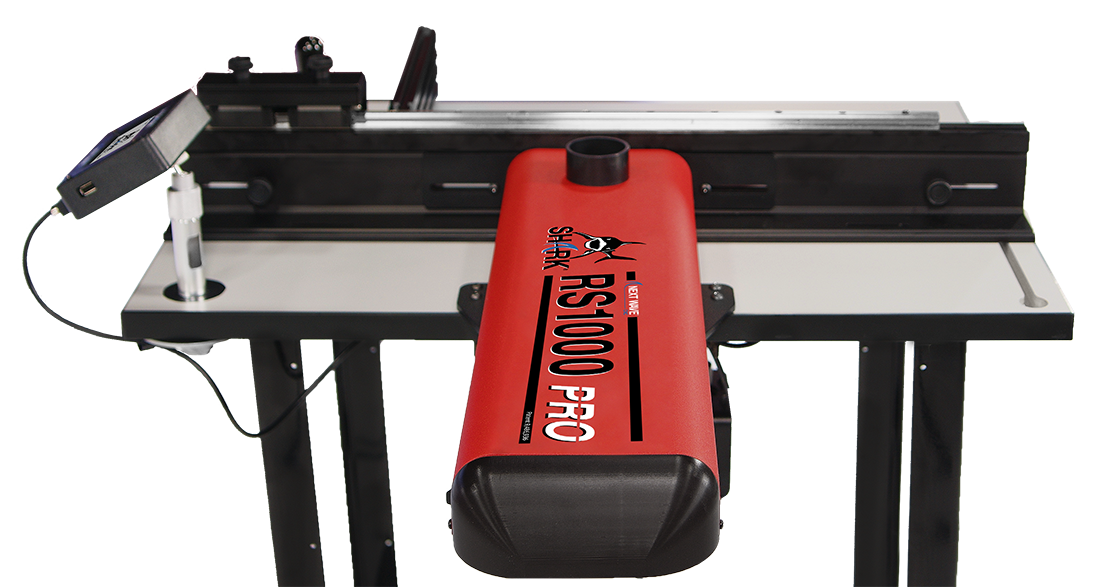

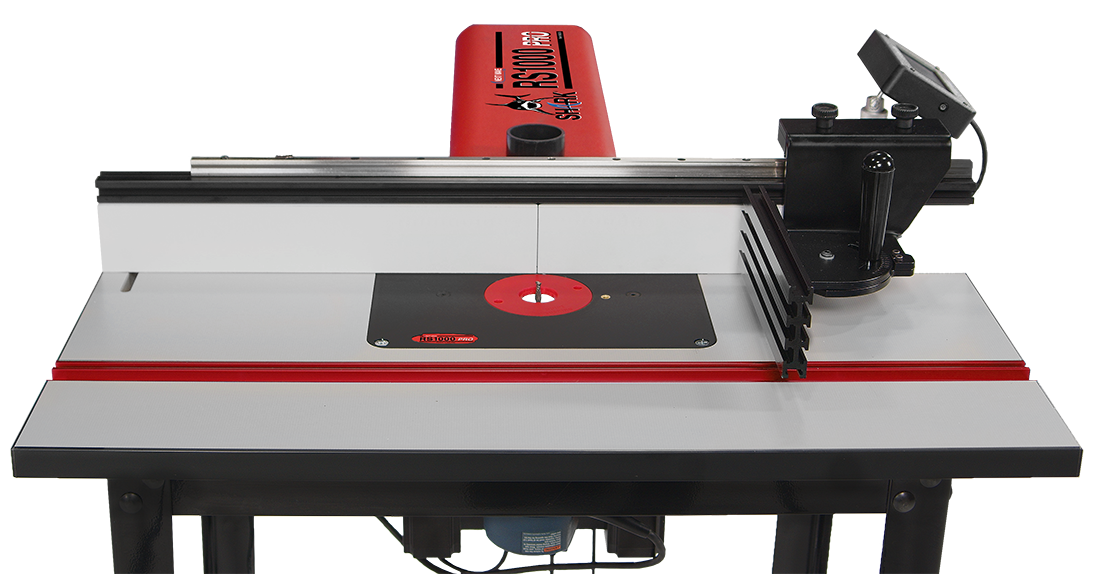

- 32″ Wide Router Fence with replaceable inserts and safety accessories
- 9-1/4″ X 11-3/4″ Phenolic router plate with removeable inserts
- Leveling System designed to adapt to most tables.
- Made in the USA
- U.S. Based Technical Support
