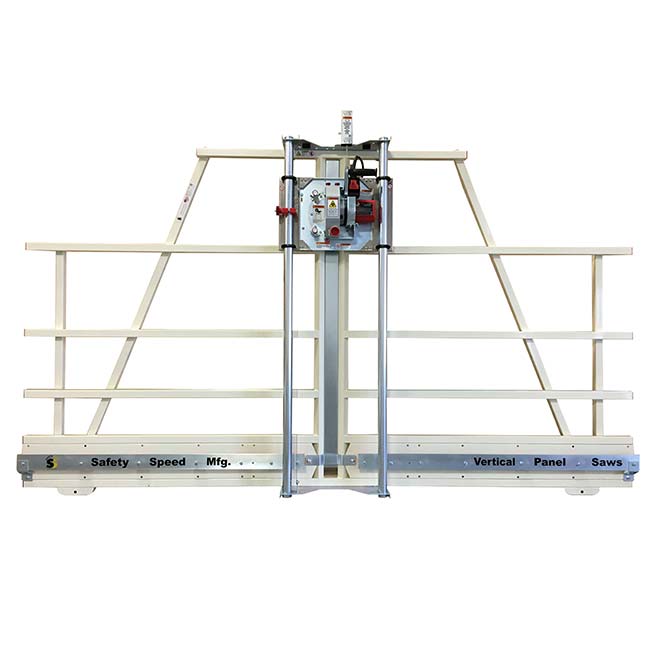

Safety Speed H4 Vertical Panel Saw

Safety Speed H4 Vertical Panel Saw

Safety Speed H4 Vertical Panel Saw

$3,279.00

In stock!

Ships for $349

Featuring a 10′ frame, and 50″maximum crosscut with an unlimited rip cut, the H4 panel saw is a preferred solution for cabinet and furniture makers. The only difference between this model and our H5 and H6 models are that the they provide 64″, and 74″ maximum crosscuts.

SKU: H4 Categories: ,

The H4 offers full-sized vertical panel saw productivity in economical machines. The model H4 saws cut within 1/32″ on a wide variety of panel materials up to 1¾” thick. H-Series saws are used in all kinds of panel processing applications.

Standard Equipment

  • 3 ¼ Hp, 15 amp industrial duty saw motor.
  • Zinc plated 1 ¾”steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards
Machine Specs

Additional information
Weight : 244 lbs
Dimensions : 120 × 11 × 70 in
Max. Crosscut : 50"/1270mm
Max. Rip Cut : Unlimited
Cut Depth : 1 ¾"/45mm
Cut Accuracy : 1/32"/.8mm
Frame Length : 120"/3050mm
Daily Usage : 1-3 Hours
Saw Blade Diameter : 8"/210mm
Rollers : 14
Motor : 15 amp, 120V, 220V
