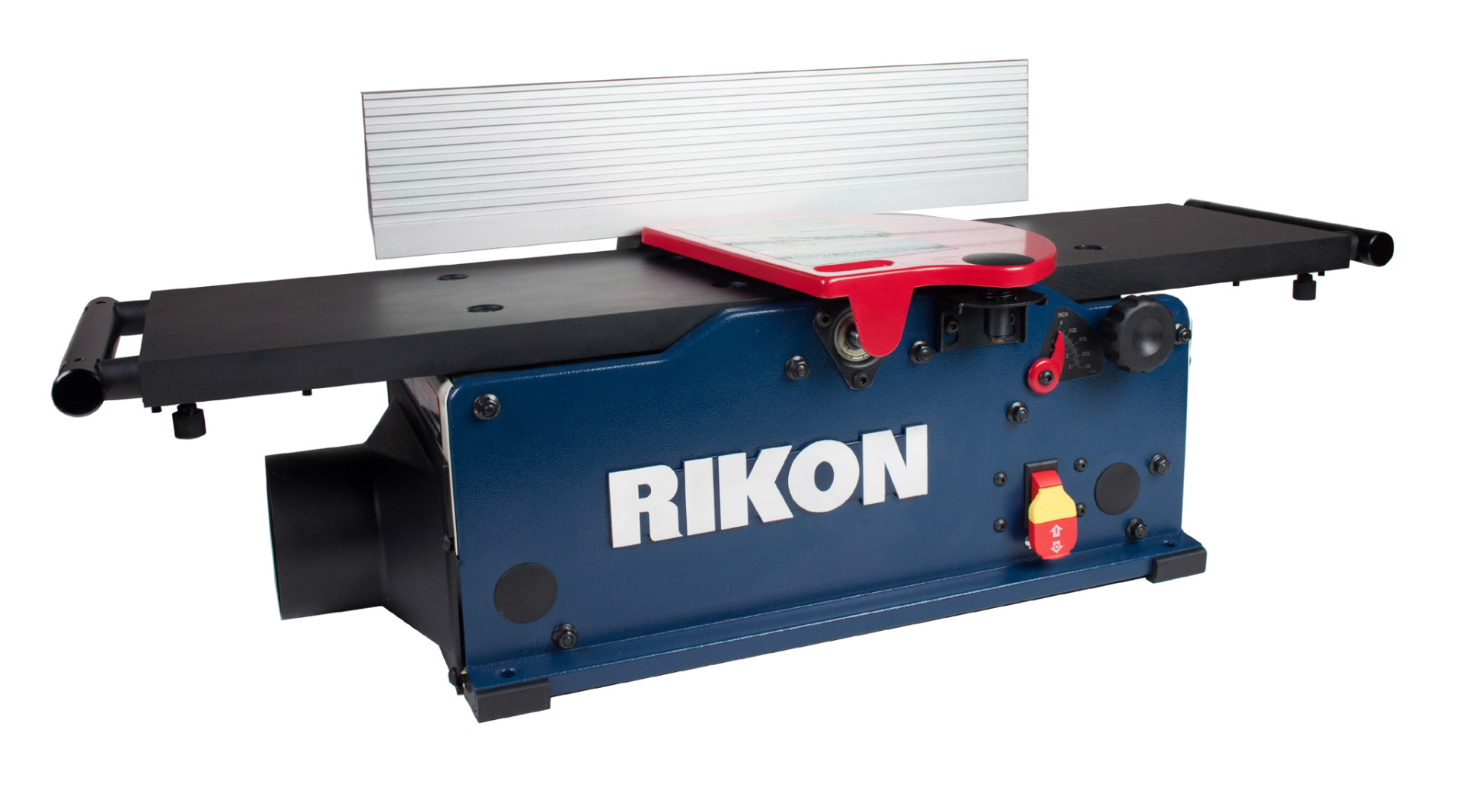

Rikon 20-800HSP 8” Benchtop Jointer with Insert Cutter Head

Rikon 20-800HSP 8” Benchtop Jointer with Insert Cutter Head

$664.99

In stock!

The Rikon 8” Benchtop Jointer 20-800HSP has a 6-row helical-style cutter head with 16 CARBIDE, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 30-1/2″ to 51-1/2″. Features rigid, all-metal construction, machined aluminum
tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately, spring-loaded safety guard, 4″ & 2-1/2” dust ports, front safety on/off switch and two push blocks.
• Portable at Only 49 lbs.
• Full Table Size 30-1/2” x 8-3/16” Extends to 51-1/2” x 8-3/16”

FEATURES

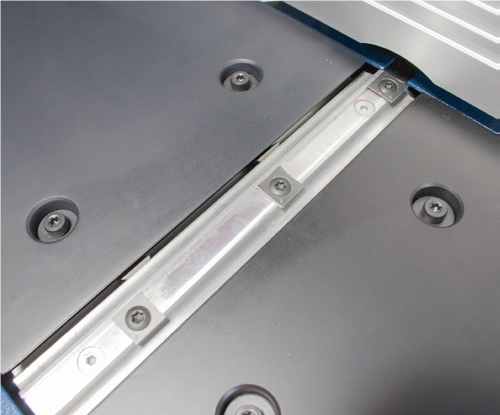

• Helical Cutter Head with 16 Two-sided Carbide Inserts

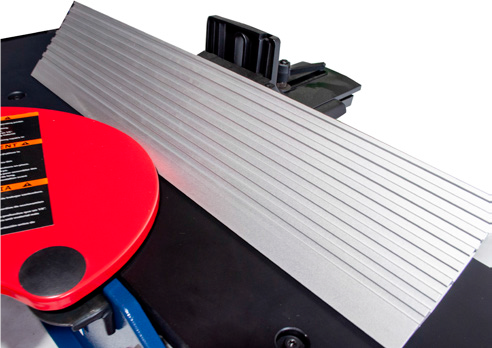

• Large 19 3/4” x 4 3/8” Fence Tilts 90° to 135°
• Safety On/Off Switch

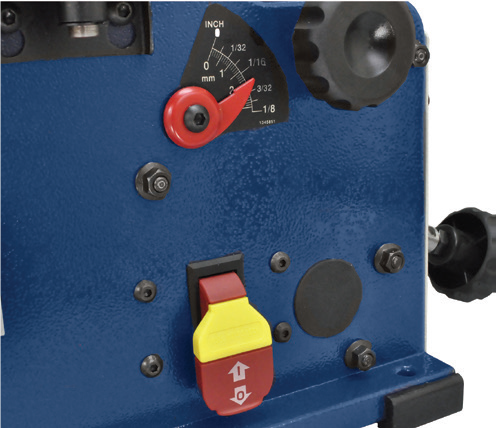

• Easy Read Depth Scale
• Portable at Only 49 lbs.
• Full Table Size 30-1/2” x 8-3/16” Extends to 51-1/2” x 8-3/16

Machine Specs

Motor Amps 10
Motor Volts 120V, 60 Hz
Motor Speed 20,000 RPM
Fence Size 19-3/4” x 4-3/8”
Fence Tilt 90° – 135°
Cutterhead Diameter 2”
Cutterhead Speed 12,000 RPM
Number of HSS Inserts (2 sided) 16
HSS Insert Size 14.2mm x 14.2mm x 2mm
Number of Insert Rows 6
Maximum Depth of Cut 1/8”
Maximum Cutting Width 8”
Minimum Length of Stock 10”
Minimum Width of Stock 3/4”
Minimum Thickness of Stock 1/2”
Overall Table Size (LxW) 30-1/2” x 8-3/16”
Overall Table Size w/Extensions (LxW) 51-1/2” x 8-3/16”
Dust Port (OD) Diameter 4” & 2-1/2”
Dust Collection Minimum CFM 100
Noise Level (No Load) at 3 Feet <100dB
Overall Height 13”
Overall Width 18-3/4”
Overall Length 51-1/2”
Overall Base Size 19“ x 11-1/4”
Net Weight 49 lbs.
Shipping Weight 61 lbs.
Shipping Carton 36.25” x 15.5” x 11.5”
Warranty 5 years
