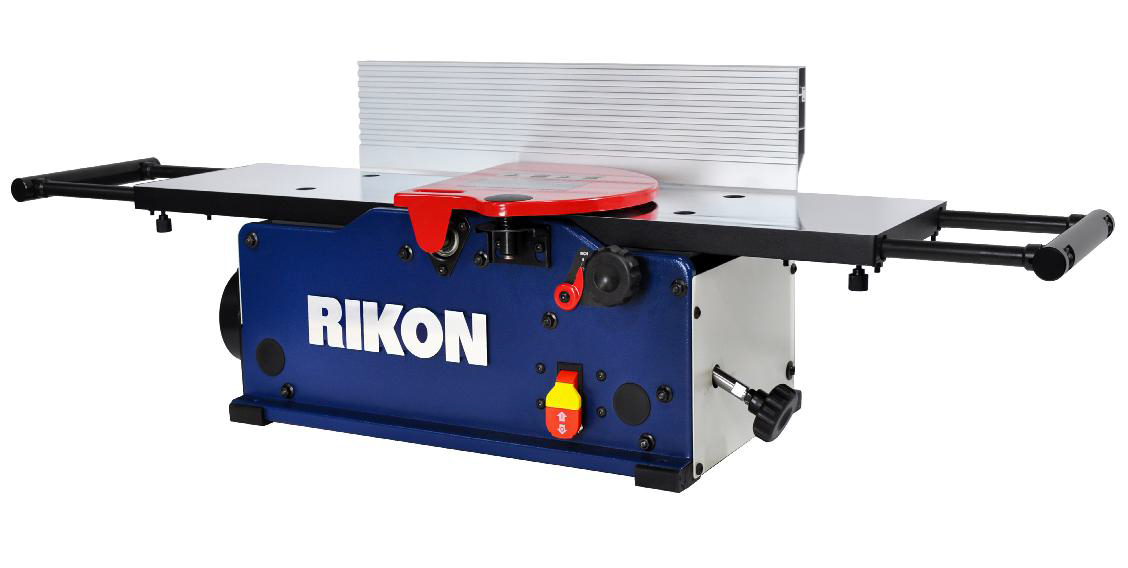

Rikon 20-1200H 12” Benchtop Jointer with Insert Cutter Head

Rikon 20-1200H 12” Benchtop Jointer with Insert Cutter Head

$949.99

In stock!

Rikon 12” BENCHTOP JOINTER 20-1000H has a 6 row helical-style cutter head with 24 High Speed Steele, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 34” to 54” long. Features machined cast iron tables, rigid all-metal construction, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately, spring-loaded safety guard, 4” & 2-1/2” dust ports, front safety on/off switch and two push blocks.

FEATURES

  • Helical Cutter Head with 24 Two-sided HSS Inserts
  • Large 24” x 4 3/8” Fence Tilts 90° to 135°
  • Safety On/Off Switch
  • Easy Read Depth Scale
  • Full Table Size 34” x 12-3/16” Extends to 54” x 12-3/16”
Machine Specs

Motor Amps 12
Motor Volts 120V, 60 Hz
Motor Speed 19,000 RPM
Fence Size 24” x 4-3/8”
Fence Tilt 90° – 135°
Cutterhead Diameter 2”
Cutterhead Speed 11,000 RPM
Number of HSS Inserts (2 sided) 24
HSS Insert Size 14.2mm x 14.2mm x 2mm
Number of Insert Rows 6
Maximum Depth of Cut 1/8”
Maximum Cutting Width 12”
Minimum Length of Stock 10”
Minimum Width of Stock 3/4”
Minimum Thickness of Stock 1/2”
Overall Table Size (LxW) 34” x 12-3/16”
Overall Table Size w/Extensions (LxW) 54” x 12-3/16”
Dust Port (OD) Diameter 1 @ 4” & 2-1/2”
Overall Height 12-1/2”
Overall Width 23”
Overall Length 51-1/2”
Overall Base Size 19“ x 15-1/2”
Net Weight 87 lbs.
Shipping Weight 90 lbs.
Shipping Carton 39” x 21” x 12-1/4”
Warranty 5 years
