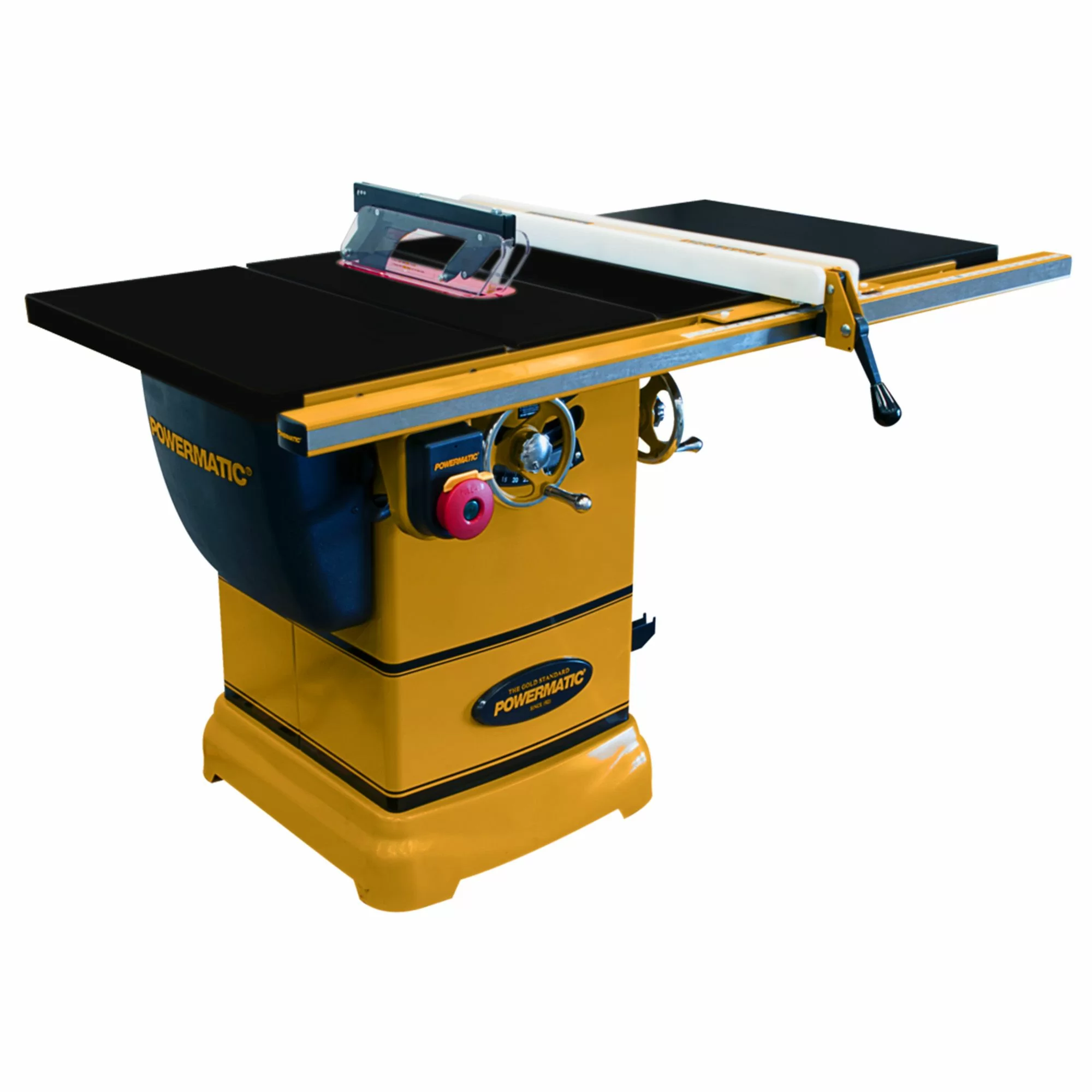

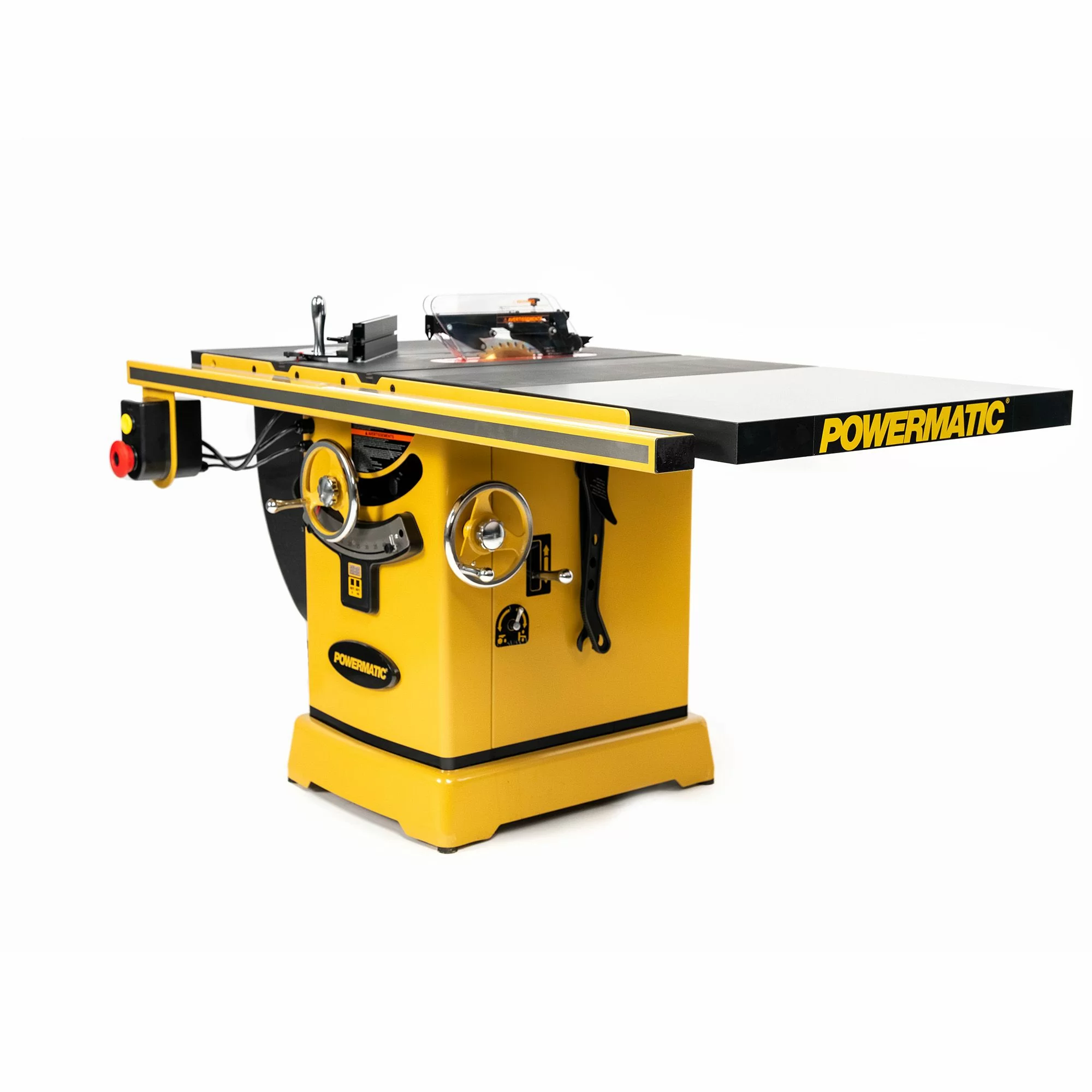

Powermatic ArmorGlide 10″ Table Saw, 30″ Rip, 5HP, 1PH, 230V

Powermatic ArmorGlide 10″ Table Saw, 30″ Rip, 5HP, 1PH, 230V

$5,699.99

In stock!

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple cleanup. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

Miter guage is built with robust materials with many positive stops for the most commonly used angles.
• Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
• Arbor lock for quick and easy blade changes
• Integrated digital read out for precise bevel cuts
• Integrated dust collection
• Integrated hydraulic castor system for ease of movement around the shop
• Matching beveled edge between table and extension wings
• One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
• Precision-ground, high luster cast iron tabletops with front and rear edge bevel
• Quick release riving knife lever for hassle free riving knife changes

Dimensions 84.75 × 39.125 × 40.375 in
Machine Specs

Arbor Diameter (In.) 5/8
Arbor Speed (RPM) 4500
Blade Diameter (In.) 10
Dust Collection Minimum CFM Required (CFM) 400
Dust Port Outside Diameter (In.) 4
Gross Weight (Lbs) 555
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
Maximum Depth of Cut (In.) 2-1/8 or 3-1/8
Maximum Diameter of Dado (In.) 8
Maximum Rip Left of Blade (In.) 13-1/2
Maximum Rip Right of Blade (In.) 30
Maximum Width of Dado (In.) 13/16
Miter Gauge Type T-Slot with Stops
Model Number PM2000T
Motor Amps 4.8
Motor Power (HP) 5
Motor Voltage (V.) 230
Net Weight (Lbs.) 405
Overall Dimensions (L x W x H) (In.) 66-3/4 x 39-1/8 x 40-3/8
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 30
Style (Type) Cabinet
Table Height from Floor (In.) 35
Table Size (L x W) (In.) 30-1/2 x 22
Table Type Cast Iron
