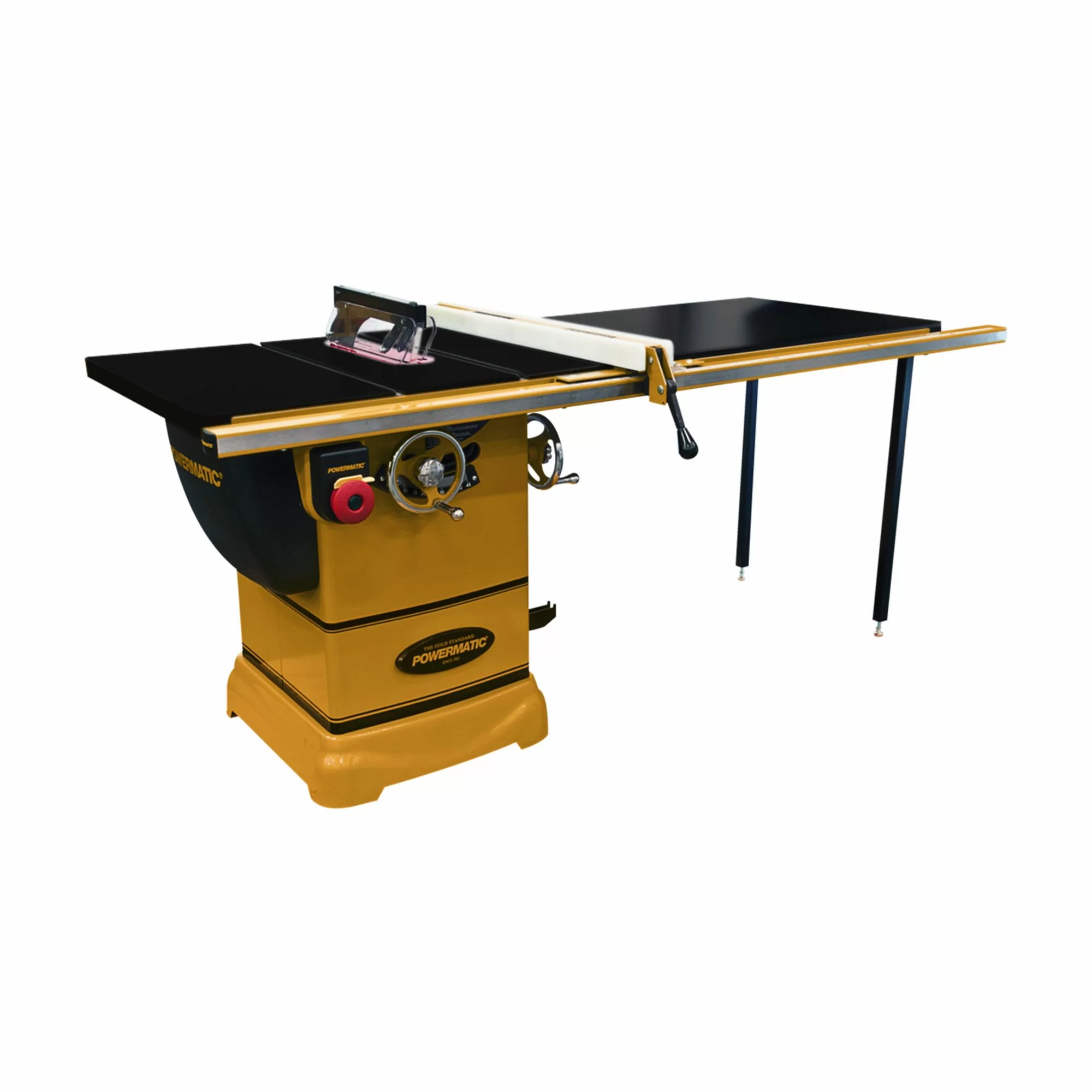

Powermatic ArmorGlide PM1000T 10″ Table Saw with 52″ Accu-Fence System, 1-3/4HP, 1PH, 115V

Powermatic ArmorGlide PM1000T 10″ Table Saw with 52″ Accu-Fence System, 1-3/4HP, 1PH, 115V

$3,599.99

In stock!

Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000 redefines the limits of design, innovation, and durability.

SKU: PM1-1791001KT Categories: , , Tags: , , , , , ,

Miter guage is built with robust materials with many positive stops for the most commonly used angles.
• Blade surround and collection hose provide an unobstructed path, maximizing dust collection
• Arbor lock allows for one handed blade changes with minimal tools
• Conveniently located hands free power switch
• Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
• Exclusive Accu-Fence provides rigidity and precision
• Precision ground cast iron work surface features a beveled edge for smoother operation
• Requires only 115V connection for easy installation
• The poly-V belt drive system reduces vibration and maximizes efficiency
• The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
• Toolless guard assembly with independent side leaves is easy to use, maximizing safety

Dimensions 42 × 33 × 53 in
Machine Specs

Arbor Diameter (In.) 5/8
Arbor Speed (RPM) 4200
Blade Diameter (In.) 10
Dust Collection Minimum CFM Required (CFM) 350
Dust Port Outside Diameter (In.) 4
Gross Weight (Lbs) 289
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
Maximum Depth of Cut (In.) 2-1/8 or 3-1/8
Maximum Diameter of Dado (In.) 8
Maximum Rip Left of Blade (In.) 12
Maximum Rip Right of Blade (In.) 52
Maximum Width of Dado (In.) 13/16
Miter Gauge Type T-Slot with Stops
Model Number PM1000T
Motor Power (HP) 1-3/4
Motor Voltage (V.) 115/230
Net Weight (Lbs.) 289
Overall Dimensions (L x W x H) (In.) 43 x 83 x 44
Prewired Voltage (V.) 115
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 20
Style (Type) Cabinet
Table Height from Floor (In.) 34-1/4
Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
Table Size (L x W) (In.) 20 x 27
Table Type Cast Iron
