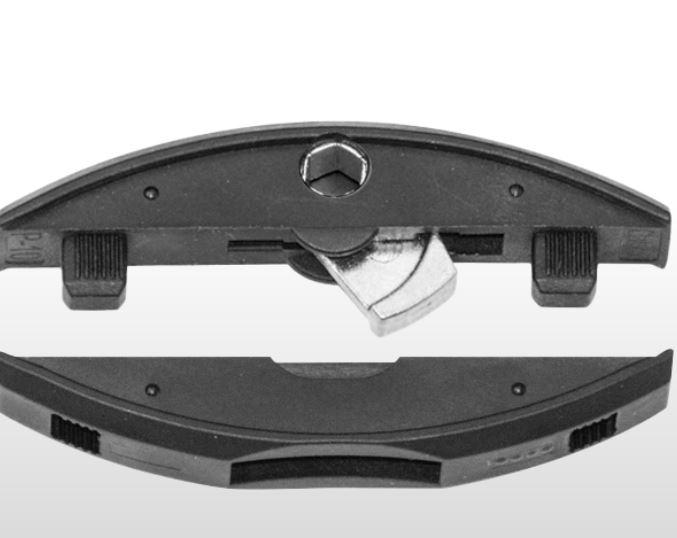

Clamex P-10 is a detachable, two-part connector with an internal cam lock which is engaged with a lever. Compared to Clamex P-14, Clamex P-10 has a shallower installation depth of just 10 mm and is therefore may be used in thinner material. The design of the connector is enhanced by two torsion tabs, which offer strong dimensional stability.

The form-locking P-System enables strong connections in the workpiece without the need for tools in just seconds. Clamex P does not require glue or screws, and offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware.

Zeta P2 depth setting 10.

Features & Benefits

• Minimal installation depth for material as thin as 13 mm (1/2″) for surface or corner joints
• Detachable miter connector for 30-180° angles in material thickness of at least 15 mm (9/16″)
• Nearly invisible with its 6 mm tool opening
• Fast tool-free installation of connectors
• Stackable for transport with connectors pre-installed
• High clamping force for gluing components at all angles
• Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine
