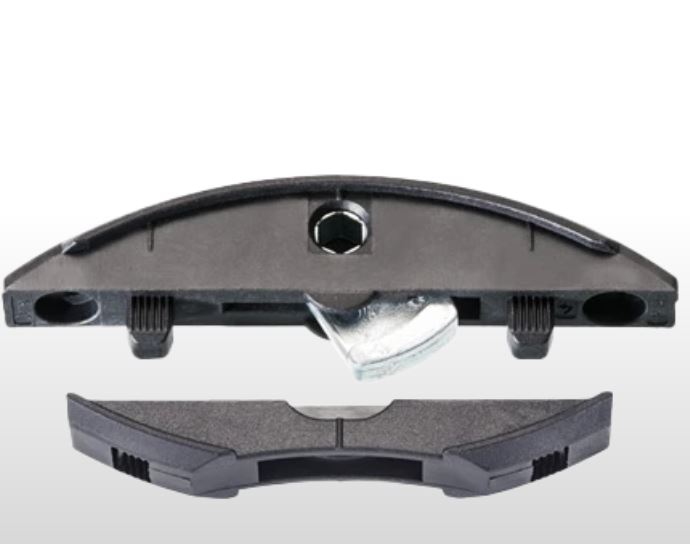

Clamex P Medius complements the Clamex P-14 connectors for use in shelving units where two shelves meet the dividing panel at the same height. Medius consists of two parts with different installation depths. The lever part is installed in the shelf, anchored in a 14 mm deep P-System groove. Thanks to its installation depth of just 10 mm and crescent-shaped cut out, the second part can be fitted back-to-back in a dividing panel measuring just 16 mm (5/8″) in thickness.

The form-locking P-System enables secure installation in the workpiece without the need for tools in just seconds. Clamex P does not require glue or screws, and thus offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware.

Zeta P2 depth setting 14 and 10.

Benefits of Clamex P Medius 14/10

• Practically wear-free knock down fitting
• Same positioning of P-System grooves on both sides possible for dividing panels with a minimum thickness of 16 mm (5/8″)
• Minimal tool opening of just 6 mm
• Fast, tool-free installation of connectors
• Stackable for transport, with connectors pre-installed
• Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine
