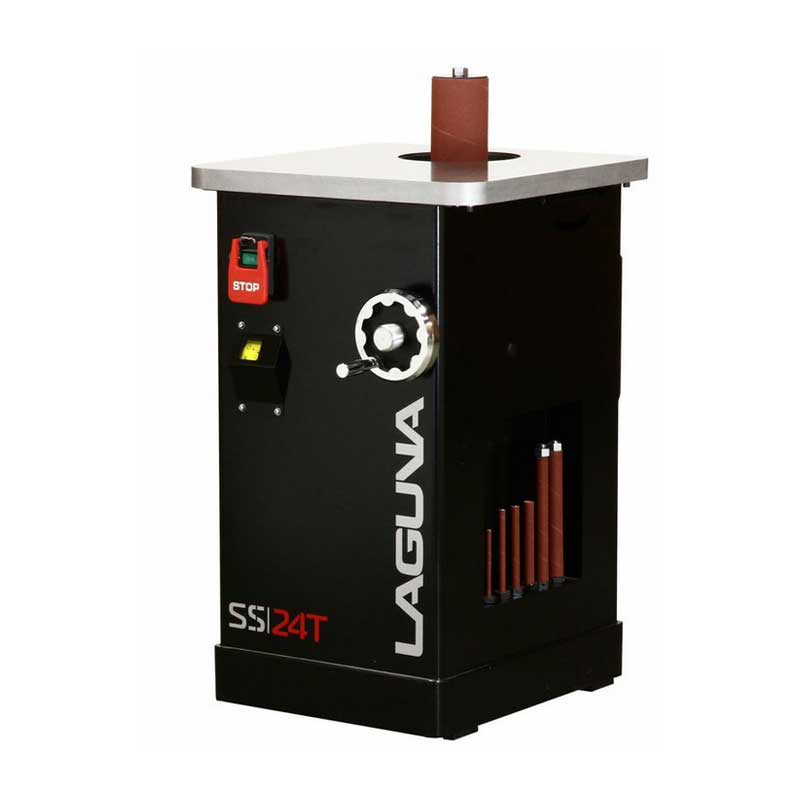

Description

  • The rubber drum can be fitted on both ends to fully utilize the entire spindle.
  • The oscillating sanding provides an extremely fine sanding finish.
  • Easily interchanged spindles.
  • The tilting table is precision ground.
  • Heavy gauge steel frame.
  • Speed 1725 RPM
  • Oscillations per minute 75
  • Length of oscillation 1-1/2″
  • Table size 24″ x 24″
  • Spindle tilt 0 X~45 X
  • Table height from floor 37.4″(950mm)
  • Motor 1 HP
  • Net Weight 137 kgs Gross Weight 145 kgs
  • Packing dimensions 27″*27″*46″

Sanding Spindles

  • #1 1/4″dia.x5″long
  • #2 3/8″dia.x6″long
  • #3 1/2″dia.x6″long
  • #4 5/8″dia.x6″long
  • #5 3/4″dia.x9″long
  • #6 1″dia.x9″long
  • #7 1-1/2″dia.x9″long
  • #8 2″dia.x9″long
  • #9 3″dia.x9″long
  • #10 4″dia.x9″long

Enclosed spindle storage on machine is included.
