110 – 120 Volt AC

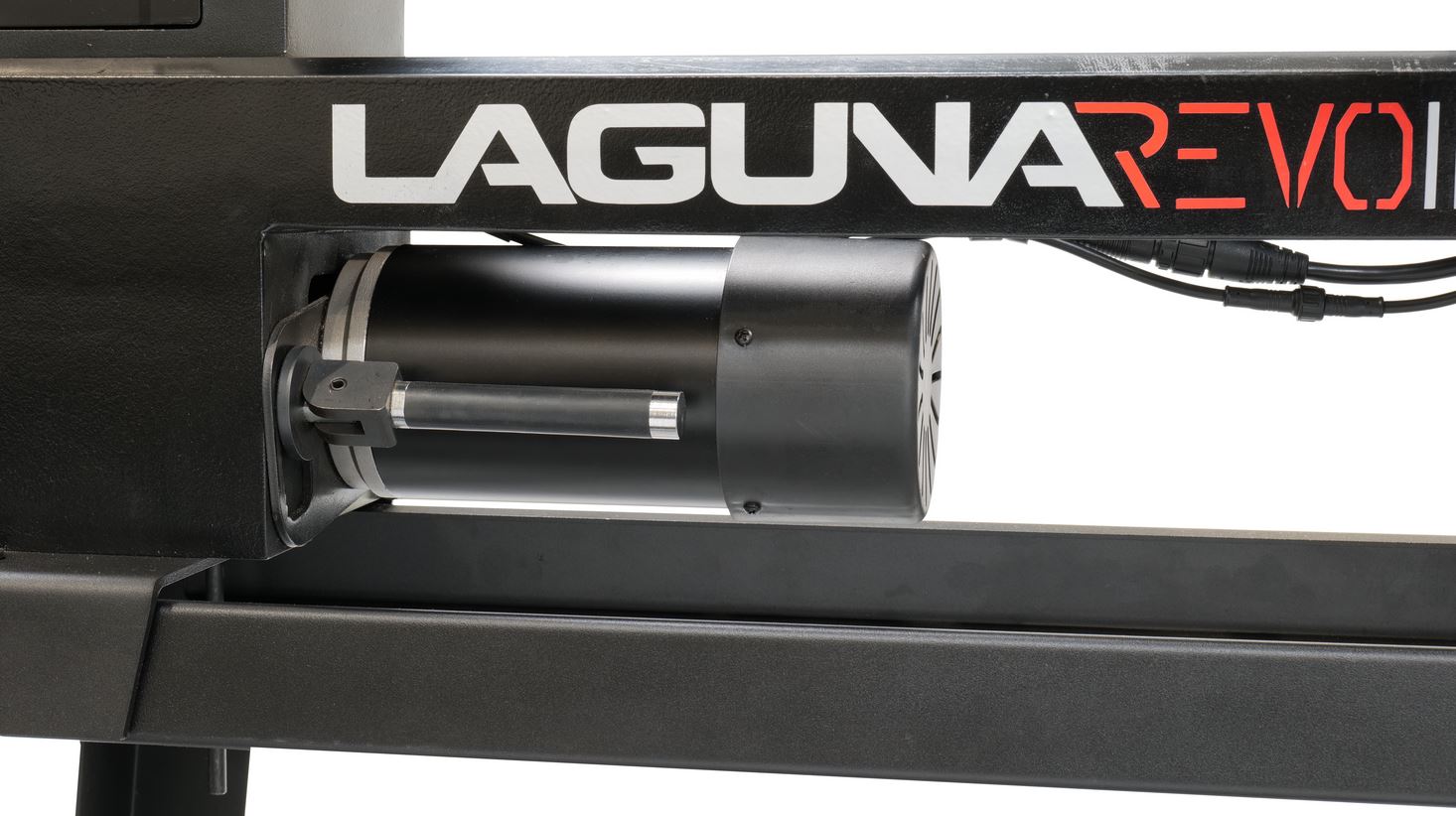

1HP PWM Motor
Electrical Power – 120 Volt AC – Additional 120 Volt Outlet for Optional LED Work Lights
Spindle Threads – 1 Inch x 8 TPI – #2 MT Internal Taper
Tool Rest – 1 Inch Post Diameter with 6mm Hardened Steel Leading Edge

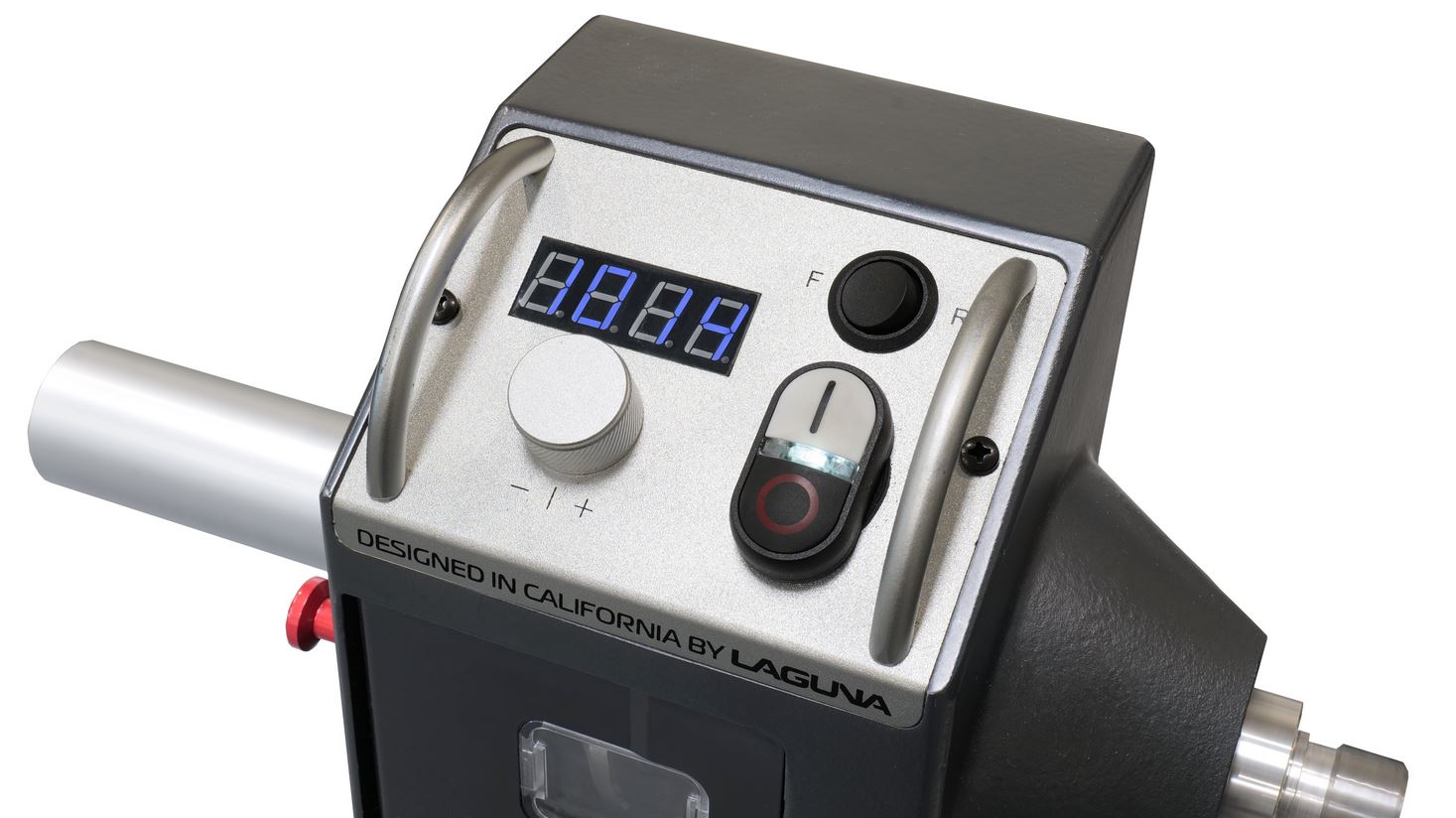

Electronic Speed Control with 3-Step Pulley
Digital RPM Readout Display

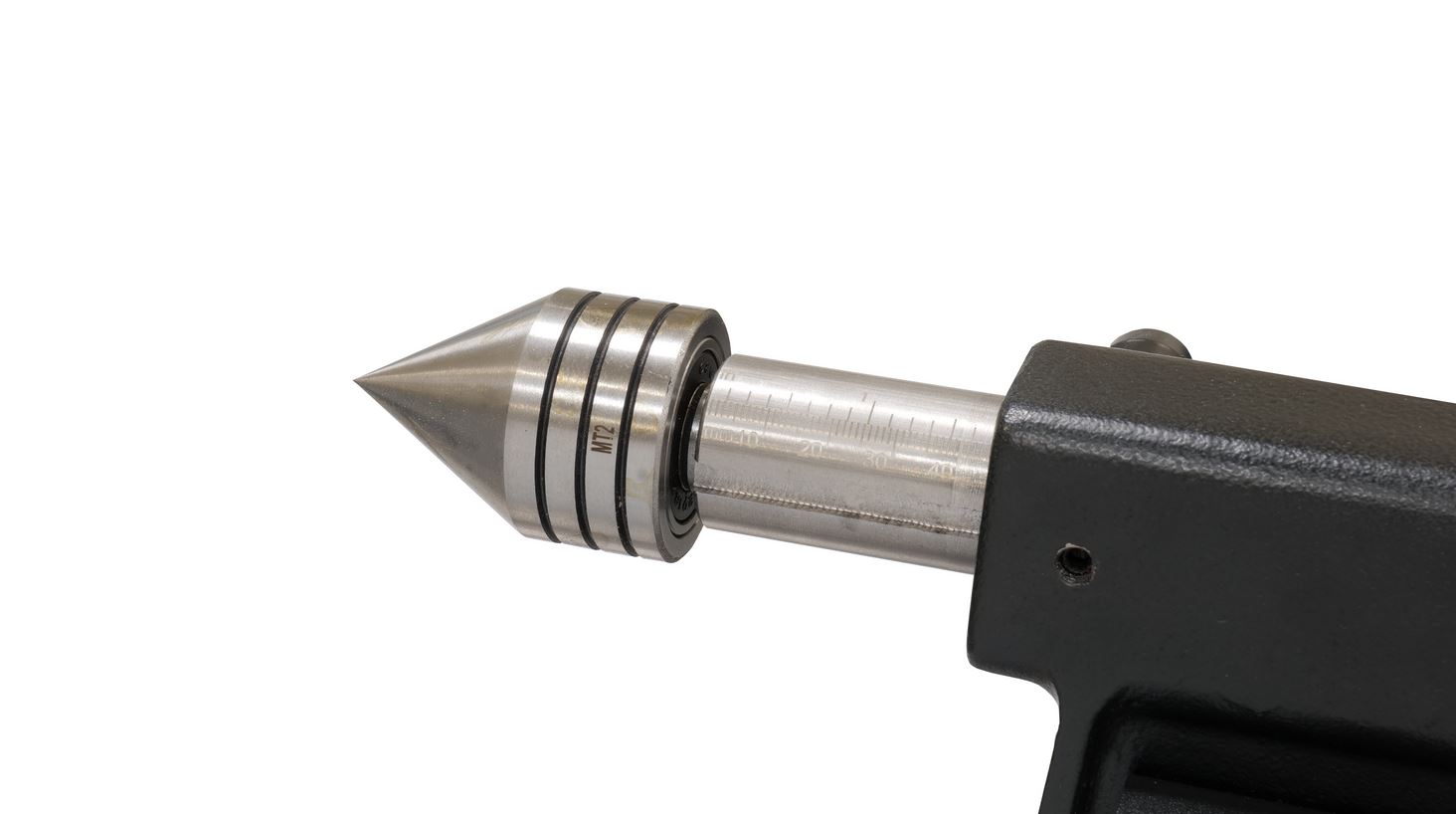

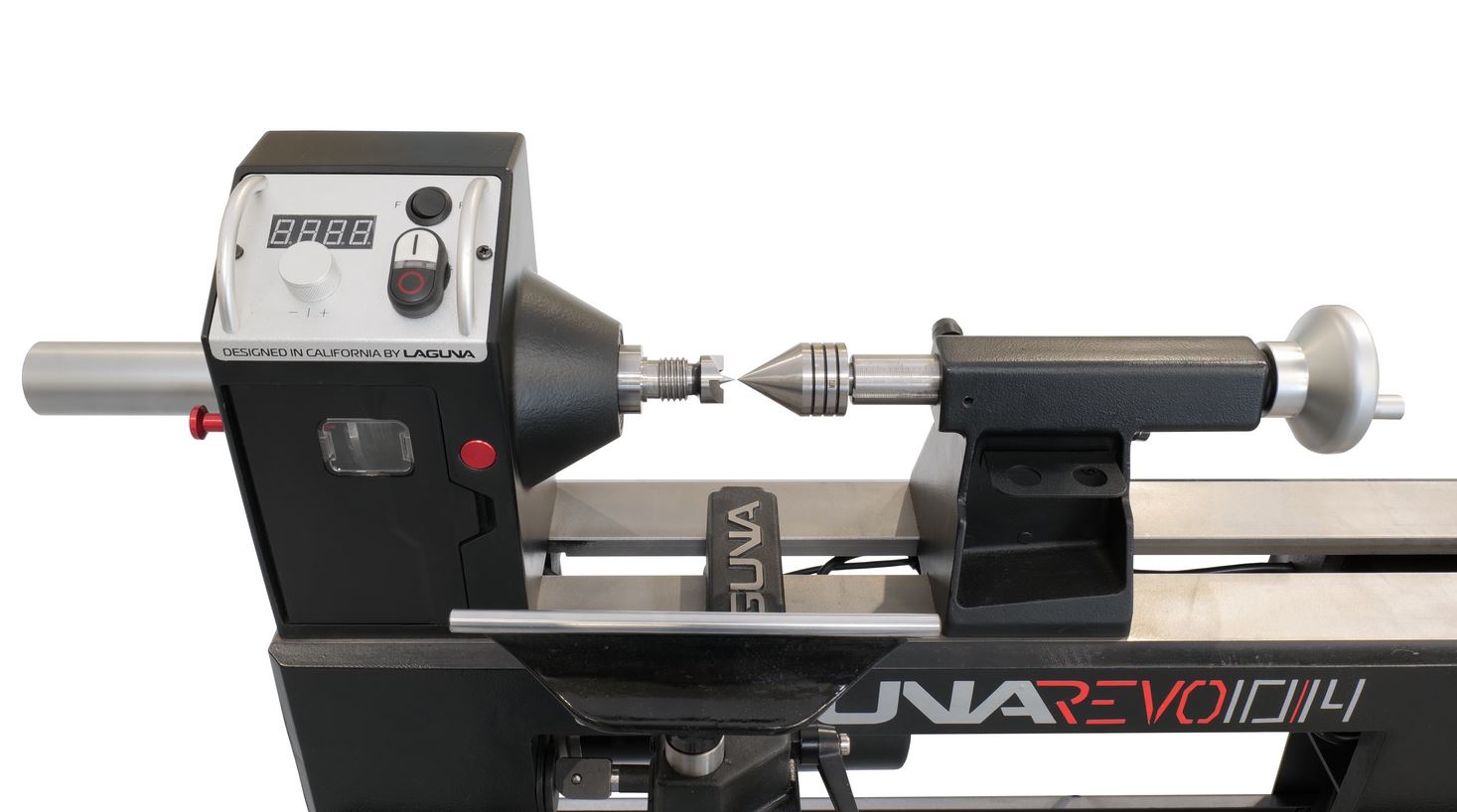

Spur and Live Center Drives

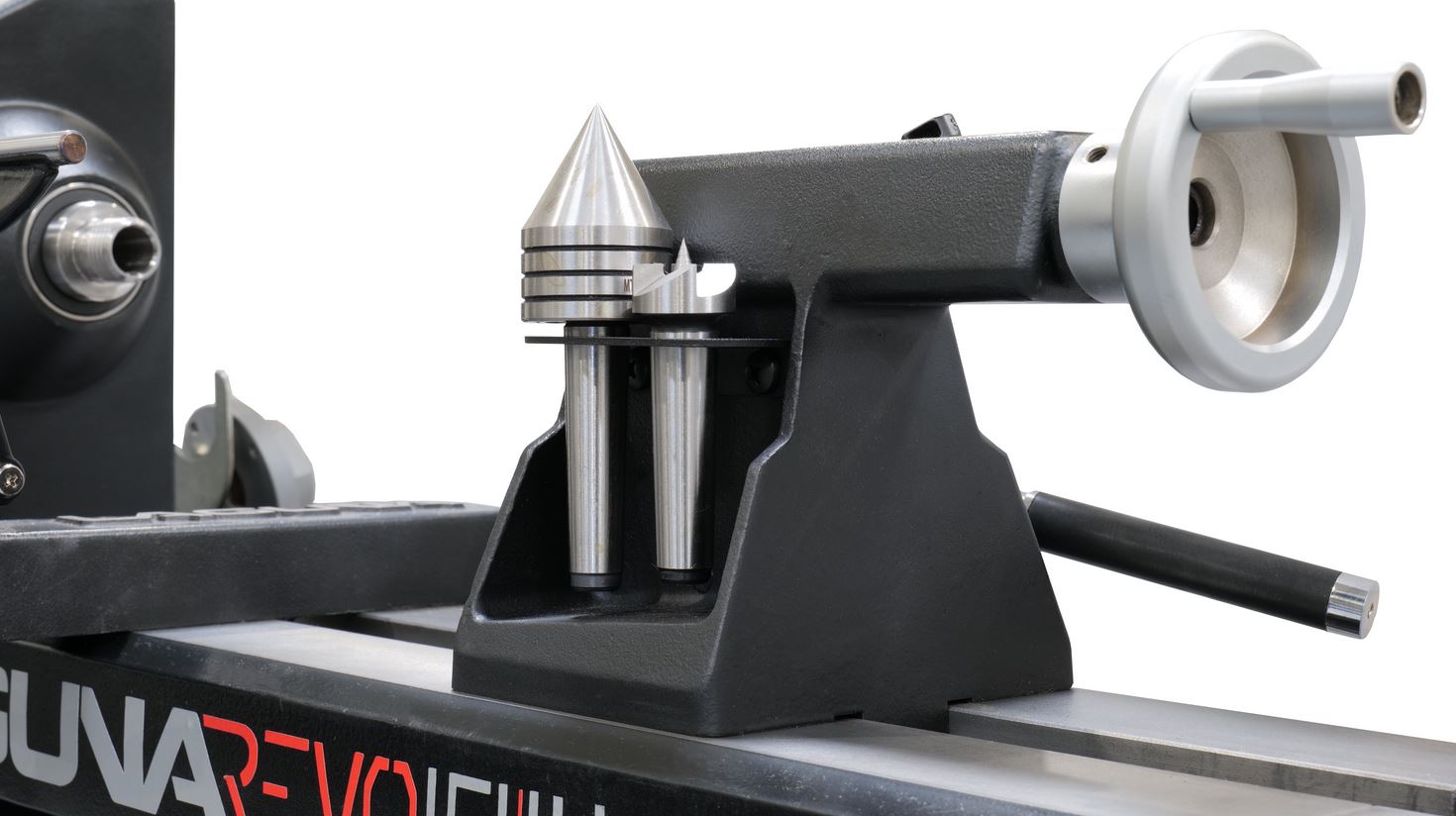

Cast Iron Tailstock with Self-Ejecting Quill

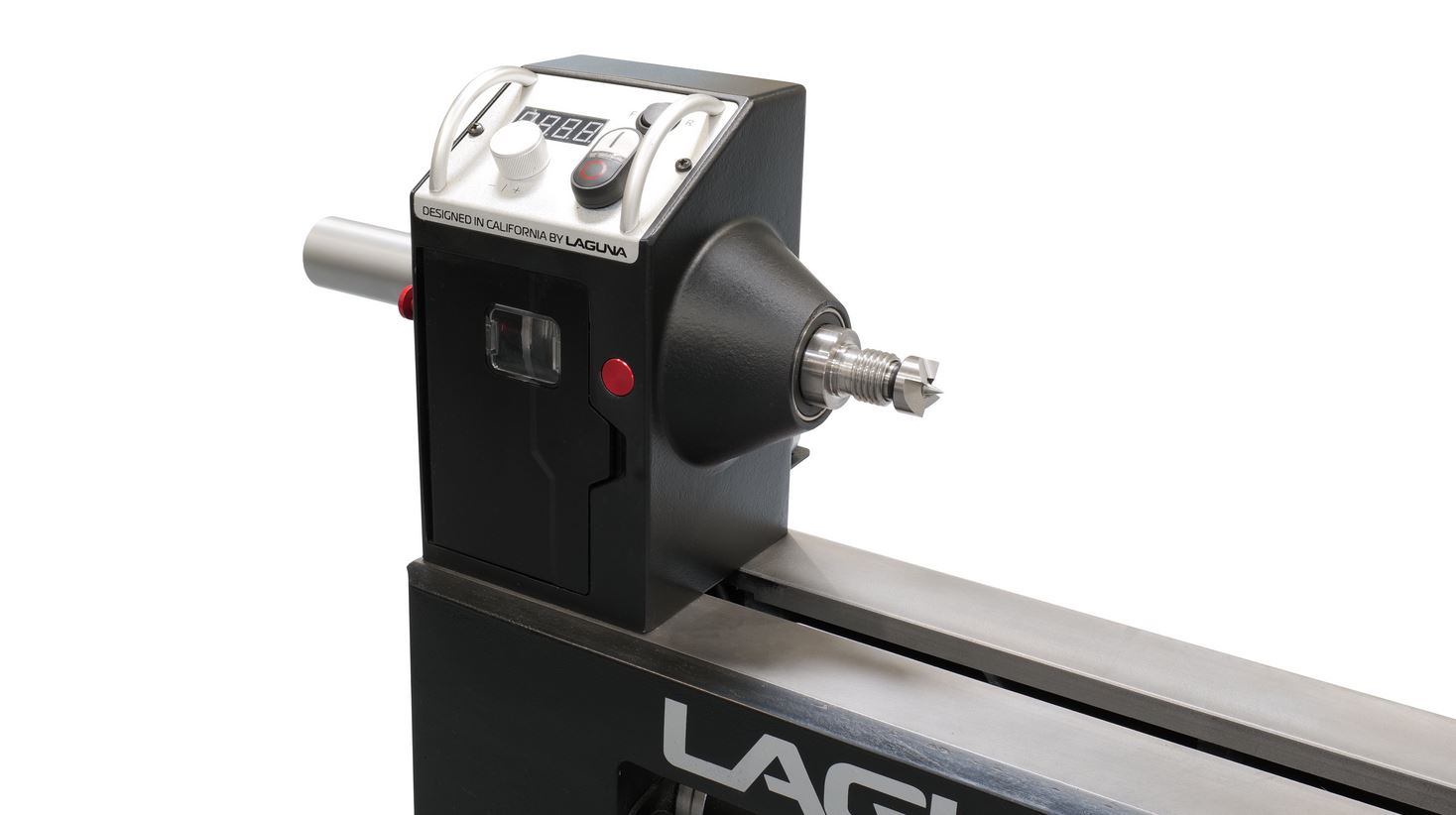

Cast Iron Headstock with Projected Bearing Cone

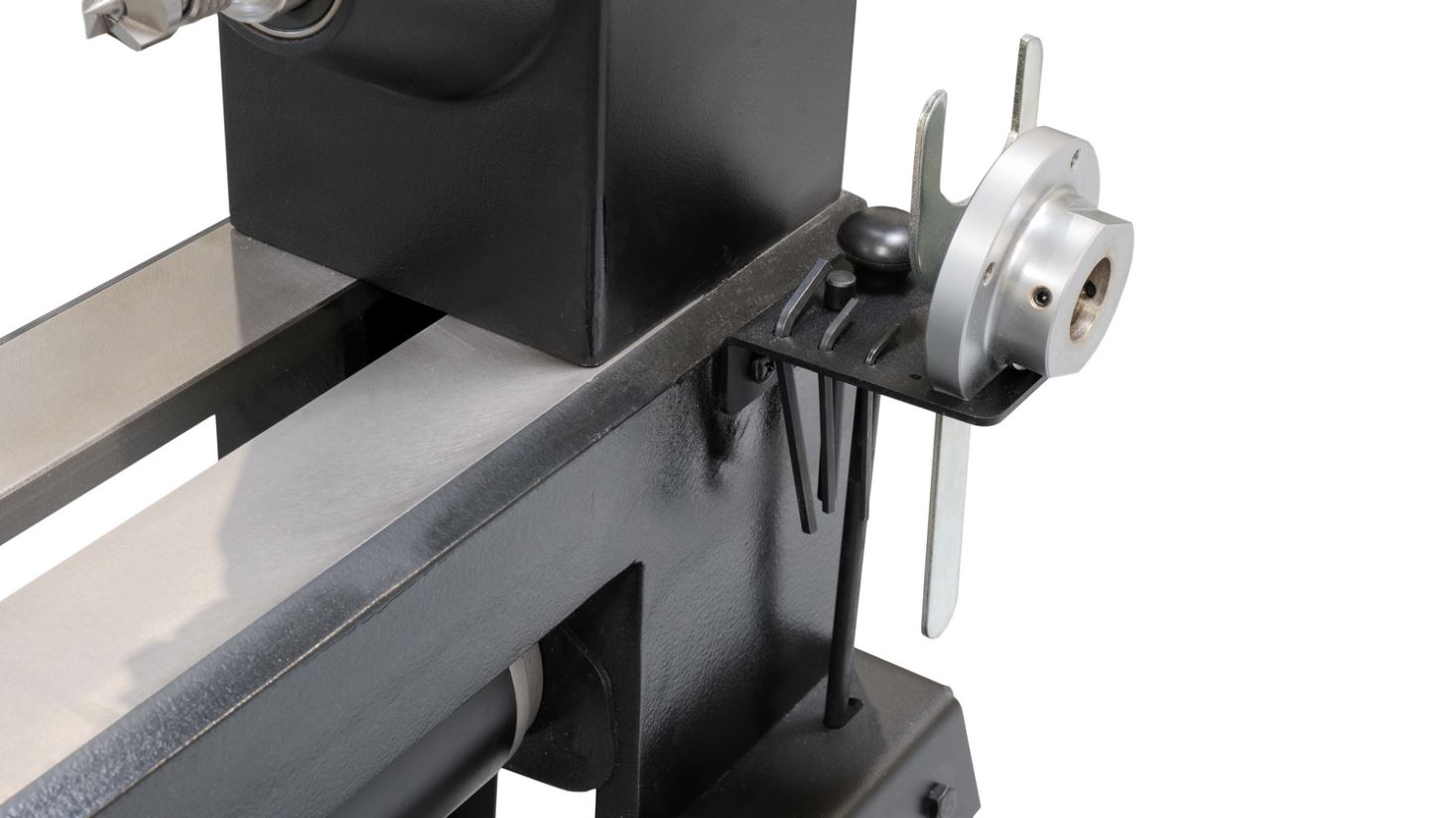

3″ Faceplate
Turning Capacity – 10″ Diameter over the bed – 14″ Length between centers. (254 x 355mm)
Tailstock Quill Travel – 3.5″ (92mm)

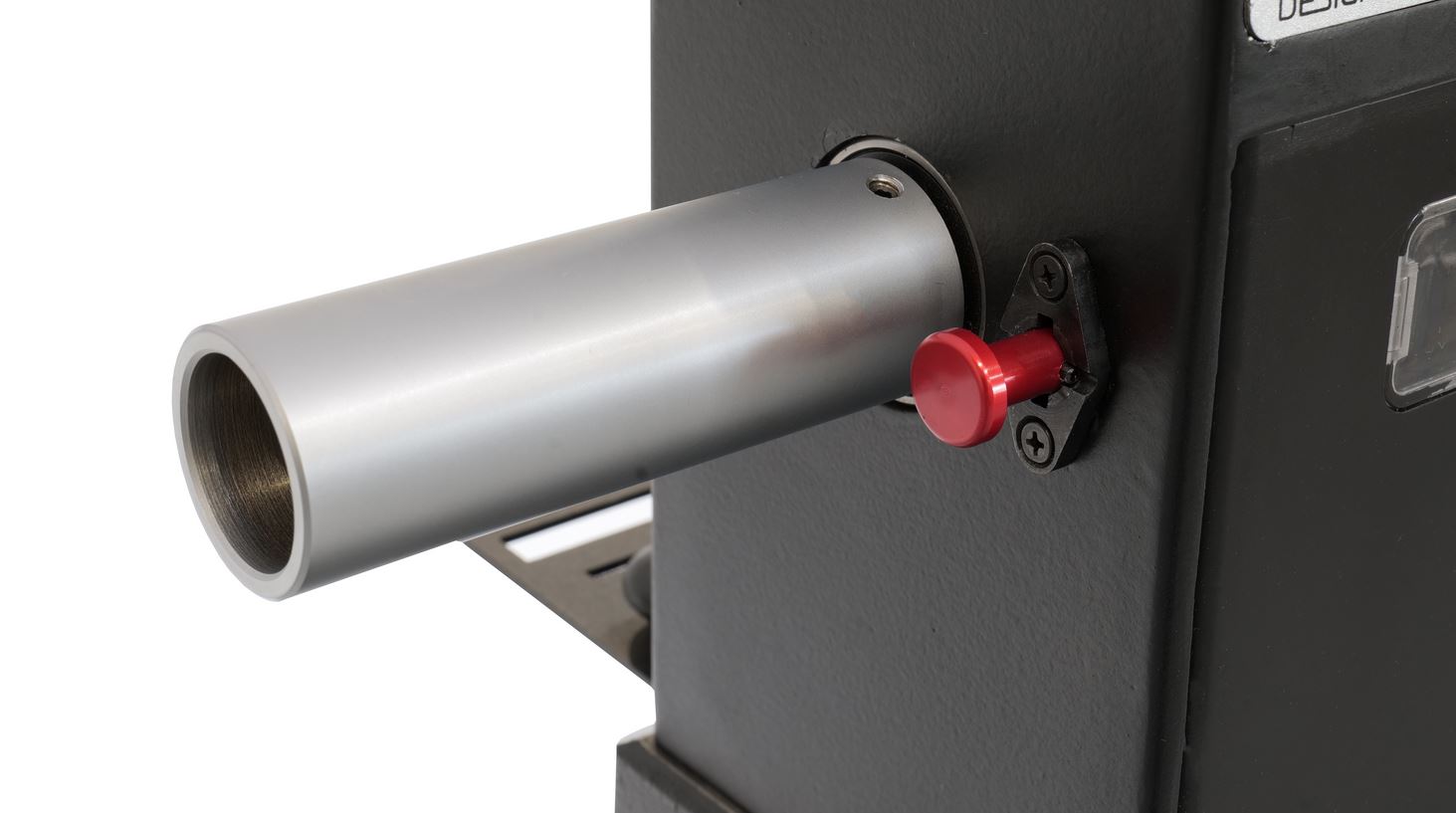

Push Button Spindle Lock
Headstock and Tailstock Bore – 3/8″ Through Bore
Speed Range – 950 – 3200 RPM High – 430 – 1450 RPM Mid – 250 – 850 RPM Low
Quick-Release Handle for Belt Tension
Dual doors for belt changes
Belt position window
