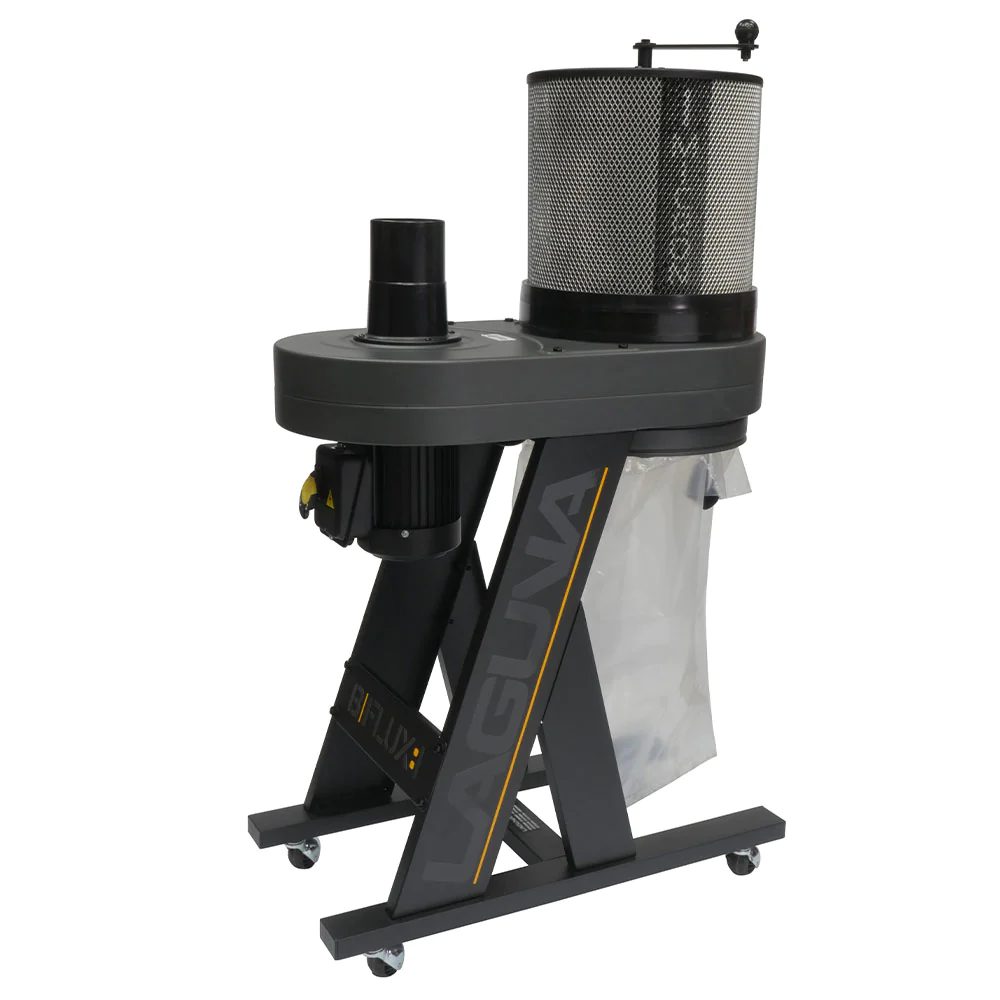

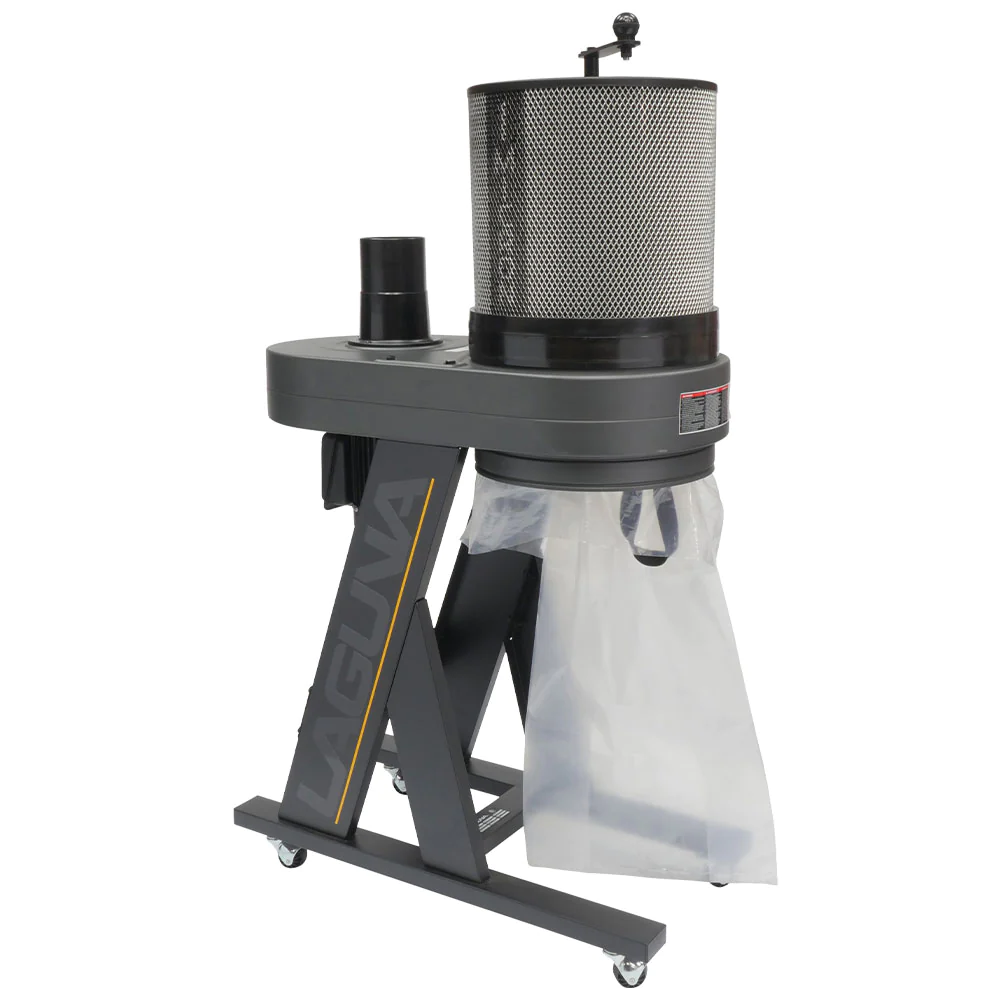

Laguna B|Flux Dust Collector

Laguna B|Flux Dust Collector

$599.00

In stock!

Ships for $150

The best looking single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the B|Flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the B|Flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards. The B-flux dust collector can be oriented with the inlet port pointed up or down.

SKU: MDCBF1110C1M Categories: , Tags: , ,
Features:
  • Motor: 1HP
  • Phase: 1
  • Voltage: 110v
  • Amps: 8.4 Amps
  • Recommended Breaker: 15 Amps
  • Hertz: 60
Machine Specs

Motor HP : 1HP
Phase : 1
Voltage : 110
Amps : 8.4 Amps
Hertz : 60
Plug : Yes
RPM : 3450
Switch Type : Motor mounted direct Switch
Hand held remote control : None
Real CFM : 550
Nominal CFM : 650
Max Static Pressure (inches of water) : 4.86
Impeller/Fan Size : 9
Impeller Material : Steel
Impeller Type : Radial Fin
Balanced To : ISO 1940
Inlet Diameters : 4 x 1 port
Drum Collection Bag (Dia. x L) : Plastic bag (Ø350 x 980mmL)
Canister Filter type : 1 Micron
Filtration Efficiency : 0.2-2micron @99.97%
MERV rating : 12
Canister Diameter : Ø360mm (14.2 )
Canister length : 300mm (11.8 )
Filter Surface Area : 17.2ft²
Canister cleaning : Manual Handle crank

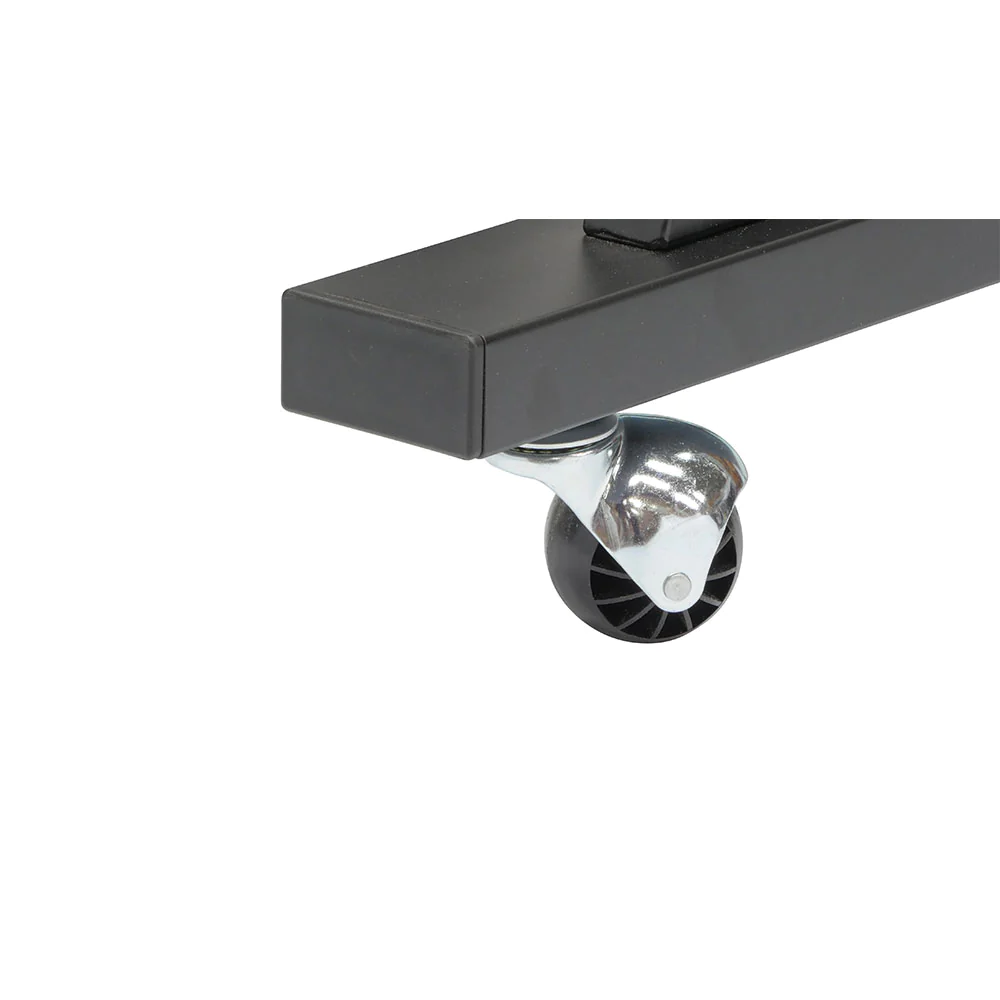

Wheels : 2 Ball Caster
US/CSA Approved : Yes
Decibel Reading : 76 d B(A) (@9.8ft)
Machine weight : 71Lbs
Shipping Weight : 77Lbs
Assembled Dimensions (L x W x H) : 29″ x 14.8″ x 50.4″
