Motor: 1.75HP, 100V, 14/7 Amp.
Recommended Breaker: 20 Amp.
Magnetic Starter: v
Min-Max Blade Width: 1/8"-1 1/4"
Resaw Capacity: 16"
Throat: 18 7/32"
Blade Length: 145"

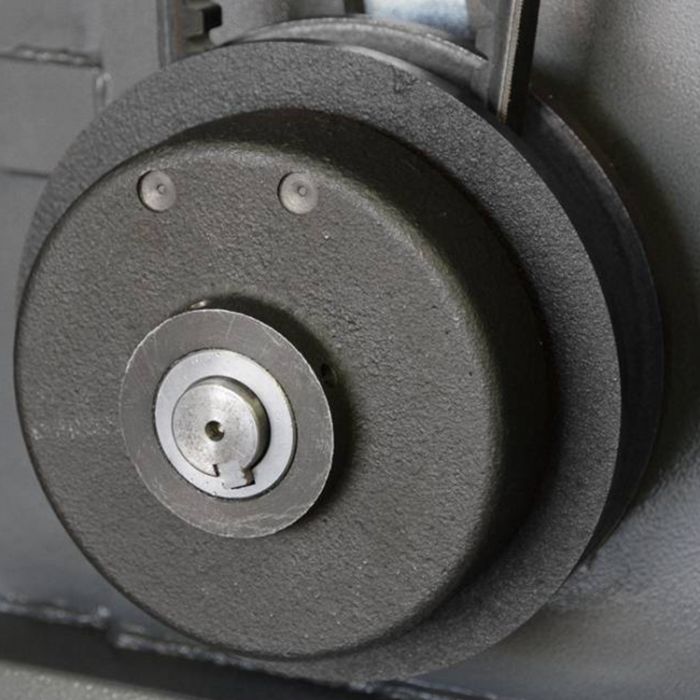

Disc-Brake with Micro Switch
110V Outlet on Back for Light
Window for Tension
Window for Tracking
Magnetic Blade Tension Guide
Worm Gear & Pinion Upper Guide
10 Point Laguna Ceramic Guides

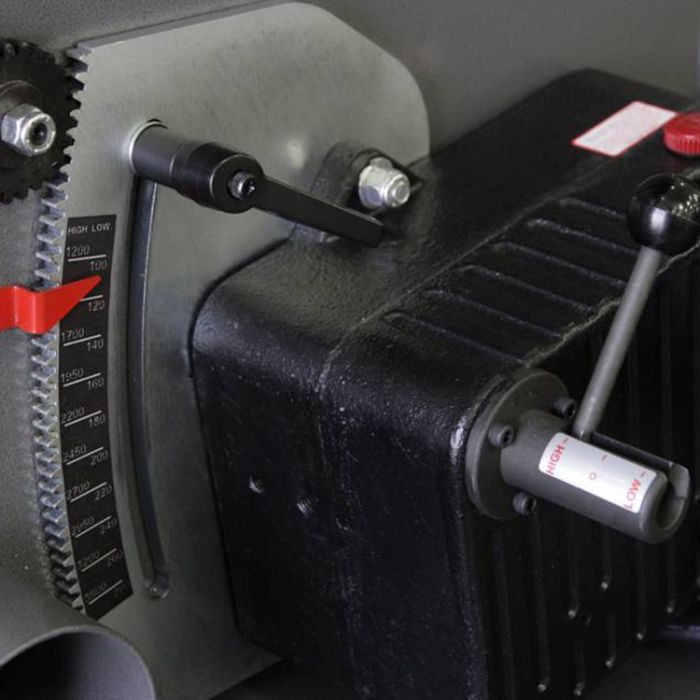

Mechanical Variable Speed Drive
Low Blade Speed: 100-290 FPM
High Blade Speed: 1200-3500 FPM
Anodized Insert w/Micro Adjustment
Dynamically Balanced Cast Iron Wheels
Urethane Single Piece Snap-on Tire
Cast Table Size: 20" x 26"
Table Tilt: -6°, +45°
Quick-Release Tension
Hi/Low Anodized Aluminum Fence: 22 3/4" x 7 1/4" x 11/16"
Table Height: 38"
Dust Ports: 2 x 4"
Overall Height: 77 3/4"
Dimensions, Base: 27" x 20"
Dimensions Overall: 38" x 36"
Dimensions Box: 82" x 34" x 36"
Weight (Net/Ship): 480/545 Lbs.
