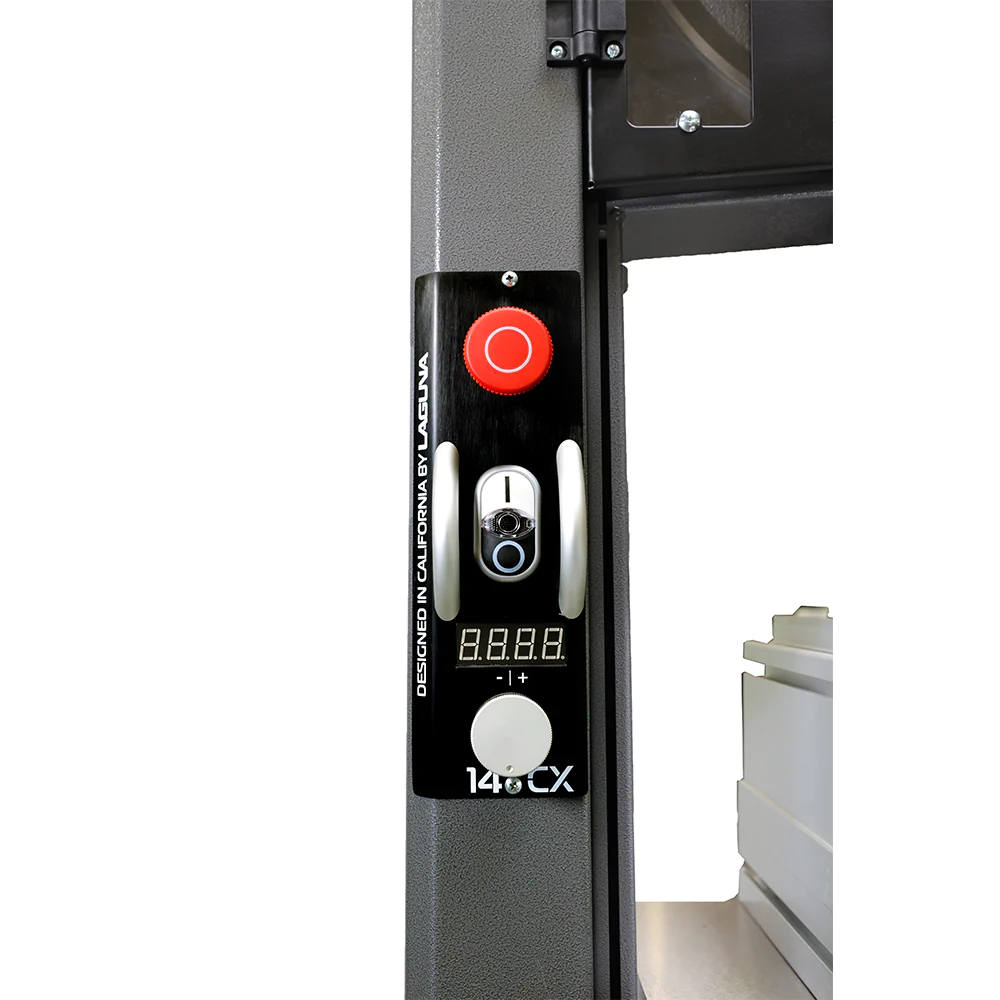

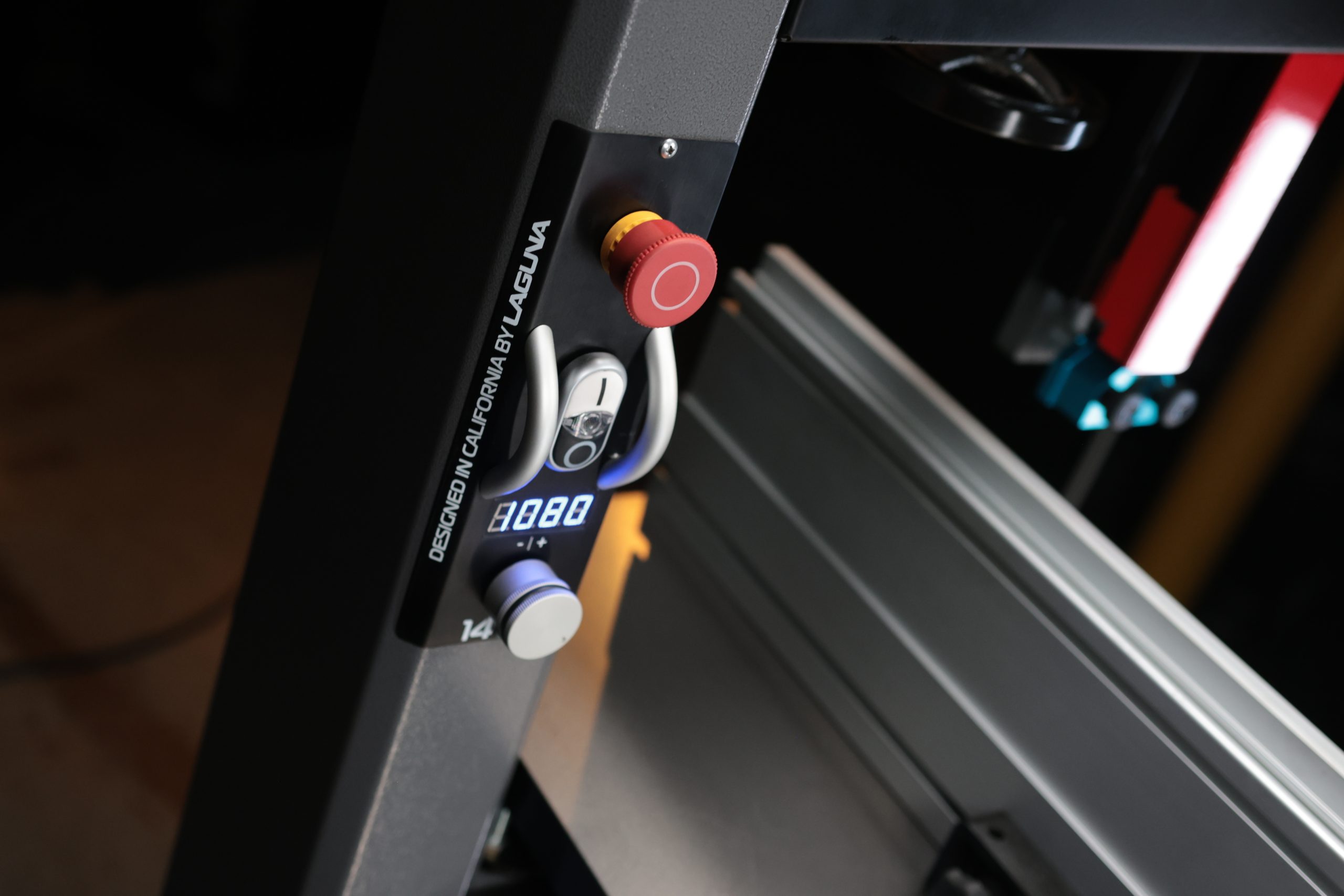

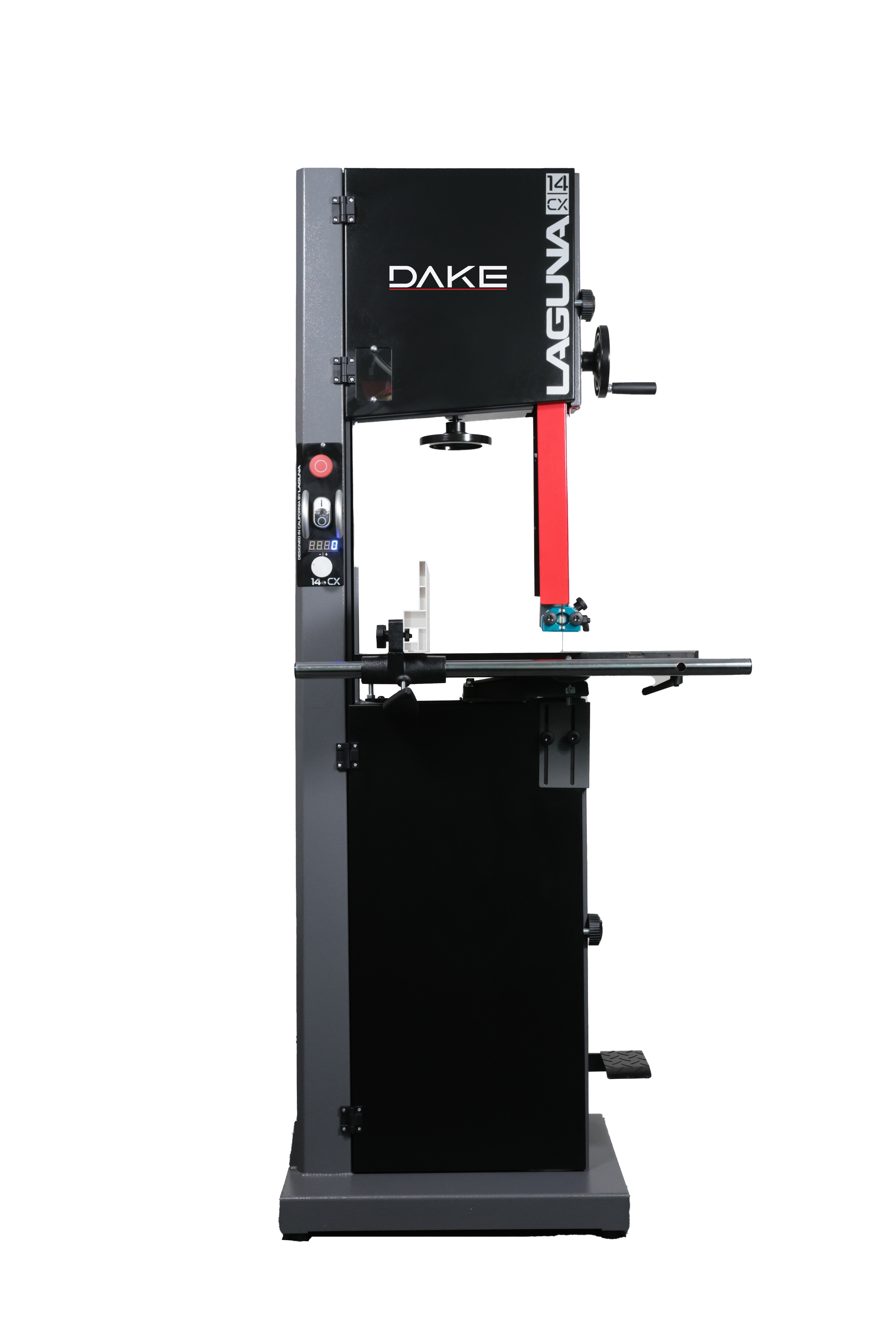

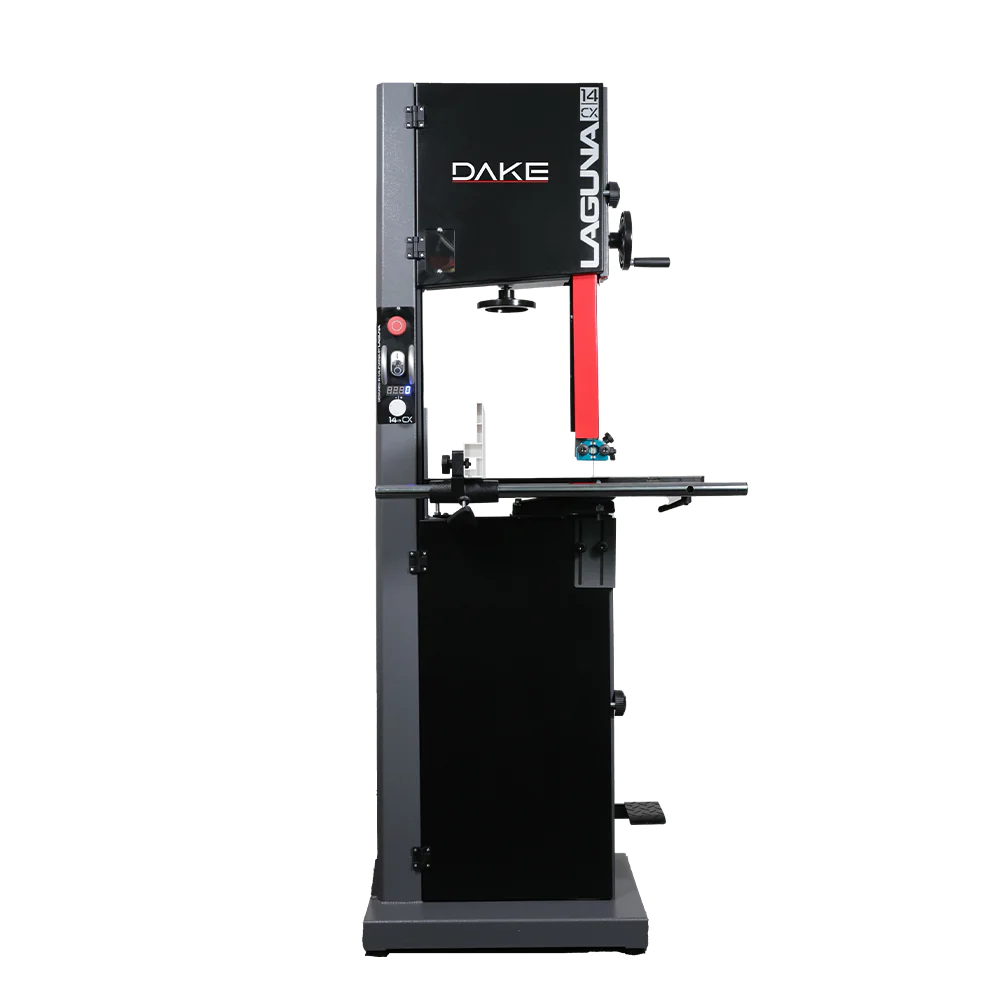

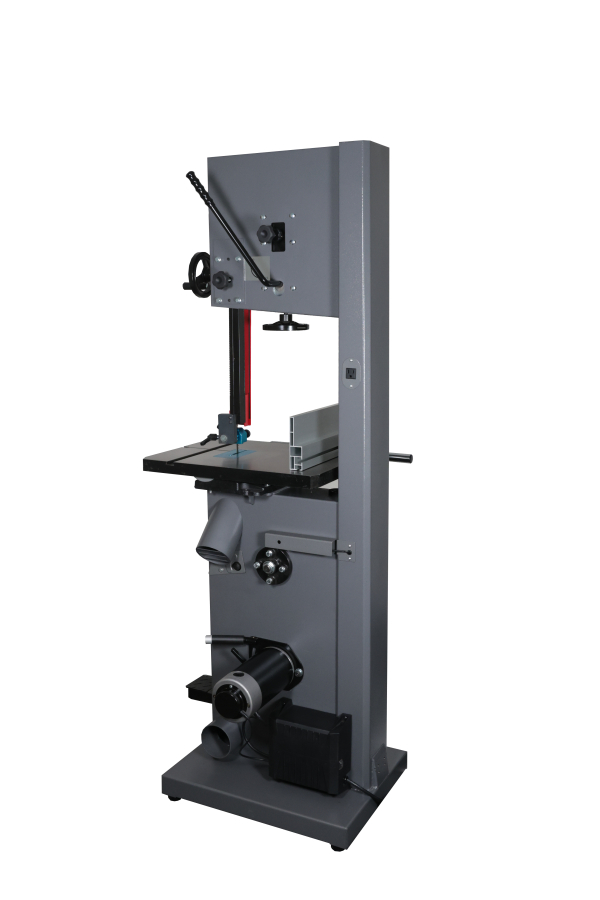

The 14CX combines the reliability and performance of our traditional woodworking bandsaws with new enhanced upgrades that now enables the cutting of ferrous metals. With the new addition of a Digital Readout paired with a Speed Control Knob, 2 Speed Pulley system, and electronic variable speed, you can now achieve precise blade speeds measured in Surface Feet Per Minute (SFPM) to use the 14CX in metalworking applications. These additions allow for efficient and accurate cutting results when cutting different materials, including steel, iron, stainless steel, and more.
In addition, the foot brake system on the 14CX has been improved with a larger brake disc, providing enhanced stopping power that ensures your safety and control during operation.
Comes standard with a Laguna Bi-Metal ½” x 10/14 Variable TPI Blade.

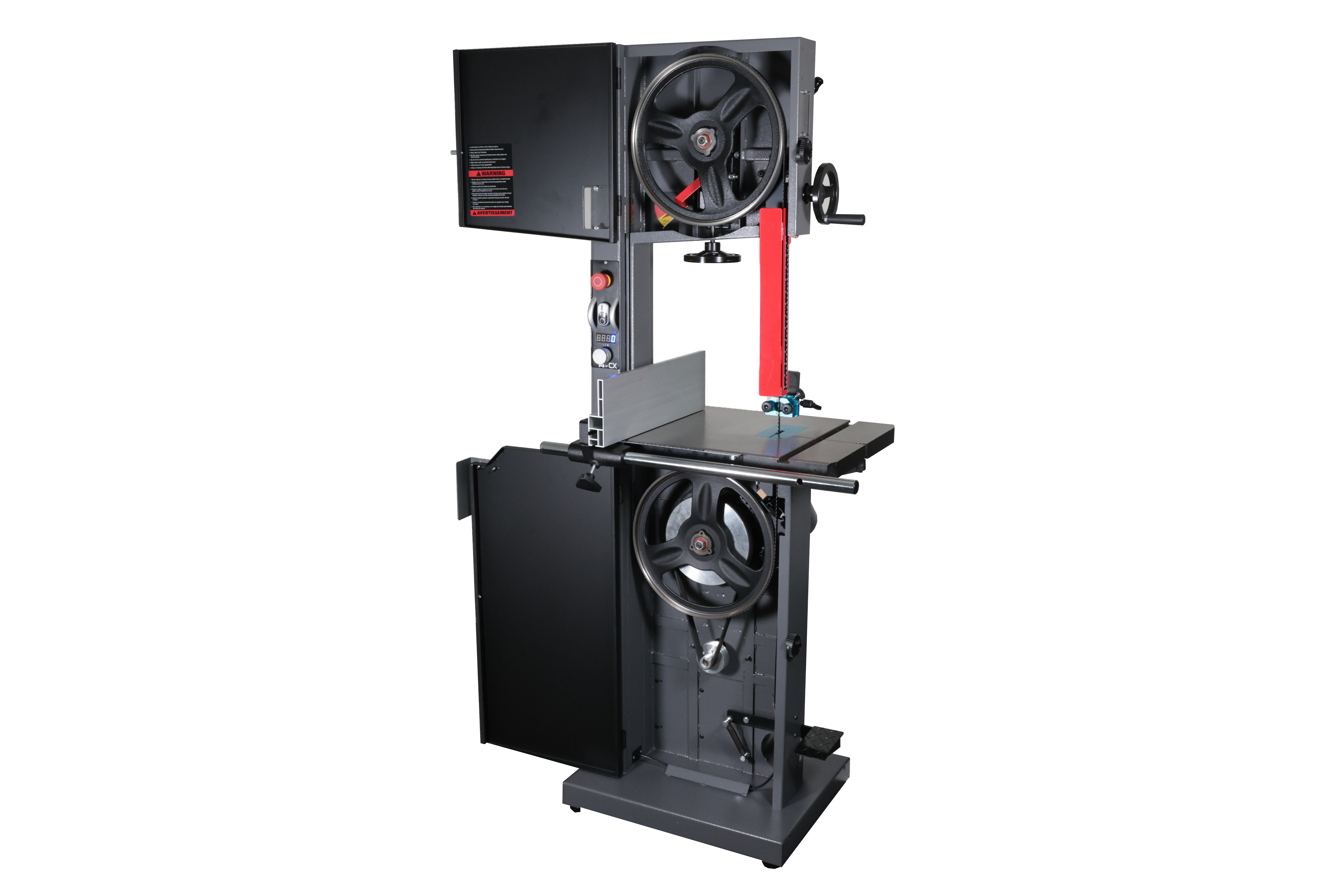

Cast-iron wheels are balanced and provide plenty of inertia to drive the blade through the material being cut
Oversized shafts with sealed bearings protect the flywheels
Laguna Ceramic Guides have a total of 10 contact points above and below the work piece for precise cuts. The ceramic inserts handle heat better than traditional metal bearings and are easily replaceable

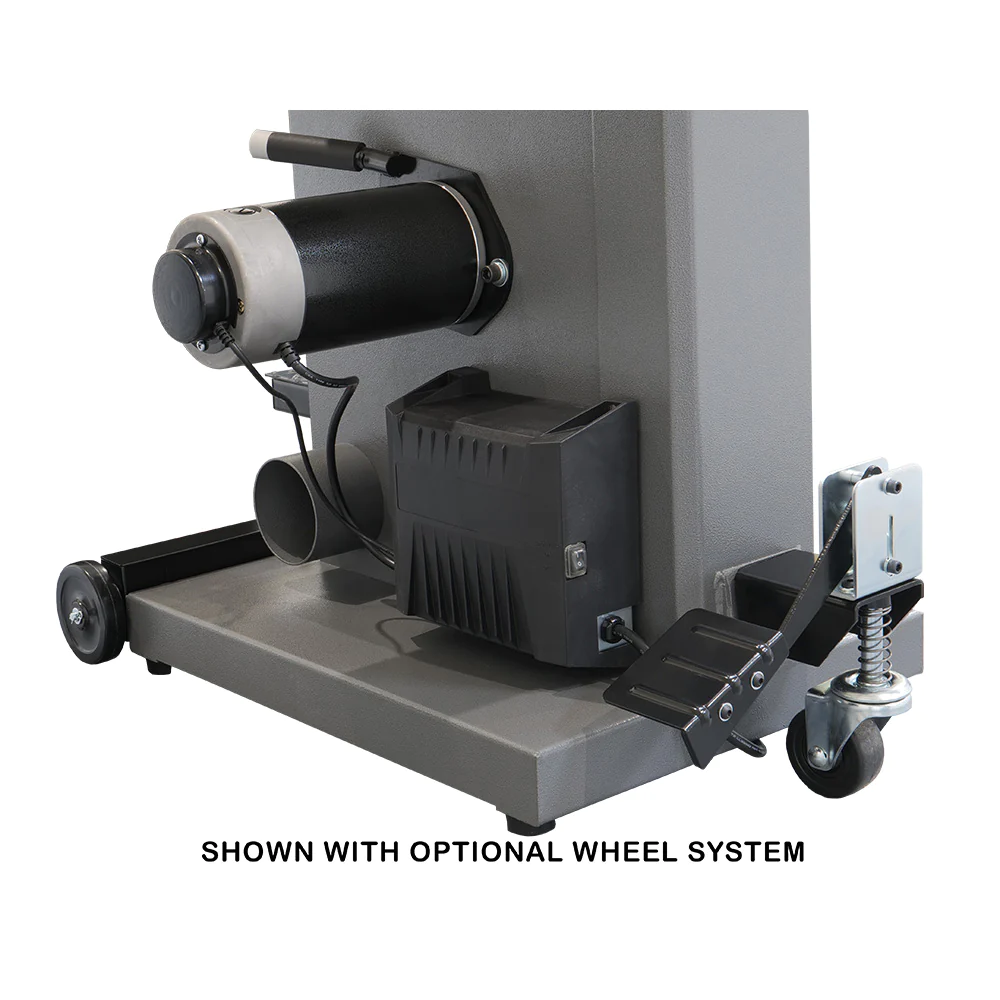

Foot brake system uses a larger brake disc to provide more stopping power to handle the higher speeds and additional inertia of the heavier pulleys

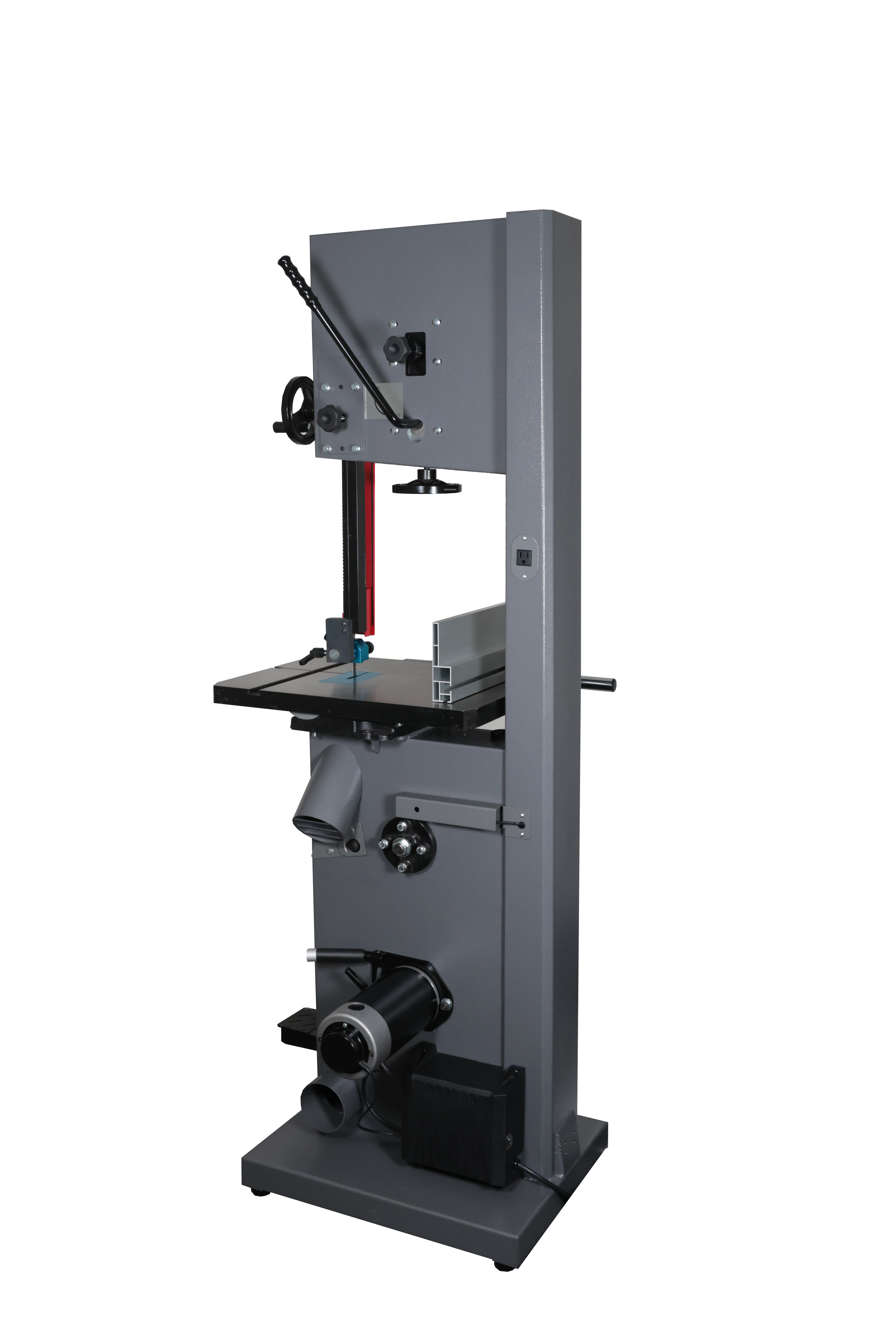

Dual dust collection ports provide collection just under the table surface and lower guides as well as collection at the bottom of the cabinet

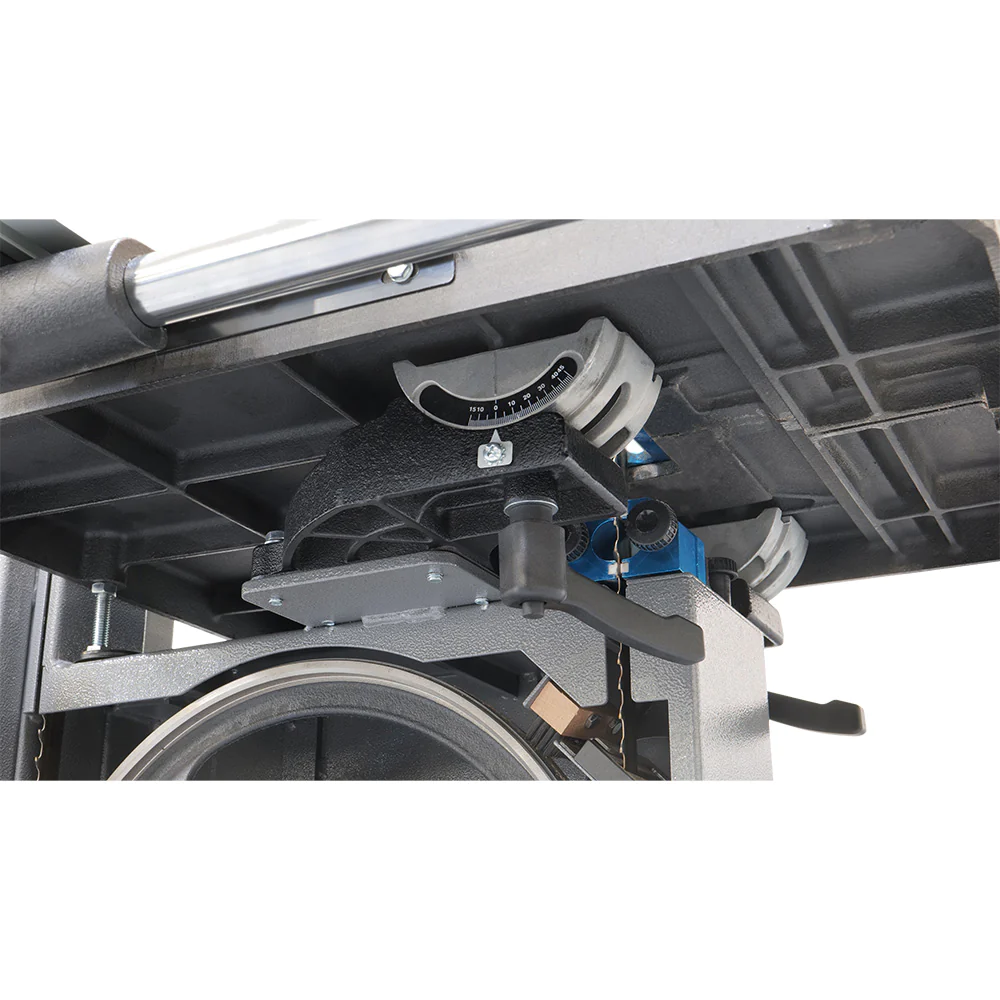

Table tilts both toward the inside and the outside of the saw to make accurate beveled cuts in a wide range of materials
Clear windows for easily setting blade tracking and tension
Magnetic tensioning indicator is easy to adjust to help accurately set blade tension for all types of blades

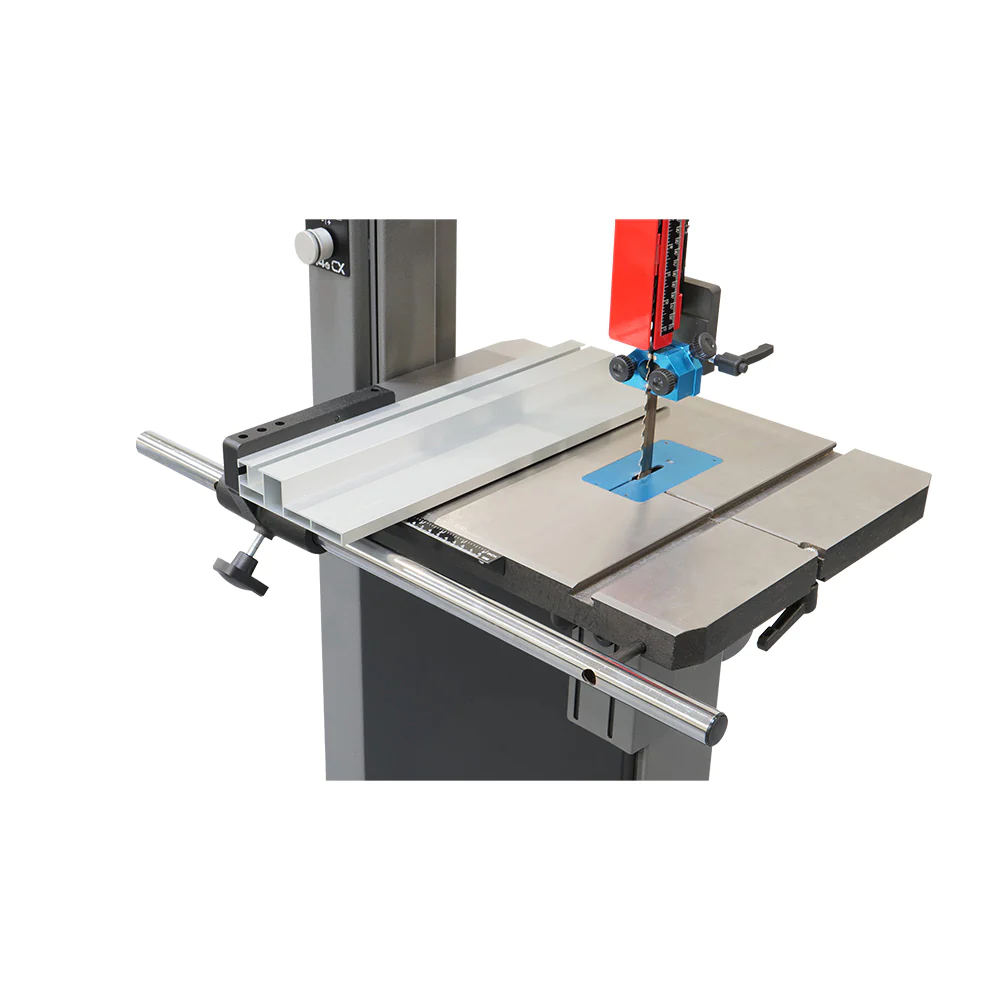

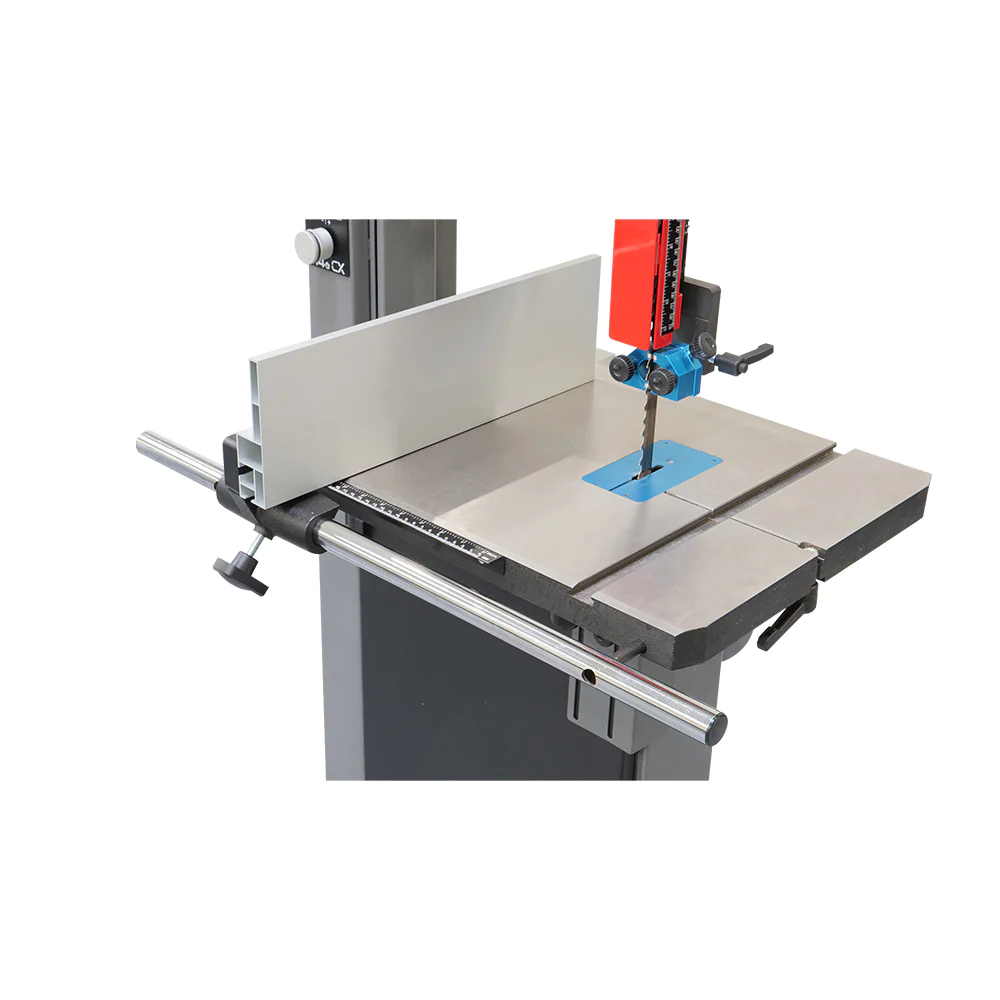

Hi/Low fence is easily changed from the High Position (used for resawing and most thicker materials) and the Low Position (used for thinner stock or when making thin cuts)
Blade tension set via convenient handwheel
Worm-drive rack and pinion upper guidepost is easily positioned and locked in place to fit the size of the materials being cut
Specs
Motor: 1.75hp
Input power: 110-120 Volt
Recommended breaker: 20 Amp
Motor input (inverter): 166 VDC
Throat: 13-5/8" (346 mm)
Cast iron table: 16" x 21.5" (406.4 x 546 mm)
Table tilt: -7° to +45°
Miter slot: 3/8" x 3/4" (9.5 x 19.1 mm)
Table height: 38" (965 mm)
Blade speed (high range): 160 – 4,400 ft./min
Blade speed (low range): 60 – 1,600 ft./min
Resaw capacity: 13" (330.2 mm)
Blade length: 115" (114-3/4" Min – 116" Max)
Max. blade width: 3/4" (19 mm)
Min. blade width: 1/8" (3 mm)*
Height: 70.5" (1,790 mm)
Machine dimensions (L x W): 29-3/4" x 28" (755 x 712 mm)
Base footprint: 22-11/16" x 17-9/16" (576 x 446 mm)
Dimensions w/ Mobility Kit (W x D): 36-5/8" x 28" (930 x 712 mm)
Base footprint w/ Mobility Kit: 33" x 20-1/2" (838 x 521 mm)
Weight: 258 lbs. (117 kg)
Shipping weight: 280 lbs. (127 kg)
Package size (L x W x H): 73-1/8" x 26-1/2" x 24-5/16"
